QFPA50-S Antenna
Ku-band high power horn array antenna
QFPA50-S Antenna
Ku-band high power horn array antenna

QFPA50-S Antenna

Ku-band high power horn array antenna

The QFPA50-S flat panel antenna is a new man-pack antenna that makes the QFPA50 lighter and easier to move.


It is lightweight and can be moved in a backpack or carrier, and it has a built-in battery to communicate freely. Many customers use flat panel antennas for emergency communication.

One button pointing is

possible with flat antenna

The QFPA50-S is a flat panel antenna that can be moved to a bare pack or vehicle and deployed and used in the field, and can be used as a one-click pointing.
25kg lightweight and low height small antenna for convenient movement.

Convenient network connection to

connect anywhere in the world

Easy and light travel to a bare pack bag or carrier. It is a communication terminal that allows convenient and secure communication for emergency communication at broadcast journalists or disaster sites.

3 minutes of service

via one button pointing

The QFPA50-S antenna can provide service within three minutes through one-click pointing, and can provide a hotspot zone by providing a Wi-Fi communication network.

The QFPA50-S flat panel antenna is a new man-pack antenna that makes the QFPA50 lighter and easier to move.


It is lightweight and can be moved in a backpack or carrier, and it has a built-in battery to communicate freely. Many customers use flat panel antennas for emergency communication.

One button pointing is

possible with flat antenna


The QFPA50-S is a flat panel antenna that can be moved to a bare pack or vehicle and deployed and used in the field, and can be used as a one-click pointing.

25kg lightweight and low height small antenna for convenient movement.

Convenient network connection to

connect anywhere in the world


Easy and light travel to a bare pack bag or carrier. It is a communication terminal that allows convenient and secure communication for emergency communication at broadcast journalists or disaster sites.

3 minutes of service

via one button pointing


The QFPA50-S antenna can provide service within three minutes through one-click pointing, and can provide a hotspot zone by providing a Wi-Fi communication network.

RELATED RESOURCES

KONET PRODUCTS

VIDEOS

KONET QFPA50

Play video

KONET QFPA50 Unlimited

Play video

KONET QFPA50 Demo

Play video

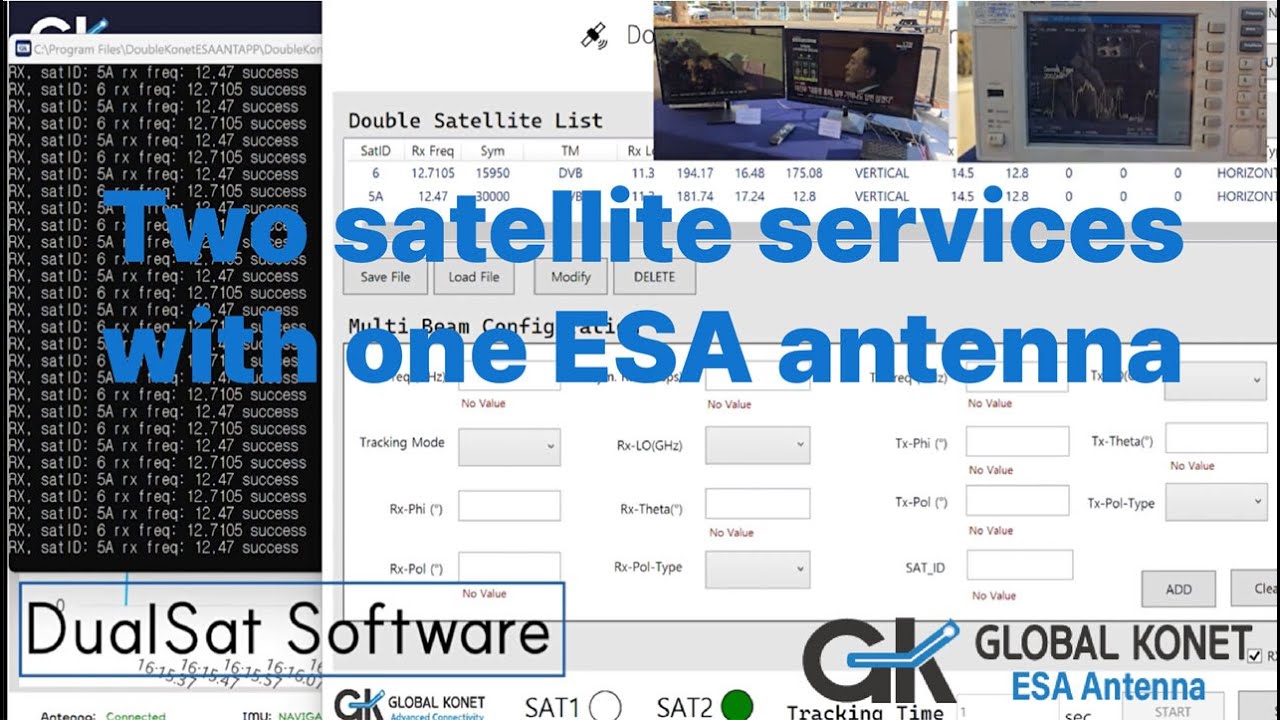

Dualsat Live demo

Play video

2024 Washington Satellite Show

Play video

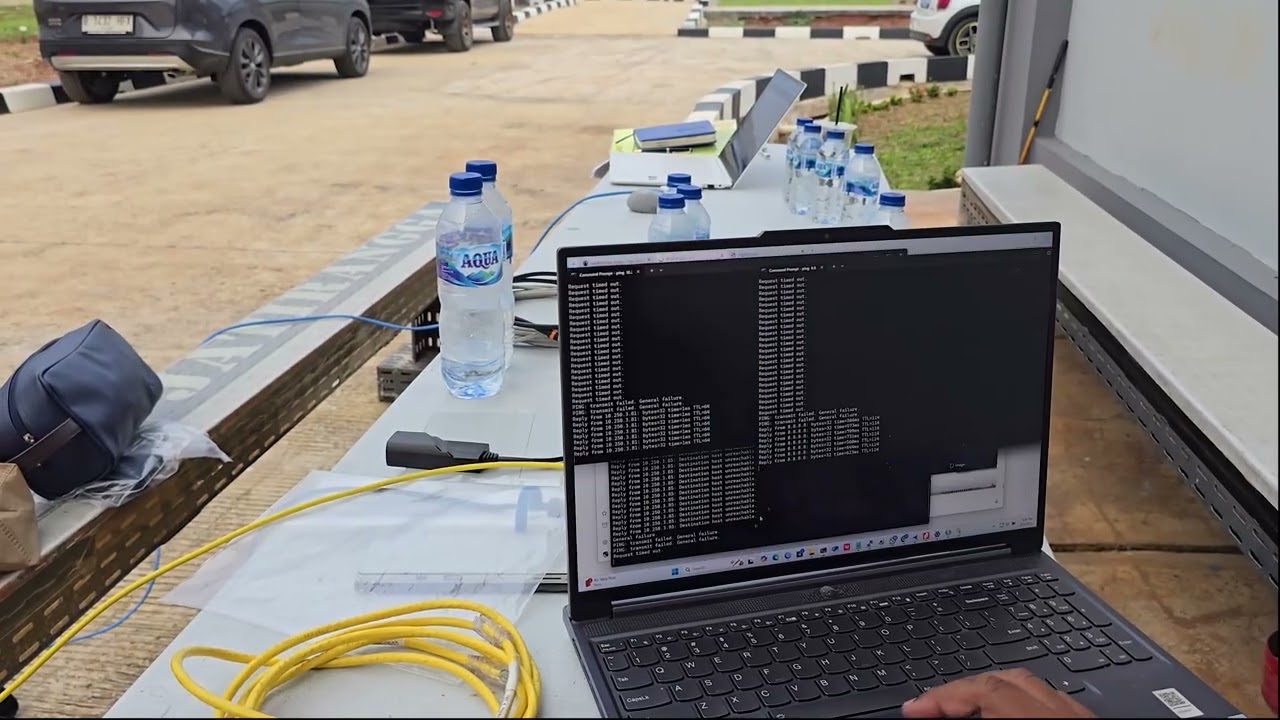

MiNi ESA Antenna Field Test

Play video

iDirect IQ200 and GK ESA Integration Procedure

Play video

Basic information

•  Model : QFPA50-S

•  Satellite Band : GEO Ku Band

•  Frequency Range : TX: 14.00 ~ 14.50GHz

                                      RX: 12.25 ~ 12.75GHz

Performance Value

•  G/T : ≥-15dBW@12.75Ghz@0º

•  STOP Method : Static Beam Scan

Beam Scanning information

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 30° ~ 90°

•  Polarization : Linear Polarization

•  Cross Polarization : ≤33dB/K@90°

•  Tracking Speed : 30°/sec

•  Tracking Accuracy : ≤0.2°

Operating Value

•  Initial dynamic satellite acquisition :  ≤3 min

•  Rated Voltage : VDC 24V

•  Weight : ≤25kg

•  Operation Temperature : -20℃ ~ +55℃

RELATED RESOURCES

RELATED

PRODUCTS

VIDEO

Play video
Play video

KONET Mpack2

KONET Mpack2

Related Solutions

Portable

Basic information

Performance Value

•  Model : QFPA50-S

•  Satellite Band : GEO Ku Band

•  Frequency Range : TX : 14 ~ 14.5GHz

                                      RX : 12.25 ~ 12.75GHz

•  EIRP (typical) : Linear : ≥ 49.5dBW@90º@14.1GHz

                              Circular : ≥ 47dBW@90º@14.1GHz

•  G/T : ≥ 12.7dB/K@12.75GHz@80K

•  FSD Side Load : ≤ 22dB

•  STOP Method : Static Beam Scan

•  Satellite Tracking : Auto Tracking, Manual Tracking

•  Sat Modem : OpenAMIP Support

Beam Scanning information

Operating Value

•  Scanning Range : Azimuth : 0° ~ 360°, Elevation 30° ~ 90°

•  Polarization : Linear Polarization

•  Cross Polarization : ≤ 33dB/K@90°

•  Tracking Speed : 30°/sec

•  Tracking Accuracy : ≤ 0.2°

•  Tracking Speed : 110°/sec

•  Tracking Accuracy : 0.2°

•  Acquisition time from cold start : < 60 sec

•  Reacquisition time : ≦ 5 sec

•  Initial dynamic satellite acquisition : ≤ 3min

•  MAX Power : 24V(19V ~ 31V)

•  Weight : ≤ 25kg(55.1lbs)

•  Dimensions : ≤ 505 x 449 x 303mm(19.9 x 17.7 x 11.9inch)

•  Operation Temperature : -40℃ ~ +55℃
