MiNi ESA Antenna
MiNi ESA Antenna

MiNi ESA Antenna

Ultra-Compact and Lightweight Design

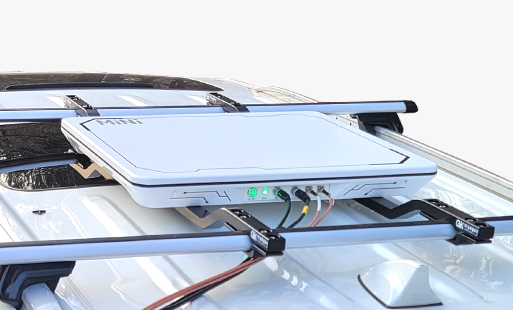

Its extremely small and light form factor imposes virtually no limitations on installation space. The antenna can be easily installed on vehicles and vessels, and on the ground, a elevation adjustment kit ensures optimal performance

Full-duplex Electronically Steered Array (ESA) Antenna


It simultaneously handles transmission and reception (Full-Duplex) and tracks satellites at ultra-high speeds without mechanical driving parts.This design maintains a stable, two-way link even in highly turbulent environments.

High Performance & Reliability

Despite its compact size and 11 kg weight, the unit is engineered to MIL-grade durability, ensuring stable operation even in harsh environments up to 60 °C. The IP66 protection rating provides strong resistance against dust and water, delivering high reliability for demanding field applications



Built-in Modem and One-Box Solution


With an integrated modem board and OpenAMIP-based modem interface, the system completes service setup automatically with no additional configuration after installation. Built-in Wi-Fi support enables seamless wireless connectivity for field operations.

MiNi ESA is an electronic beam steering antenna that has been proven for export worldwide, boasting stable performance and strong power output.

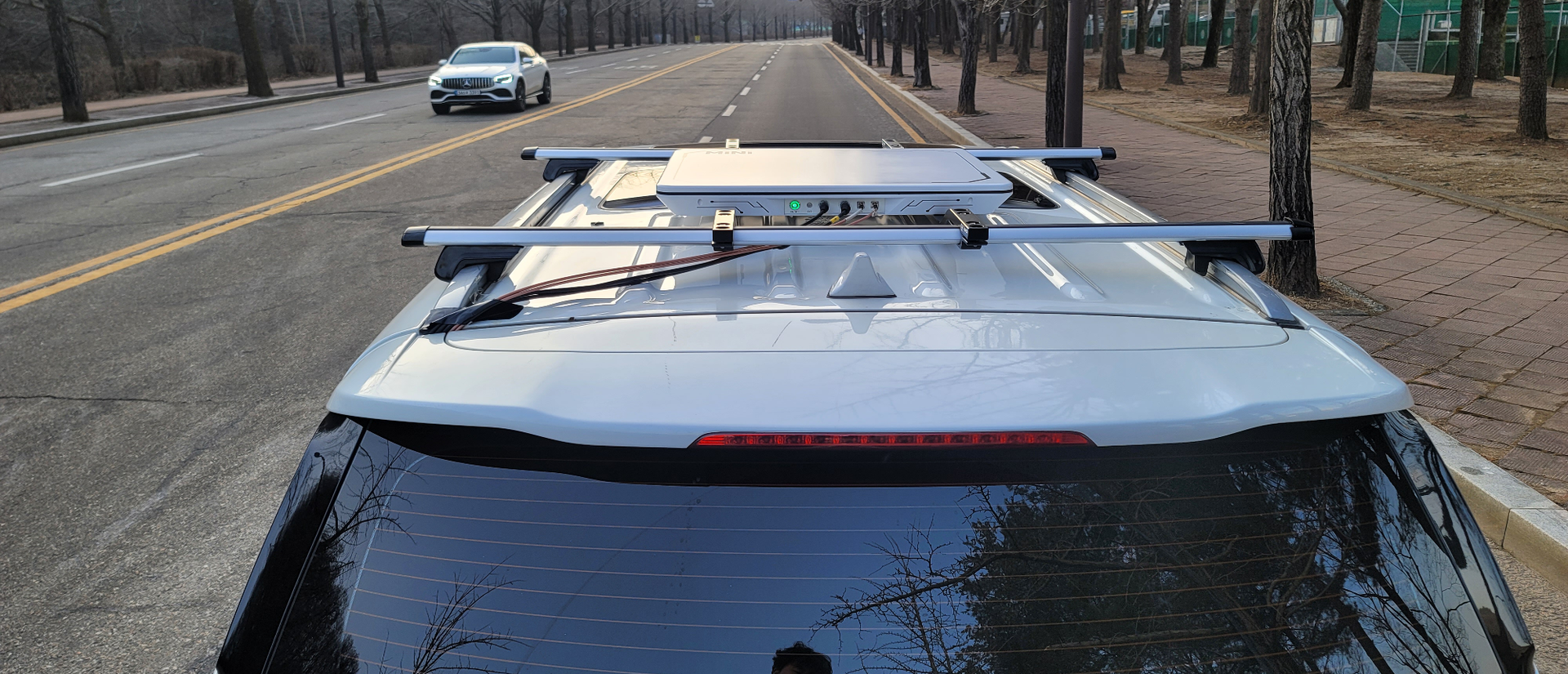

MiNi ESA antenna features an EIRP of 44.2 dBW and a G/T of 10.1 dB/K, which is usable for geostationary satellites (GEO). It proves that OTM services are possible while on the move, and is used on SUV and ships.

Ultra-Compact and Lightweight Design


Its extremely small and light form factor imposes virtually no limitations on installation space. The antenna can be easily installed on vehicles and vessels, and on the ground, a elevation adjustment kit ensures optimal performance.


Full-duplex Electronically Steered Array (ESA) Antenna


It simultaneously handles transmission and reception (Full-Duplex) and tracks satellites at ultra-high speeds without mechanical driving parts.This design maintains a stable, two-way link even in highly turbulent environments.


High Performance & Reliability

Despite its compact size and 11 kg weight, the unit is engineered to MIL-grade durability, ensuring stable operation even in harsh environments up to 60 °C. The IP66 protection rating provides strong resistance against dust and water, delivering high reliability for demanding field applications

Built-in Modem and One-Box Solution



With an integrated modem board and OpenAMIP-based modem interface, the system completes service setup automatically with no additional configuration after installation. Built-in Wi-Fi support enables seamless wireless connectivity for field operations



RELATED RESOURCES

KONET PRODUCTS

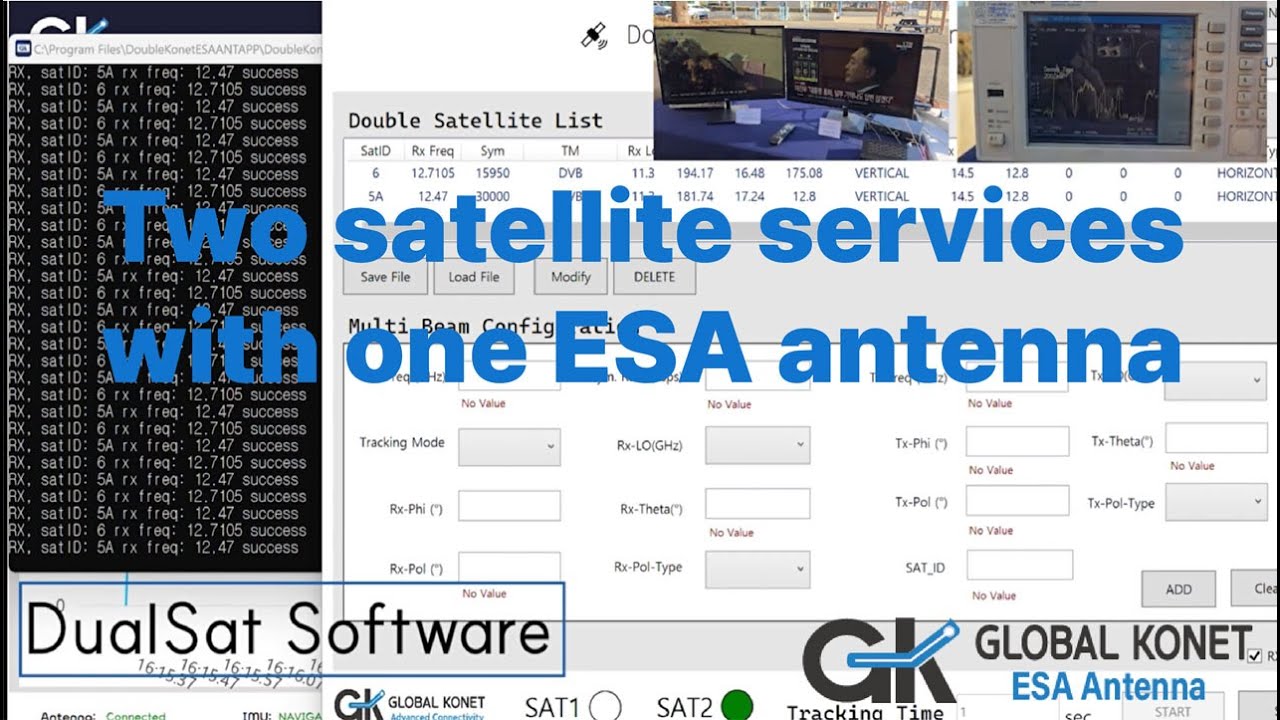

VIDEOS

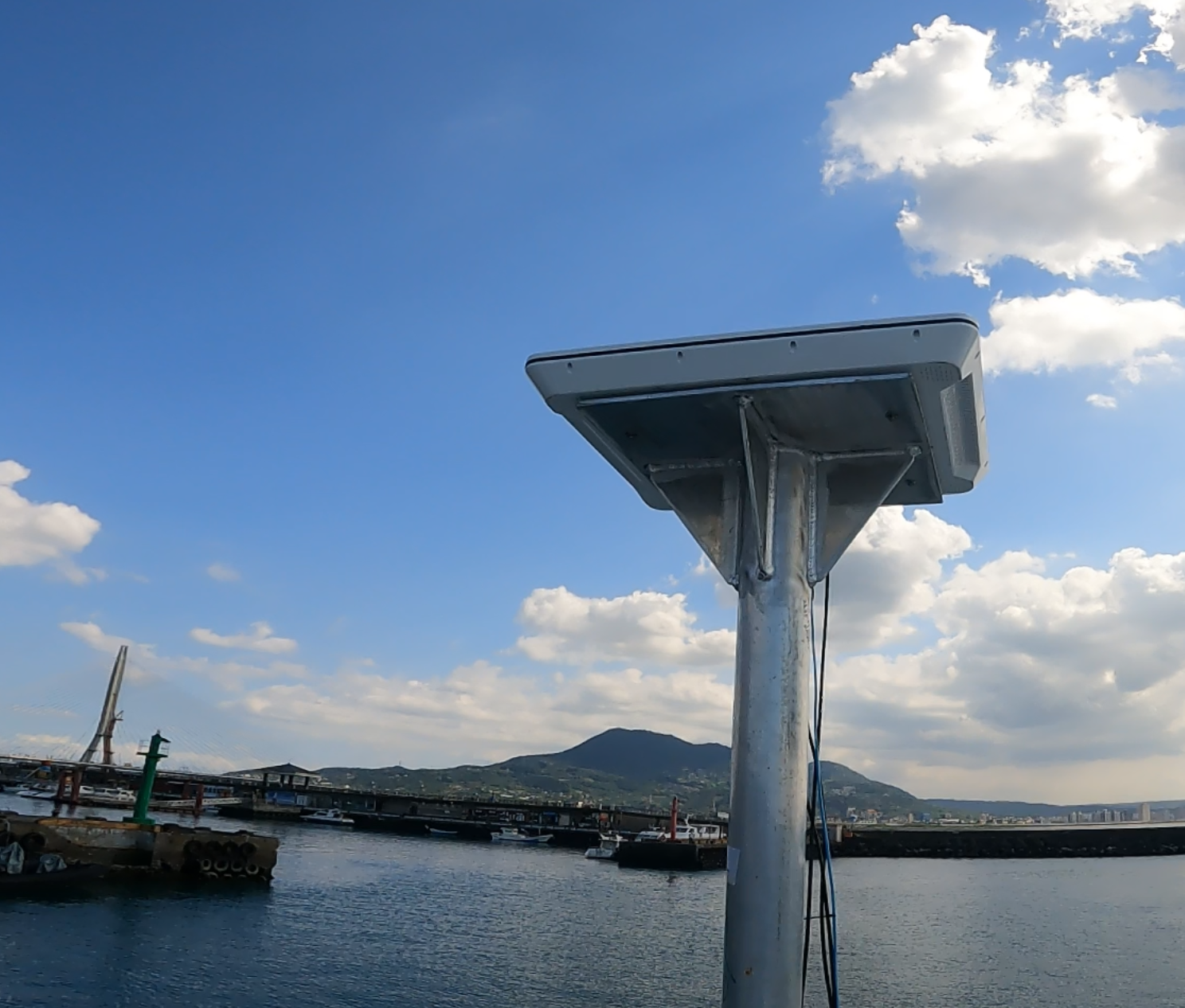

MiNi ESA Antenna Field Test

Global Konet MiNi flat-panel ESA antenna drone simulation test

iDirect IQ200 and GK ESA Integration Procedure

Alpha2 Jumbo ESA shows stable GEO COTM – Koreasat 5A

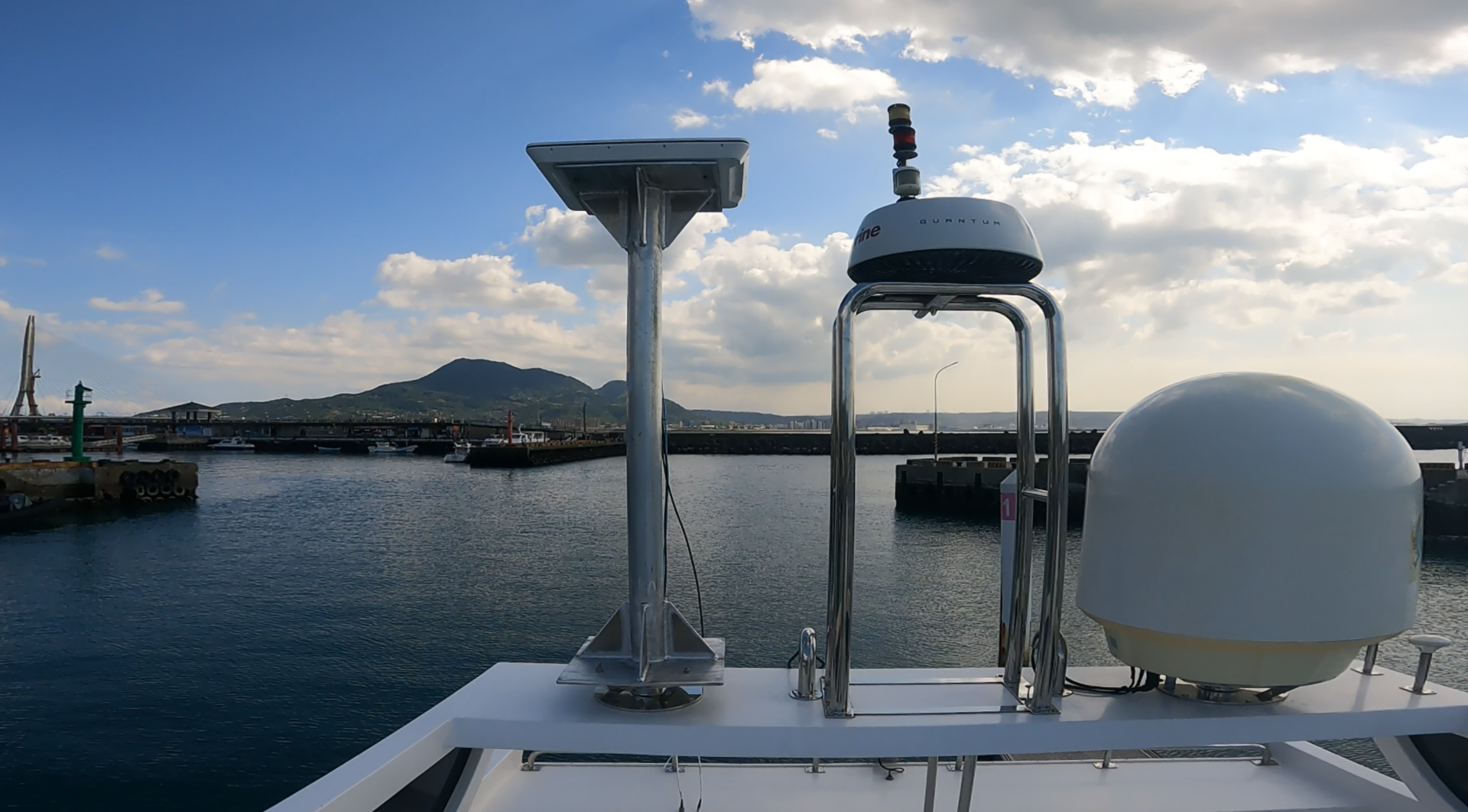

Coast Guard live YouTube via Alpha2 during U-turn

Antenna Spec

• Model Name : MiNi (GU320) / GU320M (Military)

• Antenna Type : Active Phased Electronically Steered Array Antenna

•  Frequency : TX : 13.7–14.5 GHz, RX : 10.7–12.75 GHz

•  Scanning Range : Azimuth: 0º–360º   Elevation: 30º –90º

•  Size (W x D x H) : 613 mm × 500 mm × 77 mm

                                  (24.14 × 19.69 ×  3.03 inch)

•  Weight : ≤ 11 kg (24.25 lbs)

Ant Transmit/Receive Performance

•  EIRP (Typical) : Linear : ≥ 44.2 dBW @ 90º @ 14.1 GHz

•  G/T (Typical) : ≥ 10.1 dB/K @ 90º @ 11.7 GHz @ 80 K

•  Polarization : Linear H/V POL
•  Cross Polarization : ≥ 30 dB

•  Satellite Tracking : DVB-S2 / DVB-S2X Carrier Detection

•  Tracking Mode : SOTM, SOTP, Manual Mode

•  Communication Mode : Full Duplex

•  Modem : Built-in iDirect, Comtech UHP modem (Option)

Interface Features

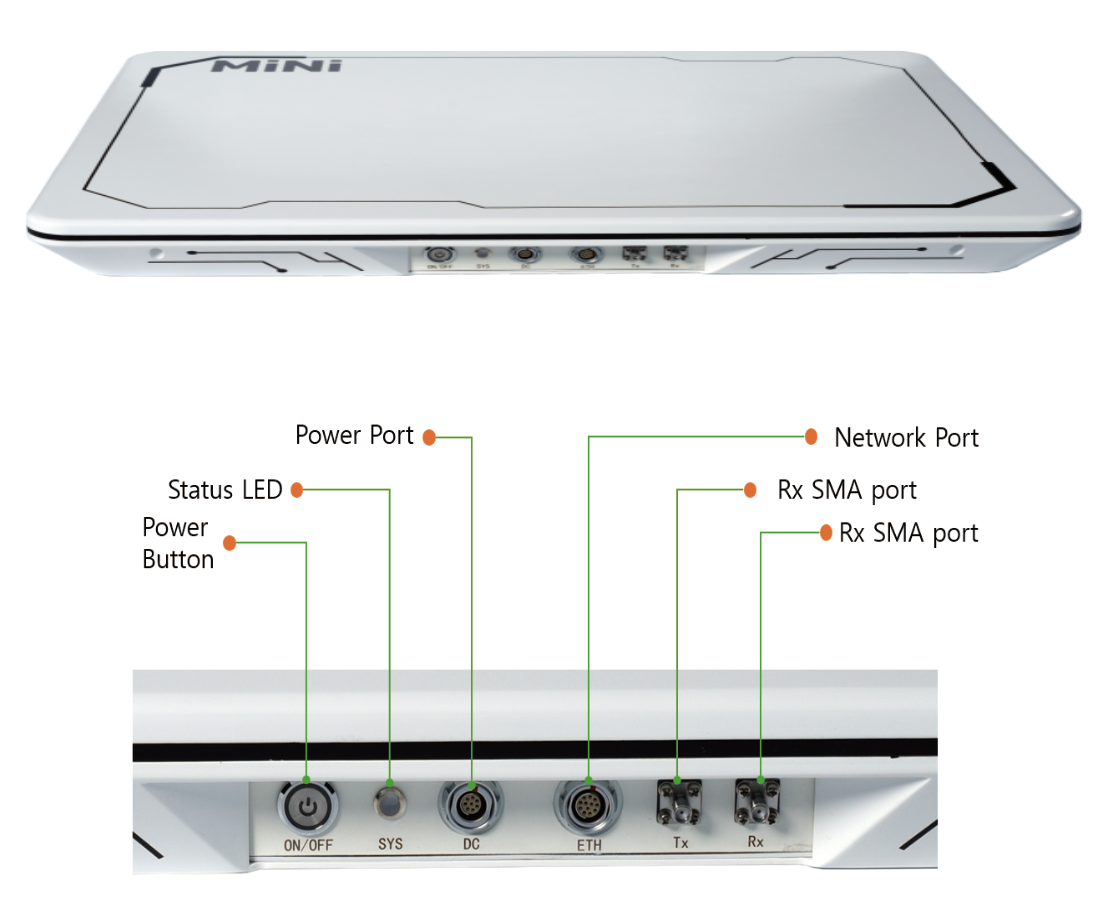

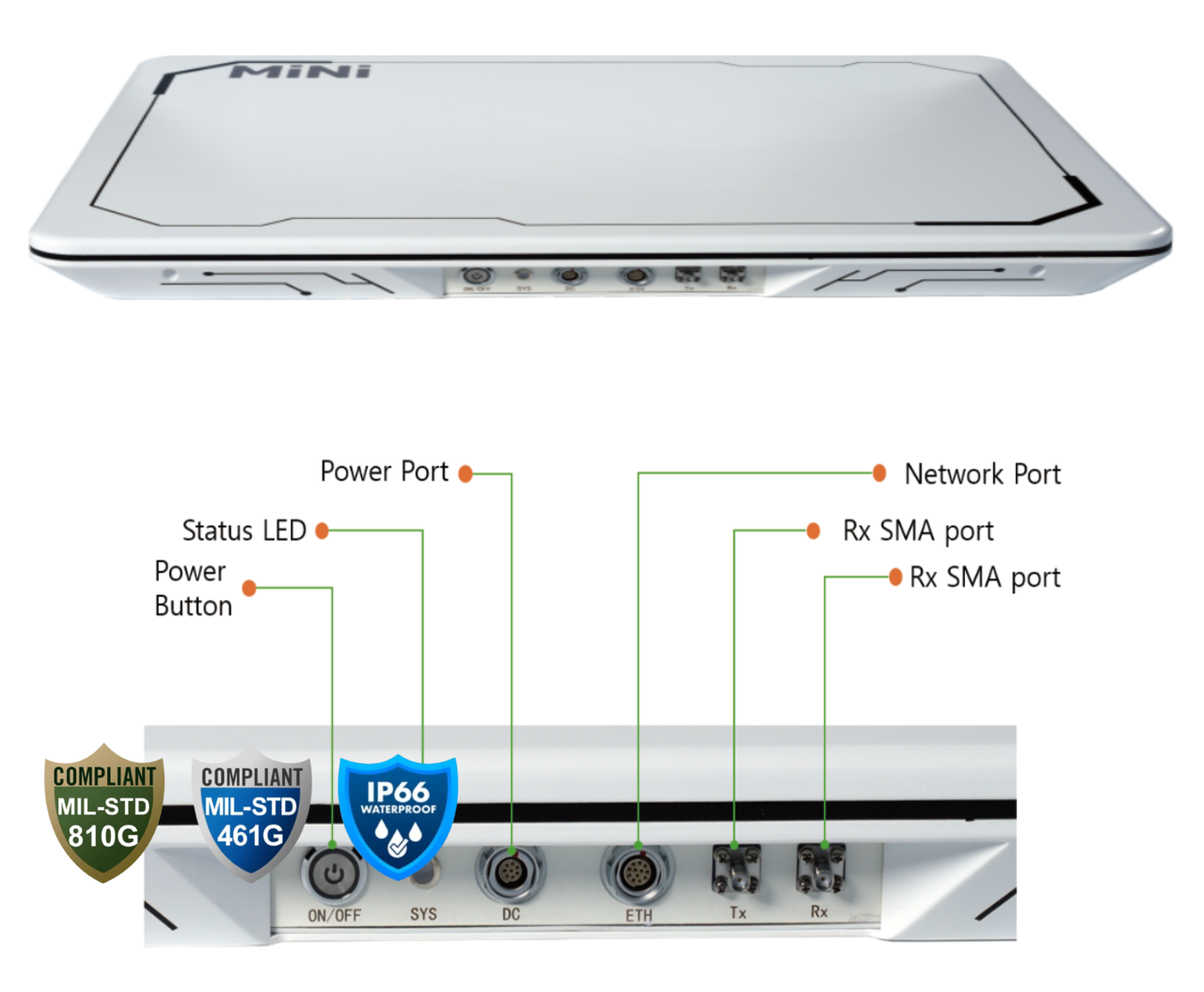

•  Interface Ports : POWER, LAN Port, RF (SMA) port, GPS (SMA) port

•  Contol interface : Ethernet RJ45, WiFi (Option)

Power Supply Requirement

•  Rated Voltage : 28 V (24–31 V)

•  Power Consumption : ≤ 300 Watt (Peak)

Ant environmental performance

•  Operating Temp : -40ºC – +60ºC

•  Water-proof : IP66

•  Military Standard : MIL-STD-810G (GU320M)
•  Local Oscillator Frequency : TX: 12.8 / 13.05 GHz

                                                 RX: 9.75 / 10.6 / 11.3 GHz

•  10 MHz Reference : TX port requires 10 MHz.
