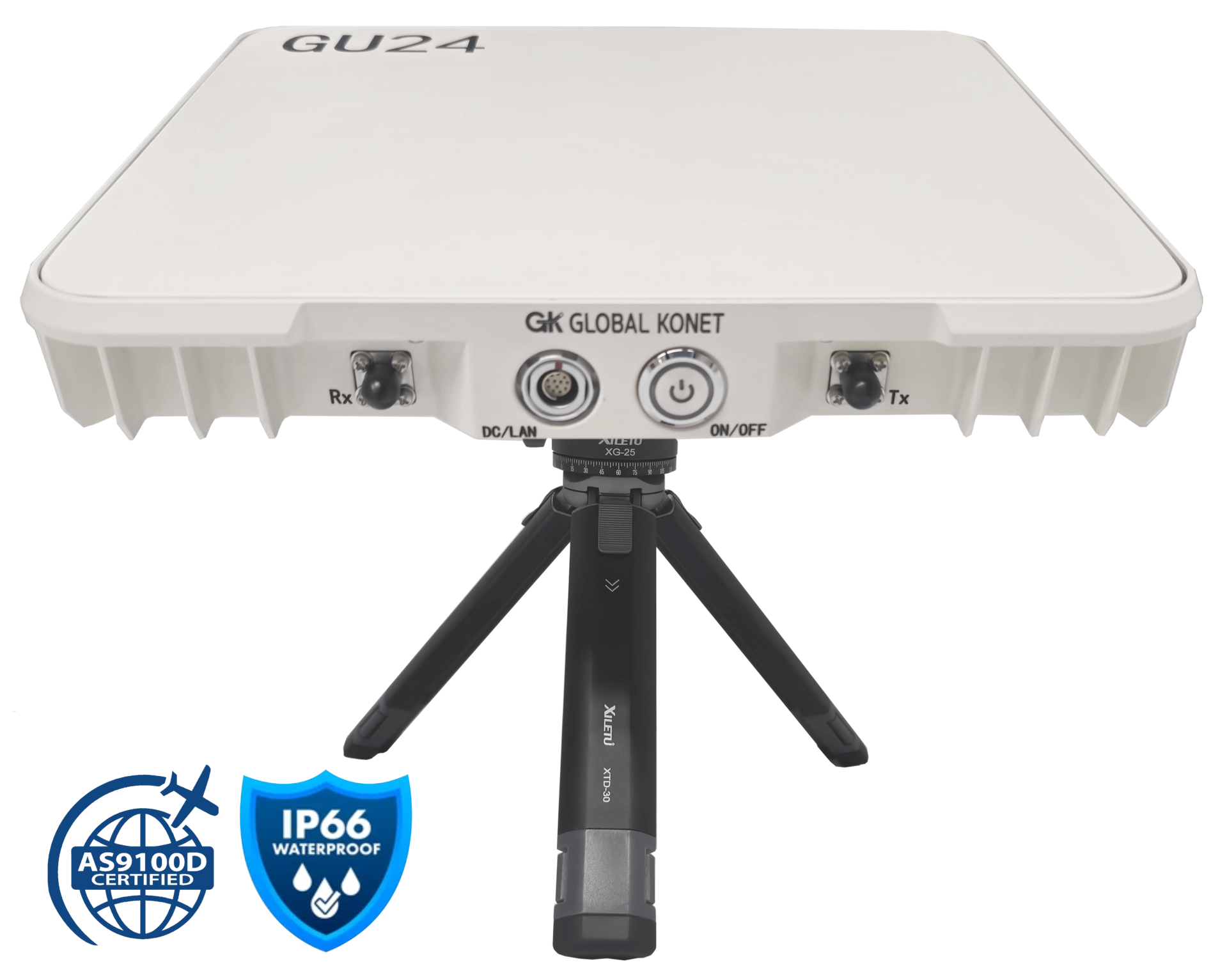

GU24 ESA Terminal
GU24 ESA Terminal

Ku Band GU24 Terminal

Ku-band compact size OTM mobile communication service, maritime satellite phone, Internet service provided

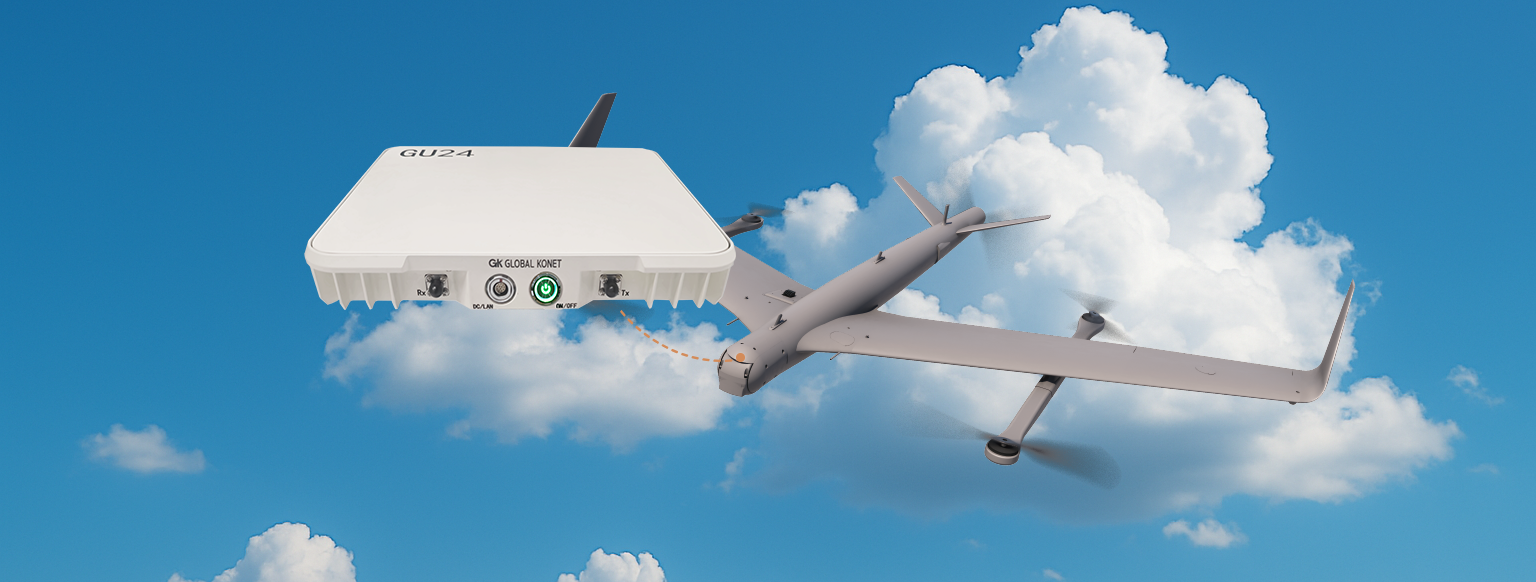

The GU24 terminal is increasingly being used for a variety of purposes in LEO/MEO/GEO multi-orbit. Drone/Unmanned vessel/Mobility application

One Box Solution


Perfect-sized GU24 terminal products offer OTM functionality to provide a solution that can provide fast, large-capacity service anywhere in the world with bare-pack/vehicle/ship/mobile communication.

Full-Duplex GU24 OTM Terminal

It can be used on GEO satellites and LEO satellites in compact size, so it transmits and receives at the same time

The GU24 OTM ESA terminal enables simultaneous transmission and reception using full-duplex methods to maximize data transmission rates. This eliminates the delay between data transmission and reception and improves bandwidth utilization efficiency in bidirectional communications.

Simultaneous transmission and reception allow for faster processing of more data. This is especially beneficial when large amounts of data communication are required, such as high-speed Internet, real-time streaming, and high-resolution video transmission.

Full-duplex ESA antennas have high compatibility with next-generation communication technologies (e.g., 5G and 6G). Since these technologies require high-speed data transfer and low latency, full-duplex methods are essential.

The Importance of GU24 Terminals in Reducing Marine Communication Costs

Now you don't need an expensive satellite phone costing tens of thousands of dollars for satellite phone or internet.


With GU24, you can use internet service and phone service at the same time, and you can find your location in real time with the Navigator service linked to GPS.


We hope you experience cheap, convenient, and fast internet service from anywhere in the world.

Electronic beam adjustment without traditional mechanical motors

ESA antennas without mechanical motors have no moving parts to avoid mechanical problems such as wear, failure, and maintenance, which greatly improves the reliability and longevity of the antennas.


Electronic beam adjustment is much faster than mechanical motors. It is an important advantage in multi-satellite tracking, etc. Fast response speed minimizes communication delays and maximizes efficiency.


 Electronic control enables very precise beam adjustment. This allows accurate control of the direction and intensity of the signal, minimizing interference and improving communication quality.

The GU24 terminal is increasingly being used for a variety of purposes in LEO/MEO/GEO multi-orbit. Drone/Unmanned vessel/Mobility application

One Box Solution


Perfect-sized GU24 terminal products offer OTM functionality to provide a solution that can provide fast, large-capacity service anywhere in the world with bare-pack/vehicle/ship/mobile communication.

Full-Duplex GU24 OTM Terminal

It can be used on GEO satellites and LEO satellites in compact size, so it transmits and receives at the same time


The GU24 OTM ESA terminal enables simultaneous transmission and reception using full-duplex methods to maximize data transmission rates. This eliminates the delay between data transmission and reception and improves bandwidth utilization efficiency in bidirectional communications.

Simultaneous transmission and reception allow for faster processing of more data. This is especially beneficial when large amounts of data communication are required, such as high-speed Internet, real-time streaming, and high-resolution video transmission.

Full-duplex ESA antennas have high compatibility with next-generation communication technologies (e.g., 5G and 6G). Since these technologies require high-speed data transfer and low latency, full-duplex methods are essential.

The Importance of GU24 Terminals in Reducing Marine Communication Costs


Now you don't need an expensive satellite phone costing tens of thousands of dollars for satellite phone or internet.


With GU24, you can use internet service and phone service at the same time, and you can find your location in real time with the Navigator service linked to GPS.


We hope you experience cheap, convenient, and fast internet service from anywhere in the world.

Electronic beam adjustment without traditional mechanical motors


ESA antennas without mechanical motors have no moving parts to avoid mechanical problems such as wear, failure, and maintenance, which greatly improves the reliability and longevity of the antennas.


Electronic beam adjustment is much faster than mechanical motors. It is an important advantage in multi-satellite tracking, etc. Fast response speed minimizes communication delays and maximizes efficiency.


 Electronic control enables very precise beam adjustment. This allows accurate control of the direction and intensity of the signal, minimizing interference and improving communication quality.

RELATED RESOURCES

KONET PRODUCTS

VIDEOS

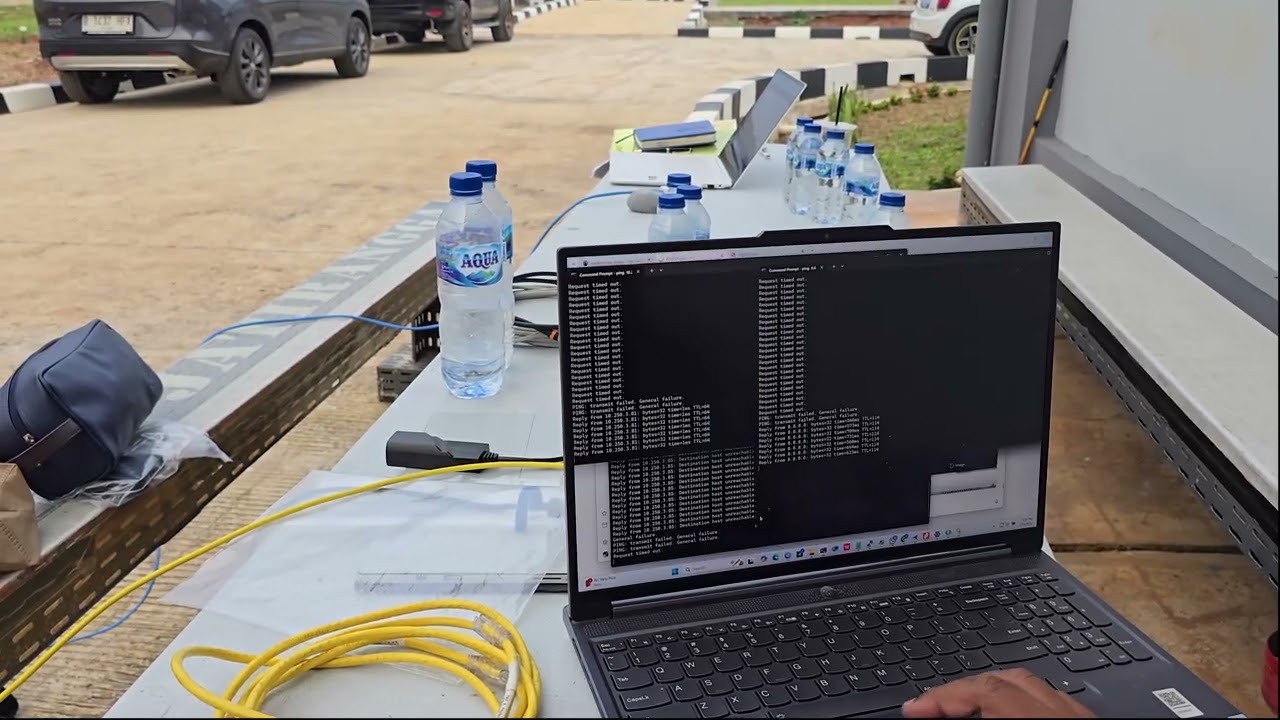

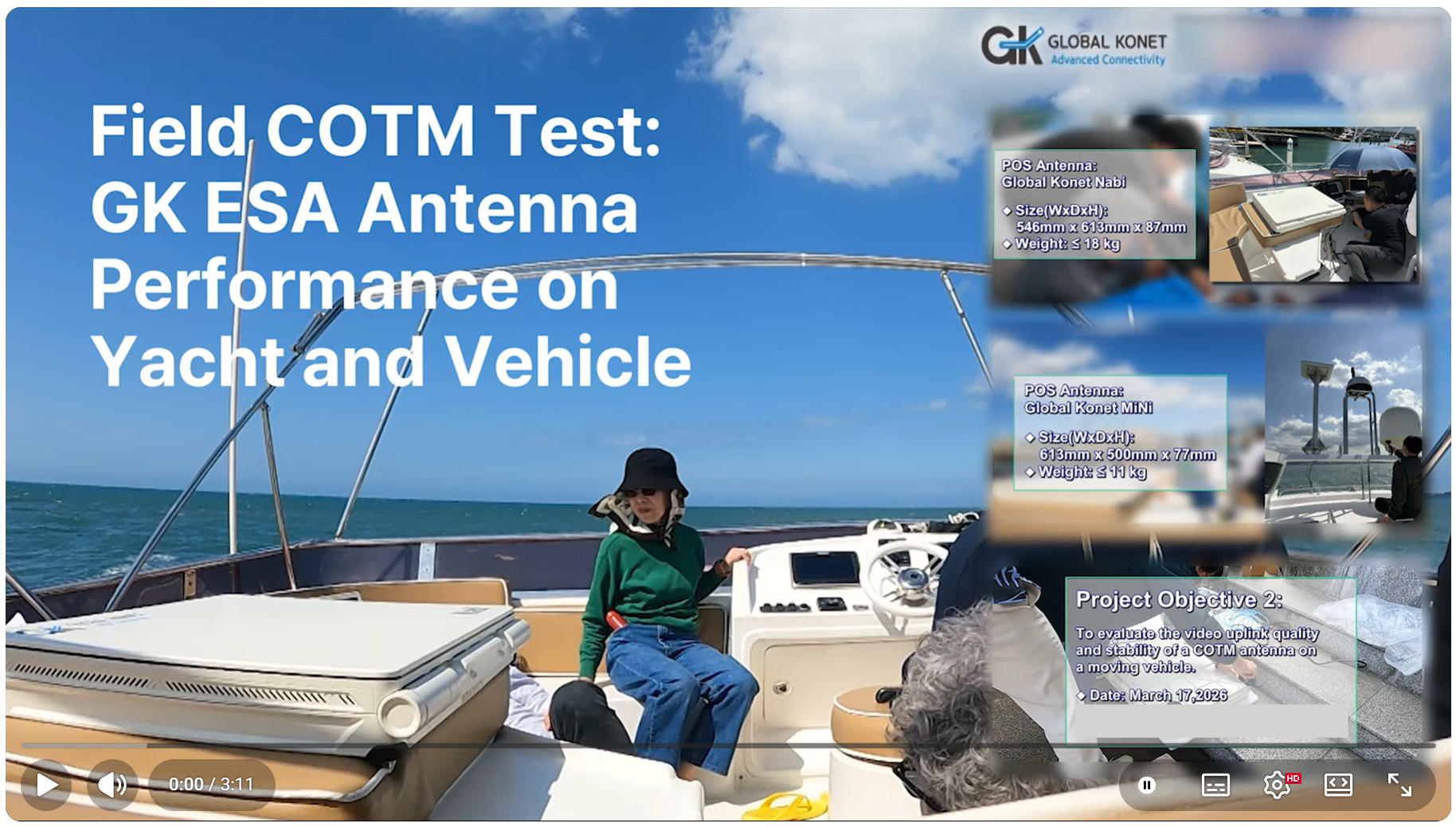

MiNi ESA Antenna Field Test

Play video

Global Konet MiNi flat-panel ESA antenna drone simulation test

Play video

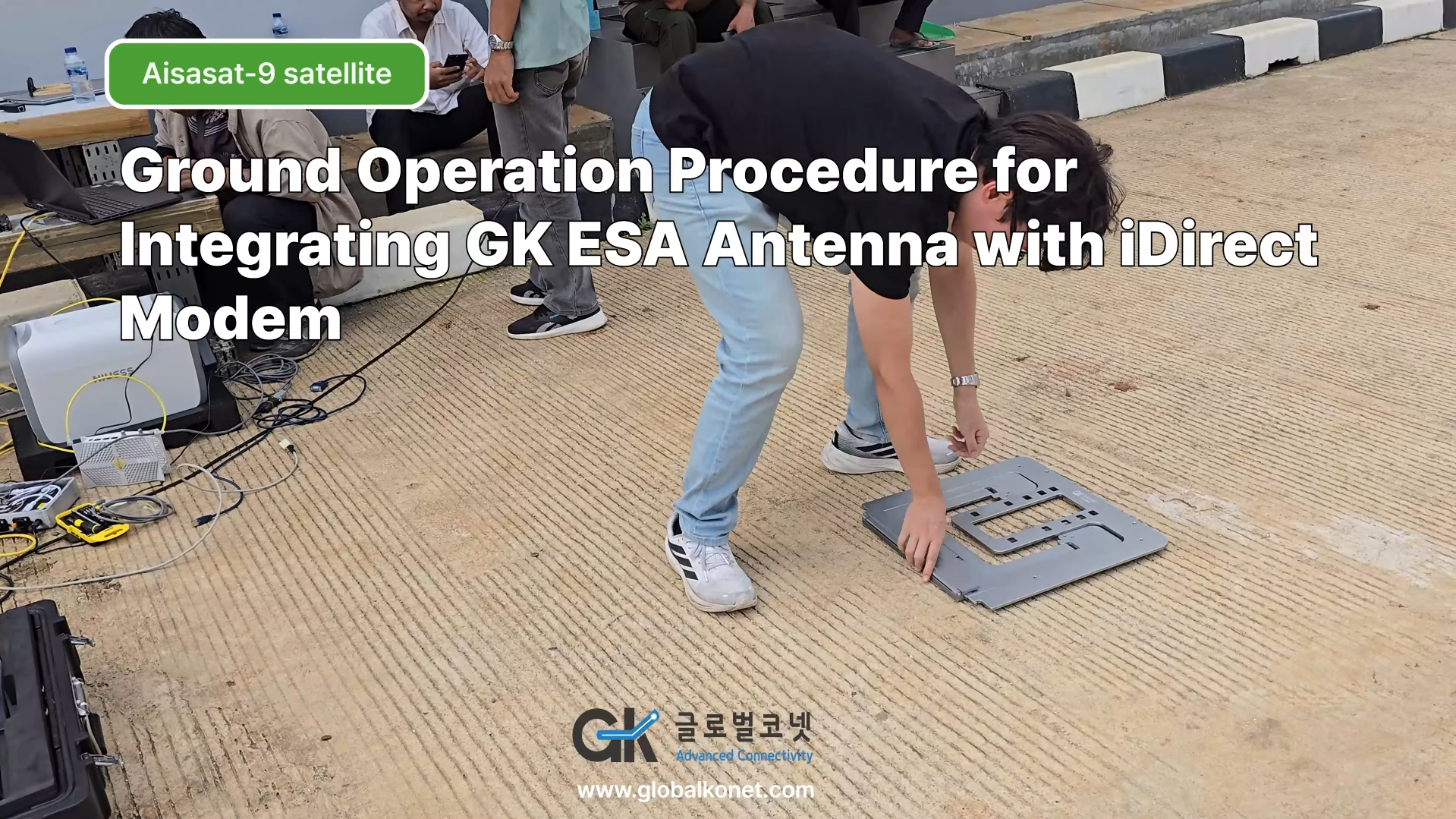

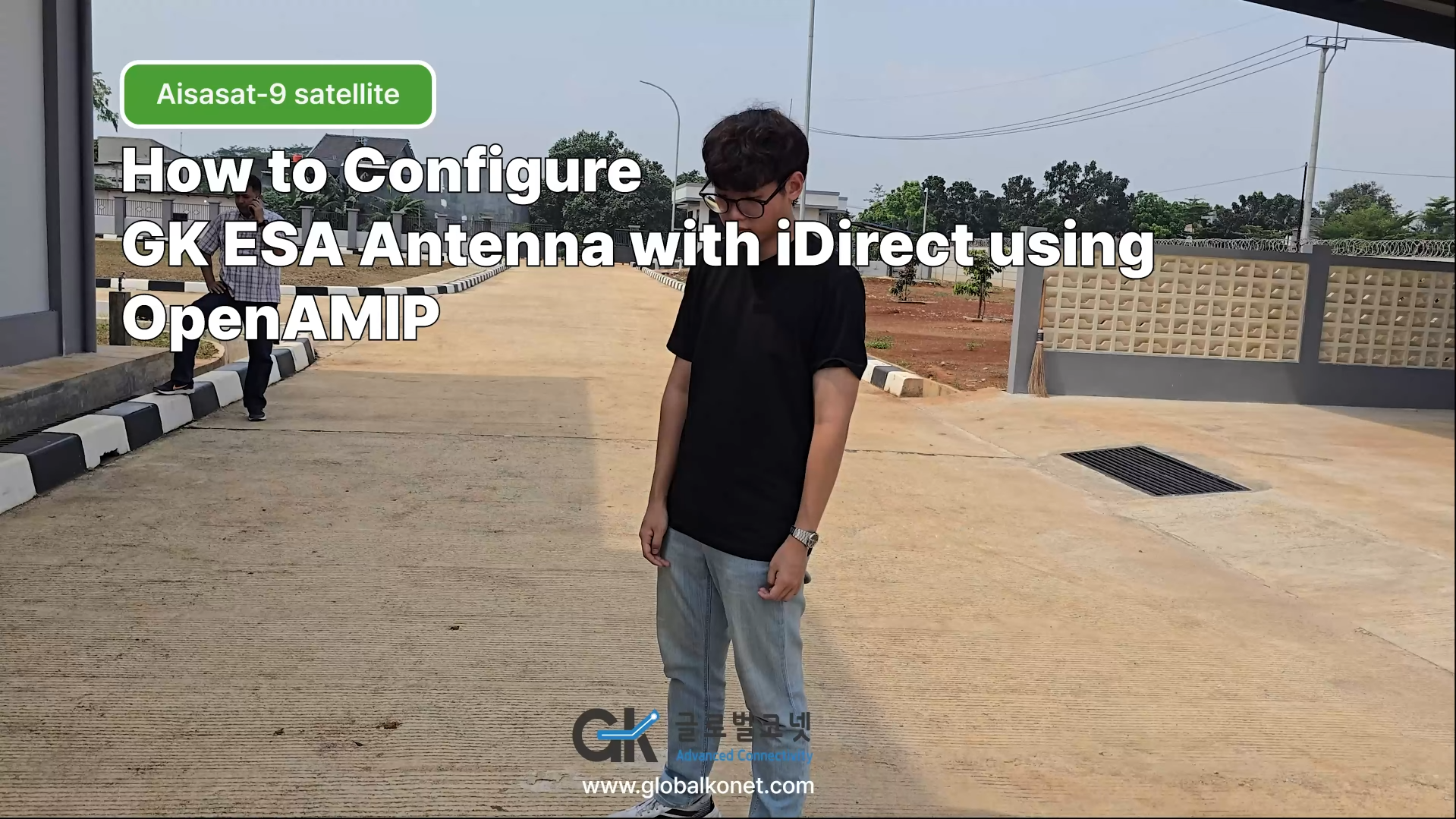

iDirect IQ200 and GK ESA Integration Procedure

Play video

Alpha2 Jumbo ESA shows stable GEO COTM – Koreasat 5A

Play video

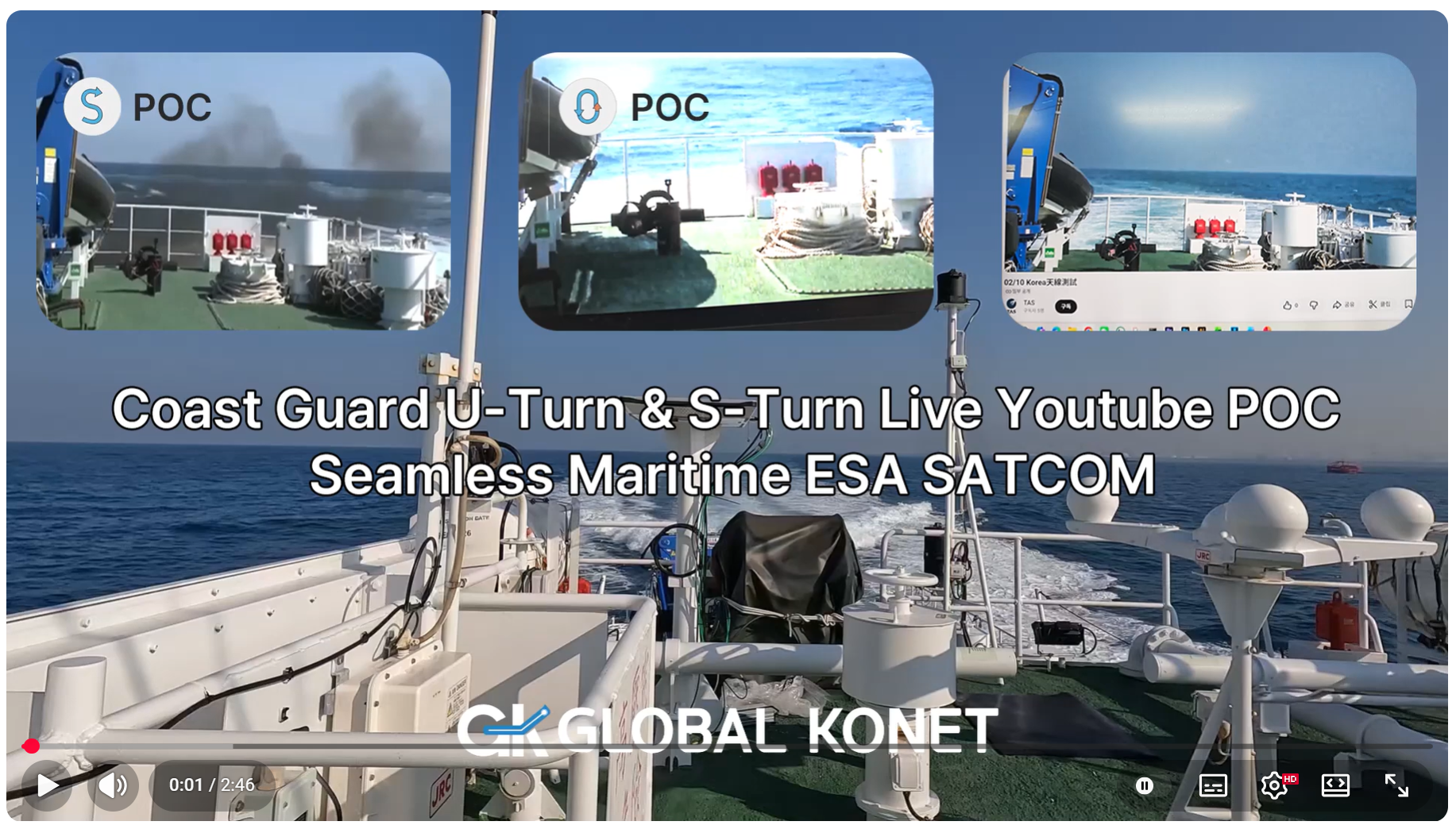

Coast Guard live YouTube via Alpha2 during U-turn

Play video
The IOT interface can reflect customer requirements, and the modem can be built-in.
The IOT interface can reflect customer requirements, and the modem can be built-in.

Antenna Spec

•  Model Name : GU24 (GU230) / GU230M (Military)

•  Antenna Type : Active Phased Electronically Steered Array Antenna

•  Frequency : TX: 13.7–14.5 GHz, RX: 10.7–12.75 GHz

•  Scanning Range : Azimuth: 0º–360º   Elevation: 30º –90º

•  Size (W x D x H) : 264 mm × 239 mm × 34 mm

                                  (10.39 × 9.41 × 1.34 inch)

•  Weight : ≤ 2.5 kg (5.51 lbs)

Ant Transmit/Receive Performance

•  EIRP (Typical) : Linear : ≥ 22 dBW @ 90º @ 14.1 GHz

•  G/T (Typical) : ≥ -1.5 dB/K @ 90º @ 11.7 GHz @ 60 K

•  Polarization : Liinear H/V POL

•  Cross Polarization : ≥ 30 dB
•  Satellite Tracking : DVB-S2 / DVB-S2X Carrier Detection

•  Tracking Mode : SOTM, SOTP, Manual Mode

•  Communication Mode : Full Duplex

•  Modem : Built-in iDirect, Comtech UHP modem (Option)

Interface Features

•  Interface Ports : POWER, LAN Port, RF (SMA) port, GPS (SMA) port

•  Contol interface : Ethernet RJ45, WiFi (Option)


Power Supply Requirement

•  Rated Voltage : 24 V

•  Power Consumption : ≤ 35 Watt (Peak)

Ant environmental performance

•  Operating Temp : -40 ºC – +60 ºC

•  Water-proof : IP66

•  Military Standard : MIL-STD-810G (GU230M)

•  Local Oscillator Frequency : TX: 12.8 / 13.05 GHz

                                                RX: 9.75 / 10.6 / 11.3 GHz

•  10 MHz Reference : TX port requires 10 MHz.
