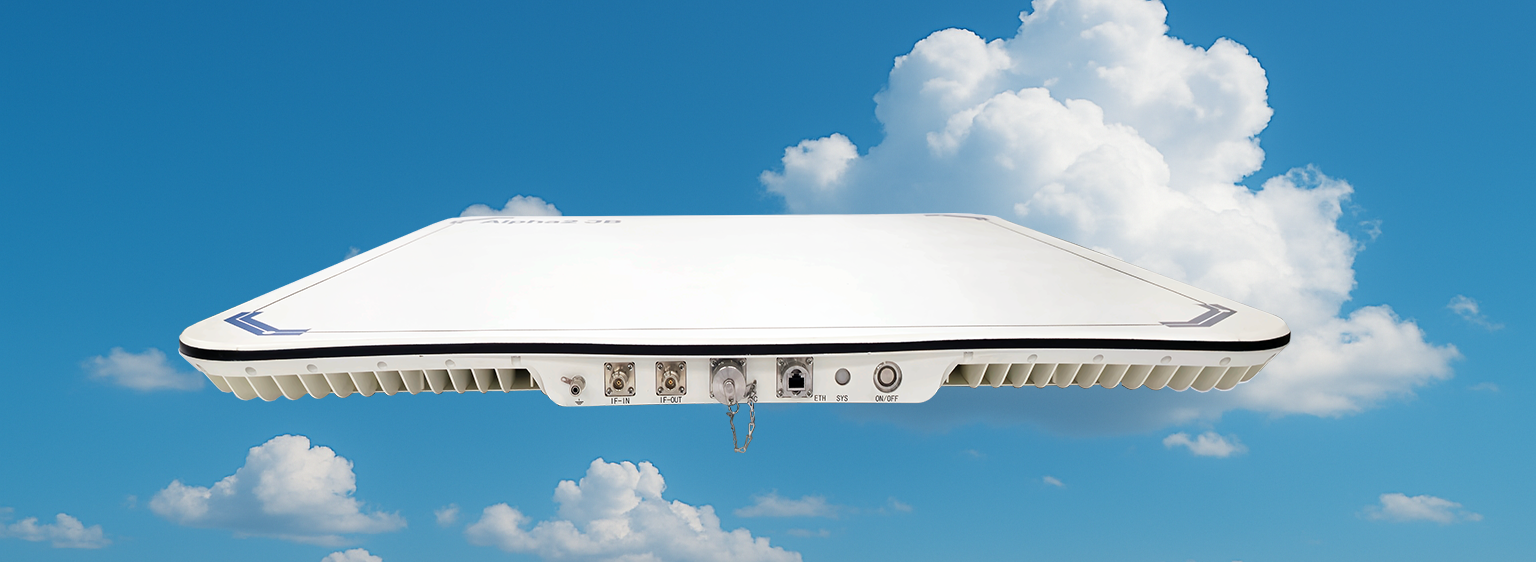

Alpha2 Jumbo ESA Antenna
Alpha2 Jumbo ESA Antenna

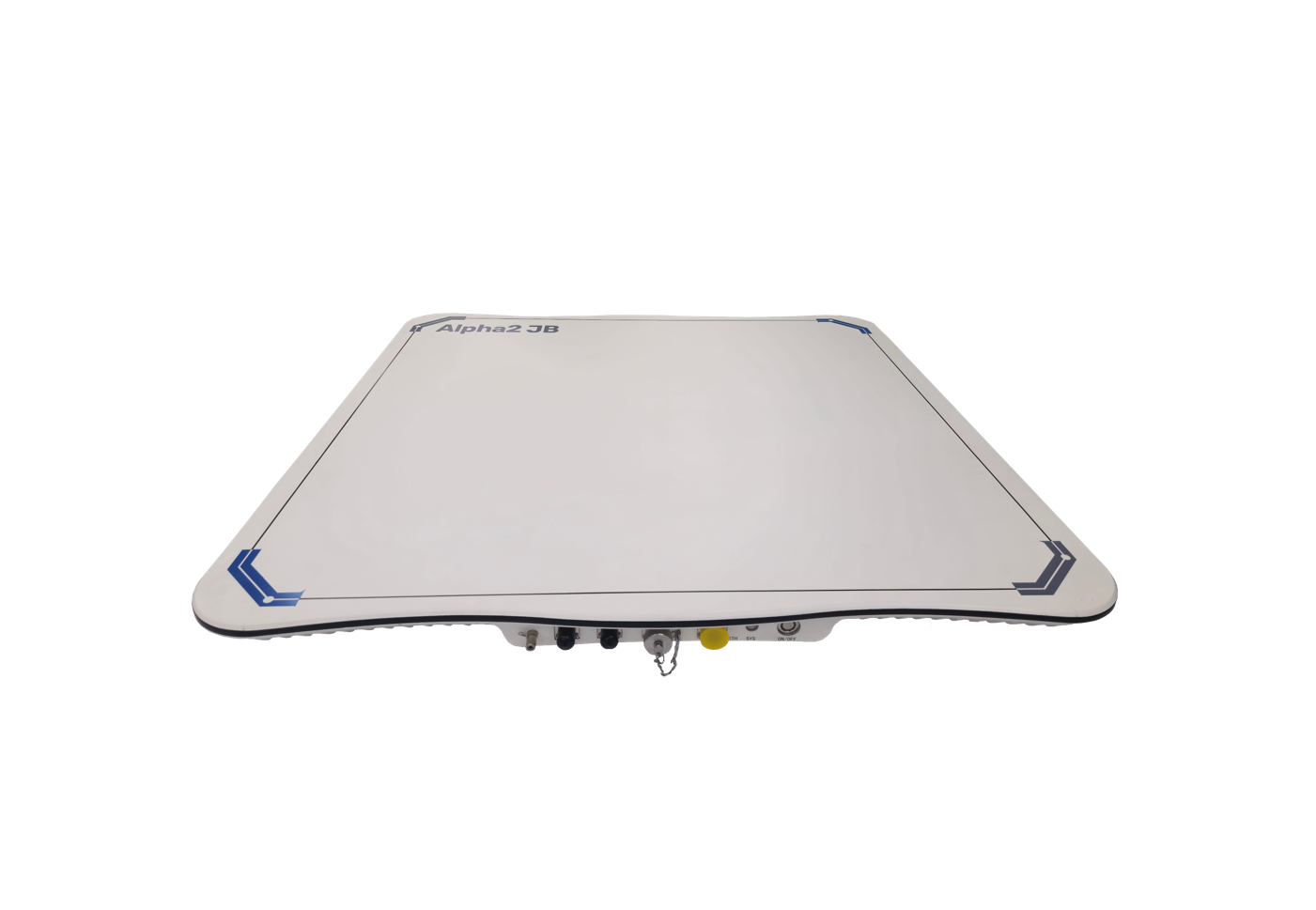

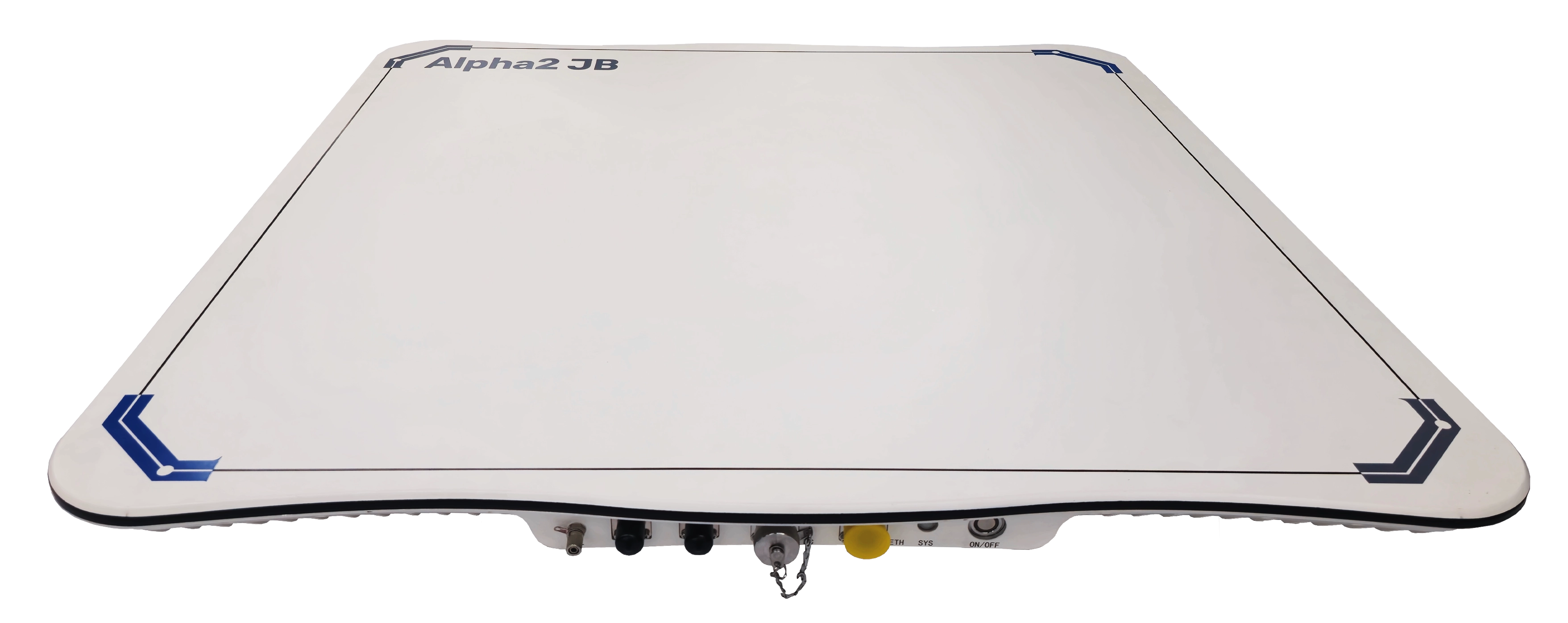

Alpha2 Jumbo Antenna
Ku-band OTM electron beam steering ESA antenna, marine, aircraft, vehicle mobile service
The Alpha2 Jumbo ESA antenna is an antenna with high efficiency characteristics available on ships or vehicles suitable for GEO satellites with increased G/T 15dB/K reception performance with OTM functionality.
In the case of VSAT satellite communication networks, maximization of reception capability is very important rather than transmission capability.
The Alpha2 Jumbo antenna has electronic beam steering satellite antenna functionality suitable for fixed satellites of GEO as well as LEO.

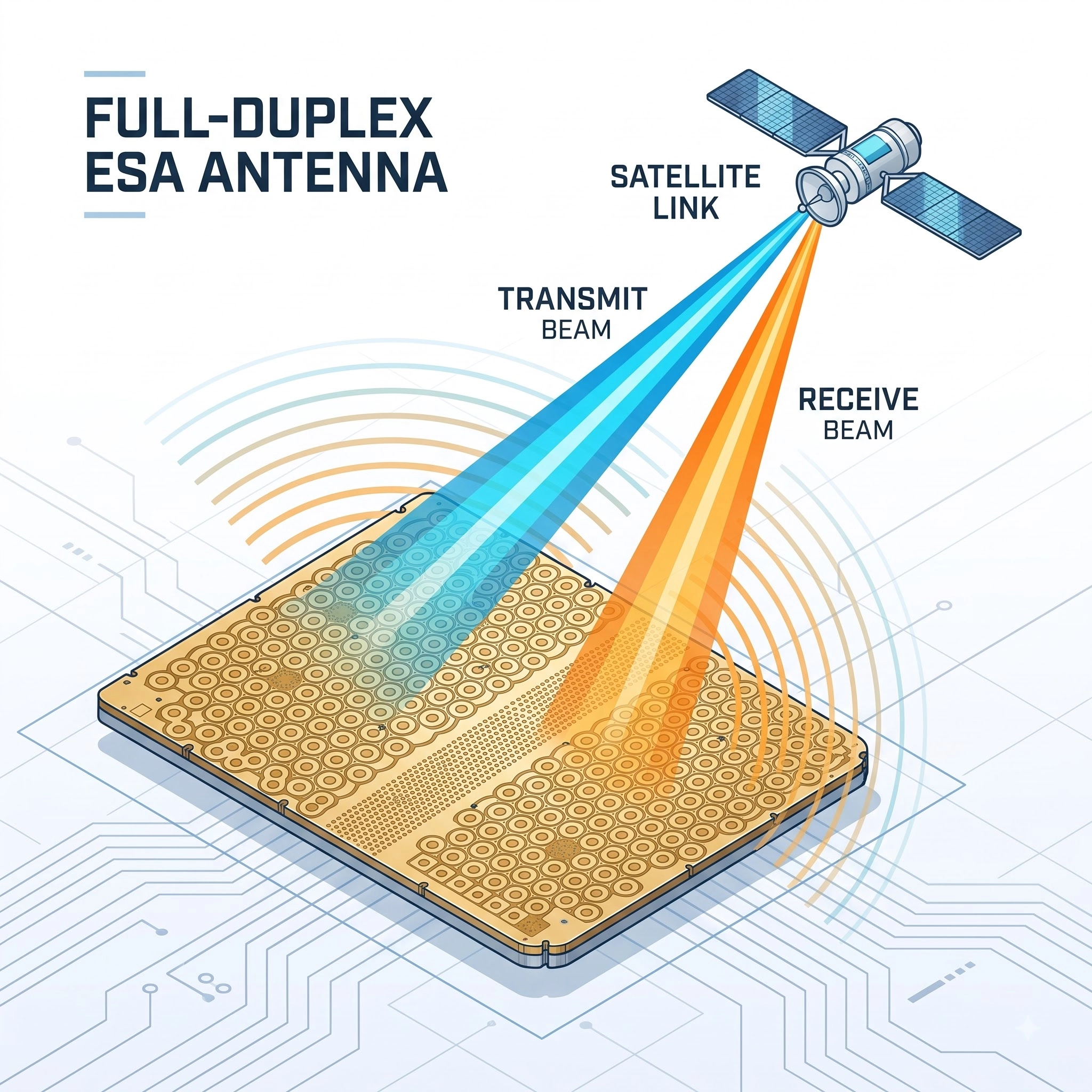

Full-Duplex ESA Antenna
Simultaneous Transmission and Reception
Alpha2 Jumbo ESA antenna uses full-duplex to simultaneously transmit and receive, maximizing data throughput. This eliminates delays between data transmission and reception, and increases bandwidth efficiency in two-way communications.
The simultaneous transmission and reception capability allows for more data to be processed faster. This is particularly advantageous for high-capacity data communications such as high-speed Internet, real-time streaming, and high-resolution video transmission.
Full-duplex ESA antennas are highly compatible with next-generation communications technologies such as 5G and 6G. These technologies require high-speed data transmission and low latency, making full-duplex mode essential.
Excellent Alpha OTM antenna performance with fast beam switching speed
Pol Switching Time : <0.5ms
Satellite Switching Time : ≤0.3ms
Fast beam switching speed enables satellites to track and communicate reliably in real time with fast-moving low-Earth orbit satellite users or base stations. This is especially advantageous for communication with moving aircraft, ships, and vehicles.
Built-in modem board and GPS external port provided.
GK ESA antenna supports customized production for customers.
It can embed a modem as needed and supports IQ200, Gilat, UHP, THISS modems. In addition, if an external GPS is used, a separate GPS port can be provided externally.
Electronically steered beams without using traditional mechanical motors
Without mechanical motors, ESA antennas have no moving parts, avoiding mechanical problems such as wear, failure, and maintenance. This greatly improves the reliability and lifespan of the antenna.
ESA antennas without mechanical motors have no moving parts, so they can avoid mechanical problems such as wear, failure, and maintenance. This greatly improves the reliability and lifespan of the antenna.

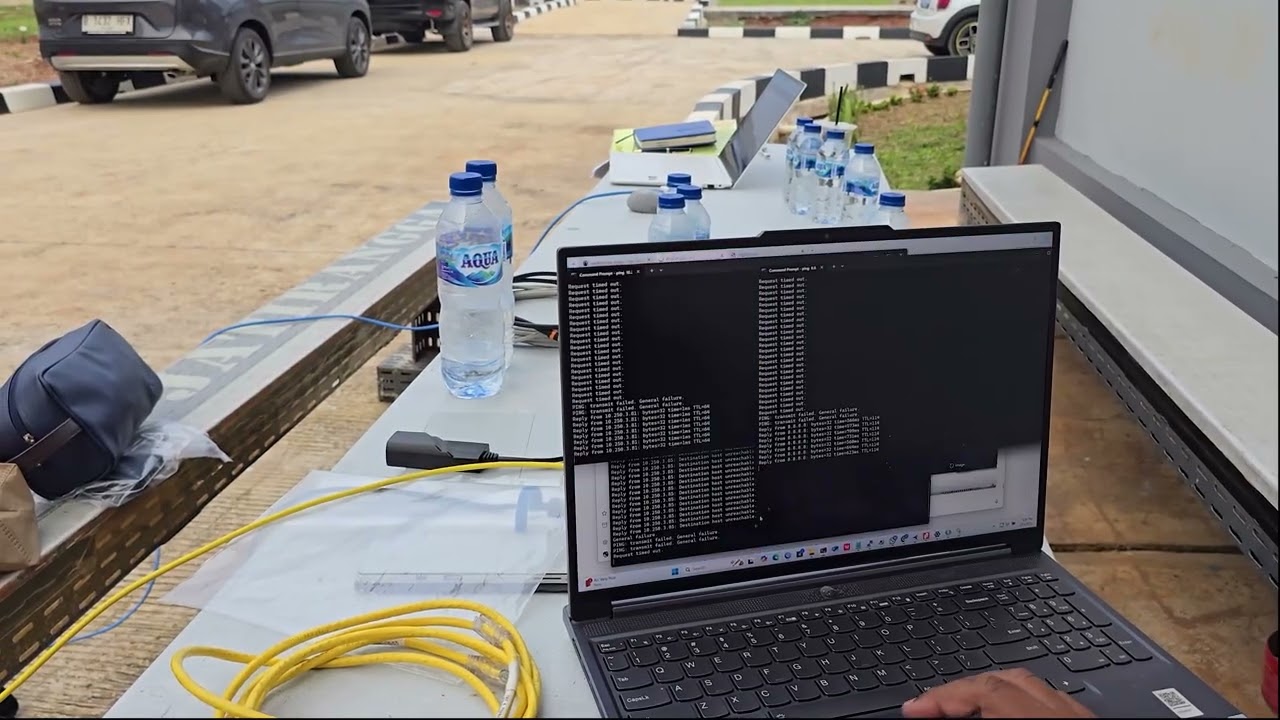

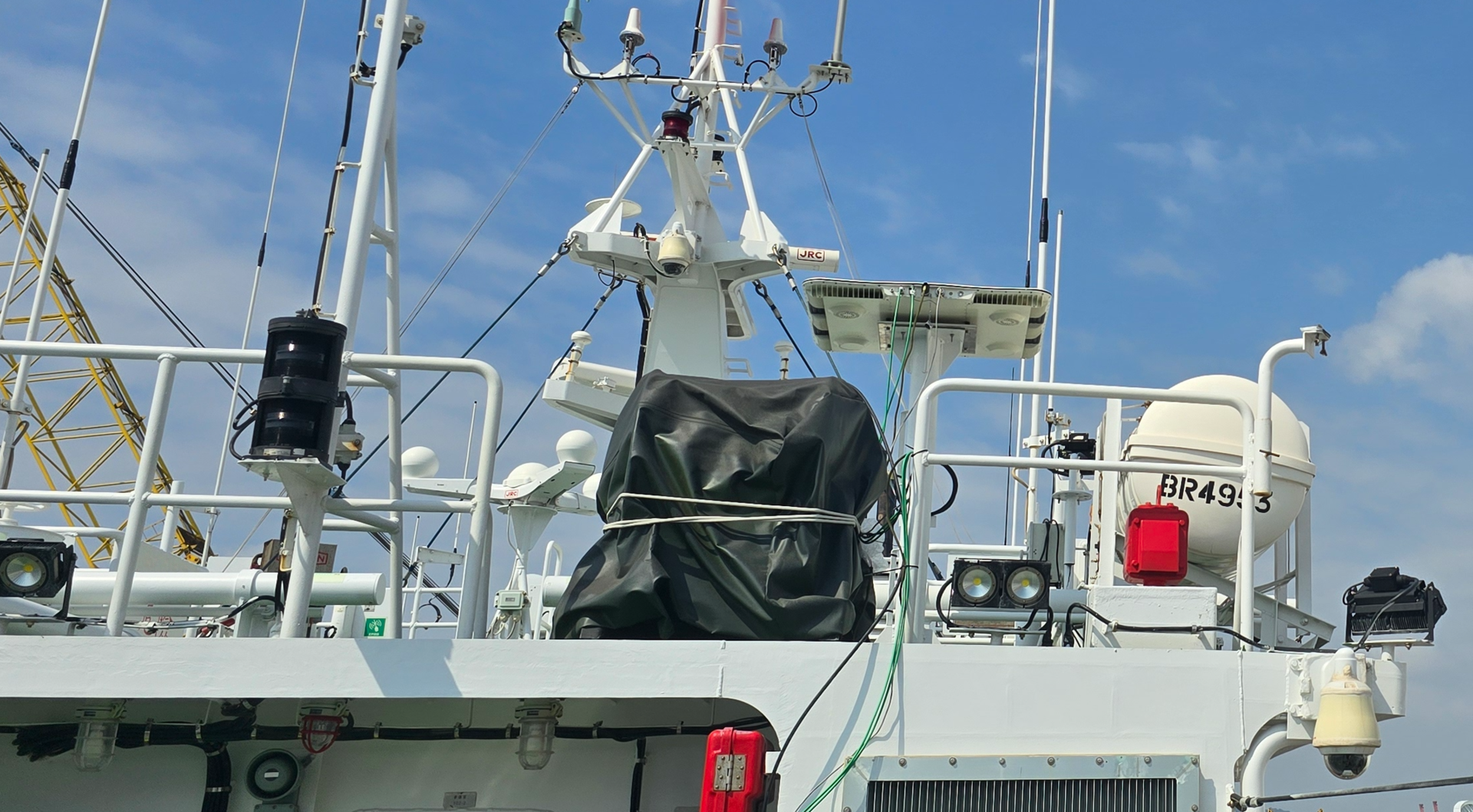

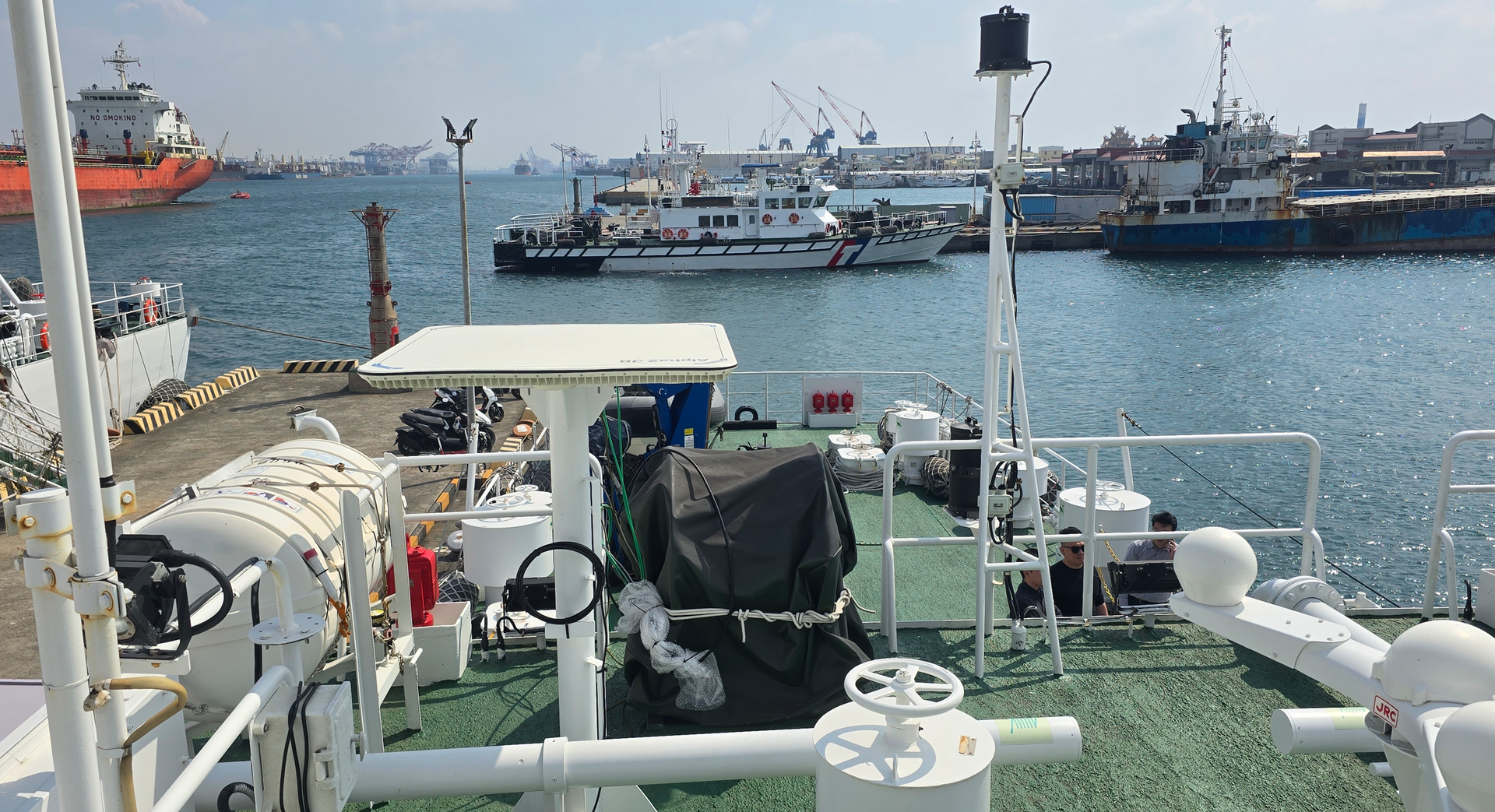

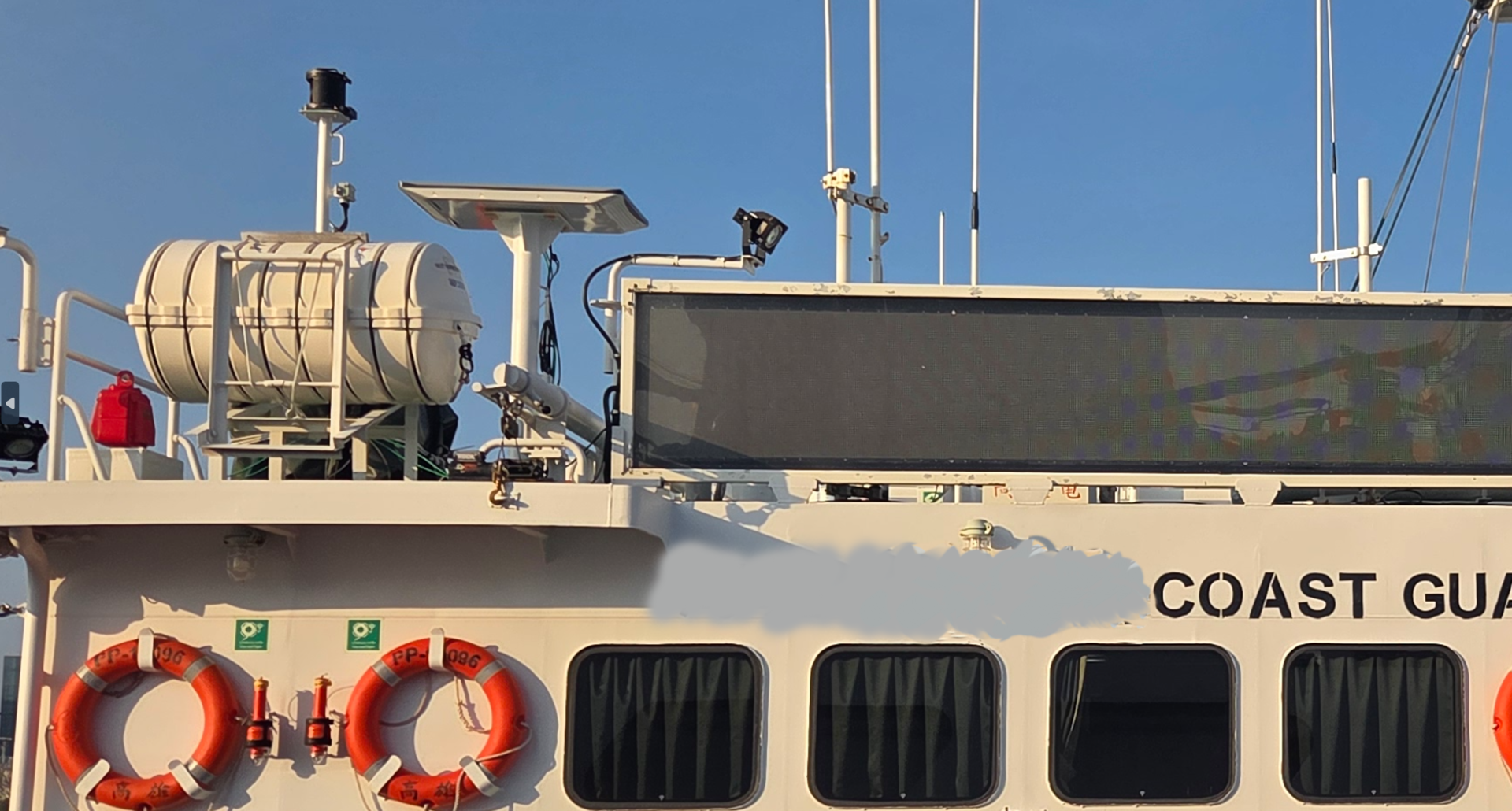

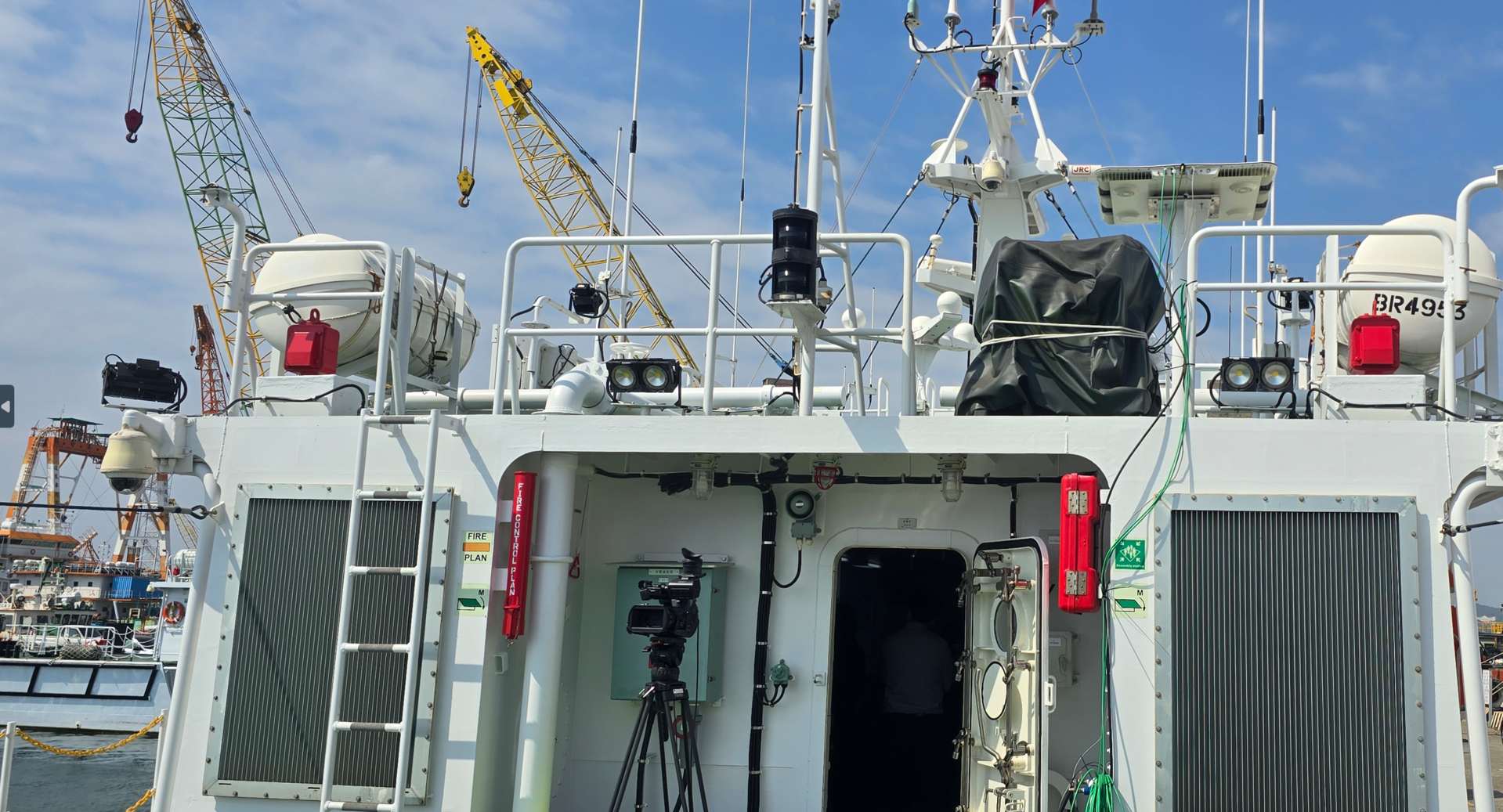

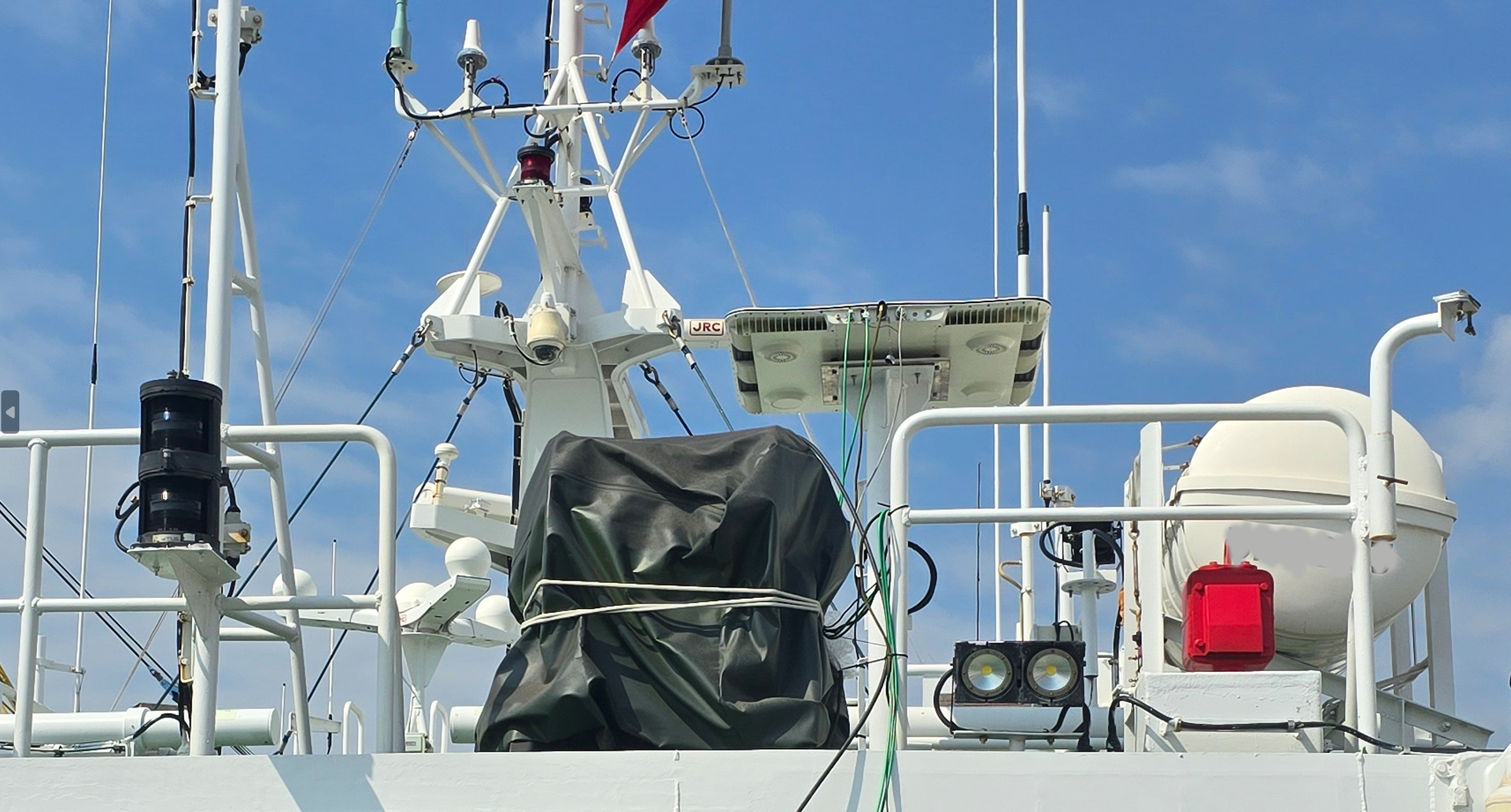

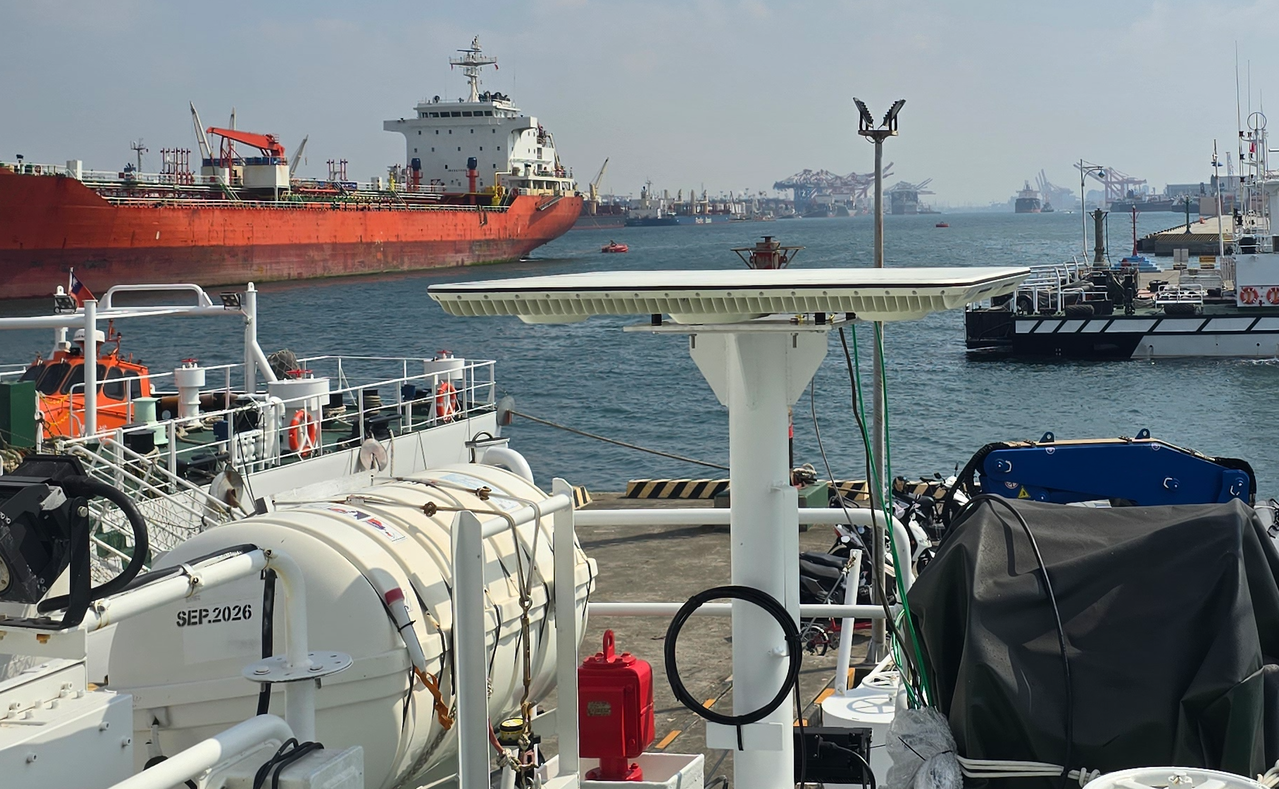

Already, POC has been performed in the Middle East and Southeast Asia
The Alpha2 Jumbo ESA antenna is an antenna with high efficiency characteristics available on ships or vehicles suitable for GEO satellites with increased G/T 15dB/K reception performance with OTM functionality.
In the case of VSAT satellite communication networks, maximization of reception capability is very important rather than transmission capability.
The Alpha2 Jumbo antenna has electronic beam steering satellite antenna functionality suitable for fixed satellites of GEO as well as LEO.
Full-Duplex ESA Antenna
Simultaneous Transmission and Reception
Alpha2 Jumbo ESA antenna uses full-duplex to simultaneously transmit and receive, maximizing data throughput. This eliminates delays between data transmission and reception, and increases bandwidth efficiency in two-way communications.
The simultaneous transmission and reception capability allows for more data to be processed faster. This is particularly advantageous for high-capacity data communications such as high-speed Internet, real-time streaming, and high-resolution video transmission.
Full-duplex ESA antennas are highly compatible with next-generation communications technologies such as 5G and 6G. These technologies require high-speed data transmission and low latency, making full-duplex mode essential.
Excellent Alpha OTM antenna performance with fast beam switching speed
Pol Switching Time : < 0.5ms
Satellite Switching Time : ≤ 0.3ms
Fast beam switching speed enables satellites to track and communicate reliably in real time with fast-moving low-Earth orbit satellite users or base stations. This is especially advantageous for communication with moving aircraft, ships, and vehicles.
Built-in modem board and GPS external port provided.
GK ESA antenna supports customized production for customers.
It can embed a modem as needed and supports IQ200, Gilat, UHP, THISS modems. In addition, if an external GPS is used, a separate GPS port can be provided externally.
Electronically steered beams without using traditional mechanical motors
Without mechanical motors, ESA antennas have no moving parts, avoiding mechanical problems such as wear, failure, and maintenance. This greatly improves the reliability and lifespan of the antenna.
ESA antennas without mechanical motors have no moving parts, so they can avoid mechanical problems such as wear, failure, and maintenance. This greatly improves the reliability and lifespan of the antenna.
Already, POC has been performed in the Middle East and Southeast Asia
RELATED RESOURCES
KONET PRODUCTS
VIDEOS

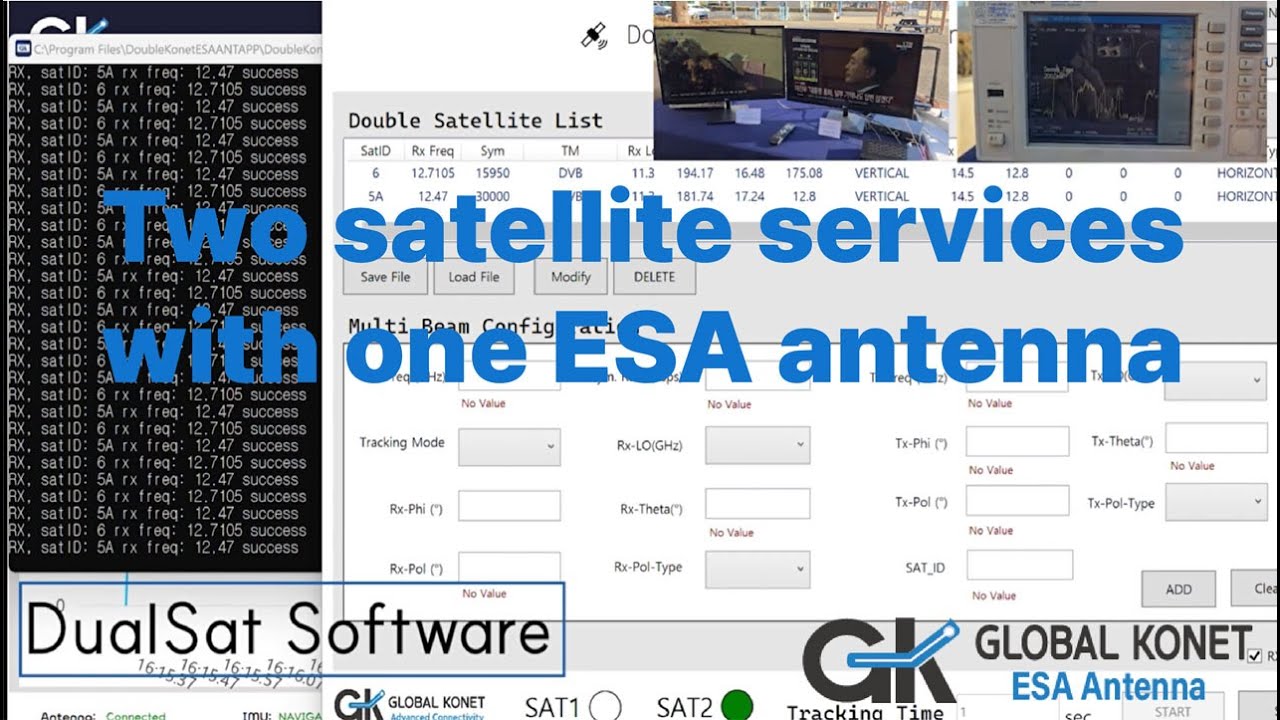

Dualsat Live demo
2024 Washington Satellite Show

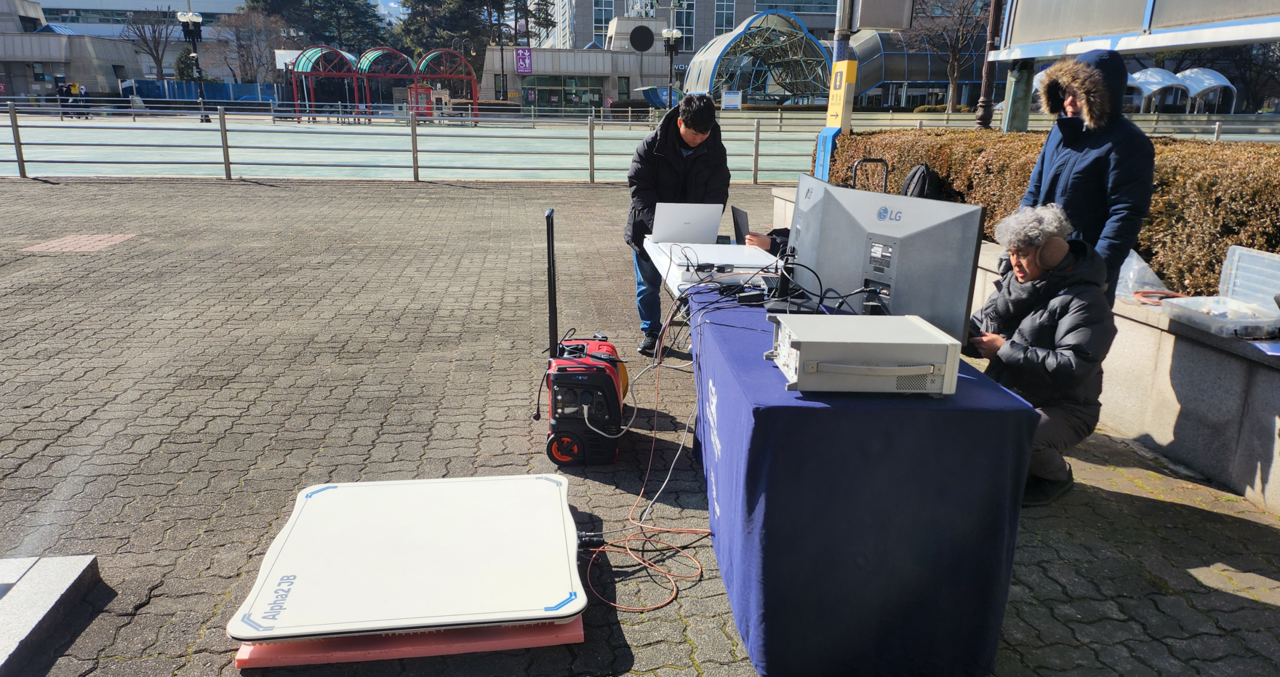

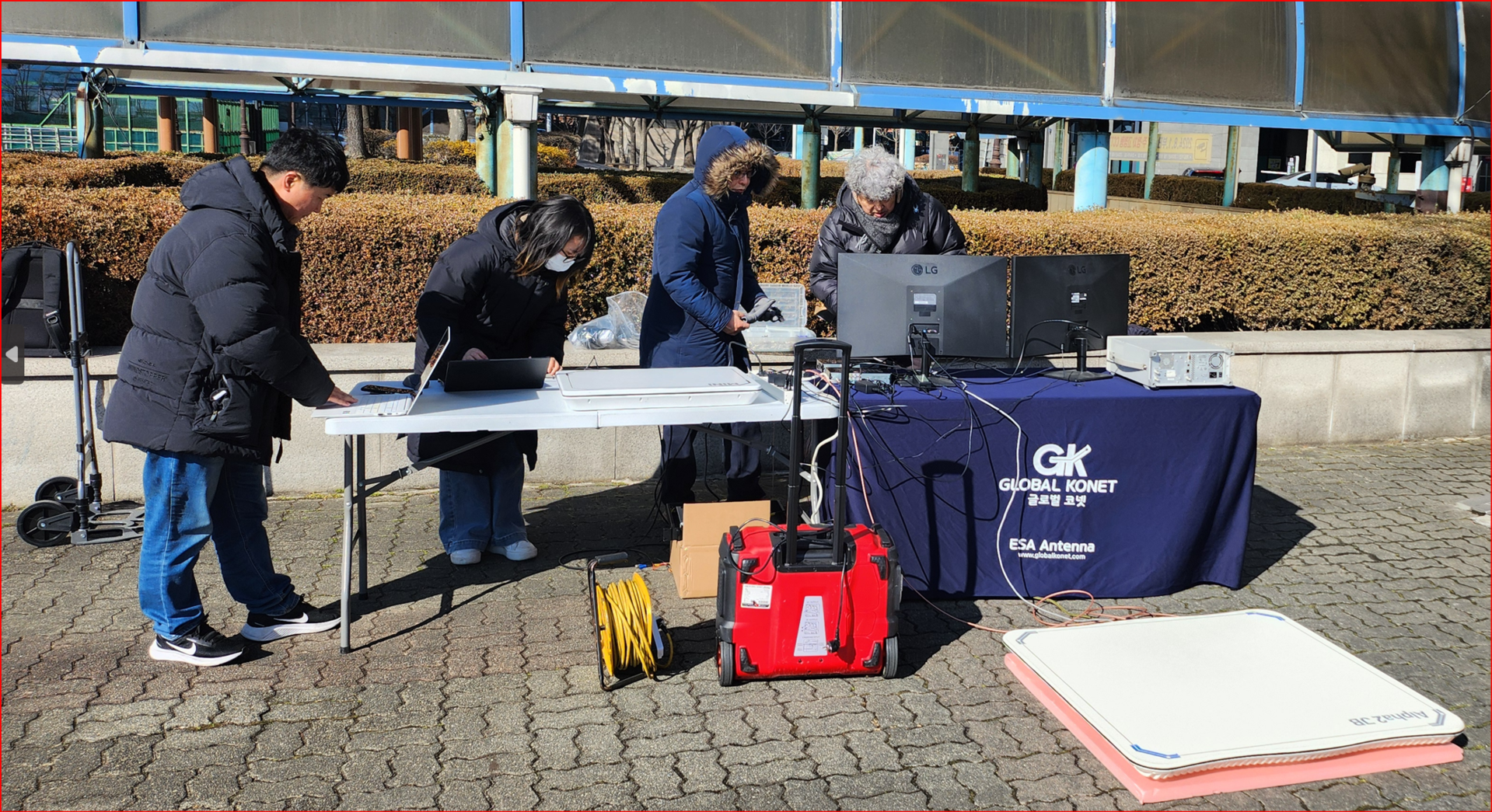

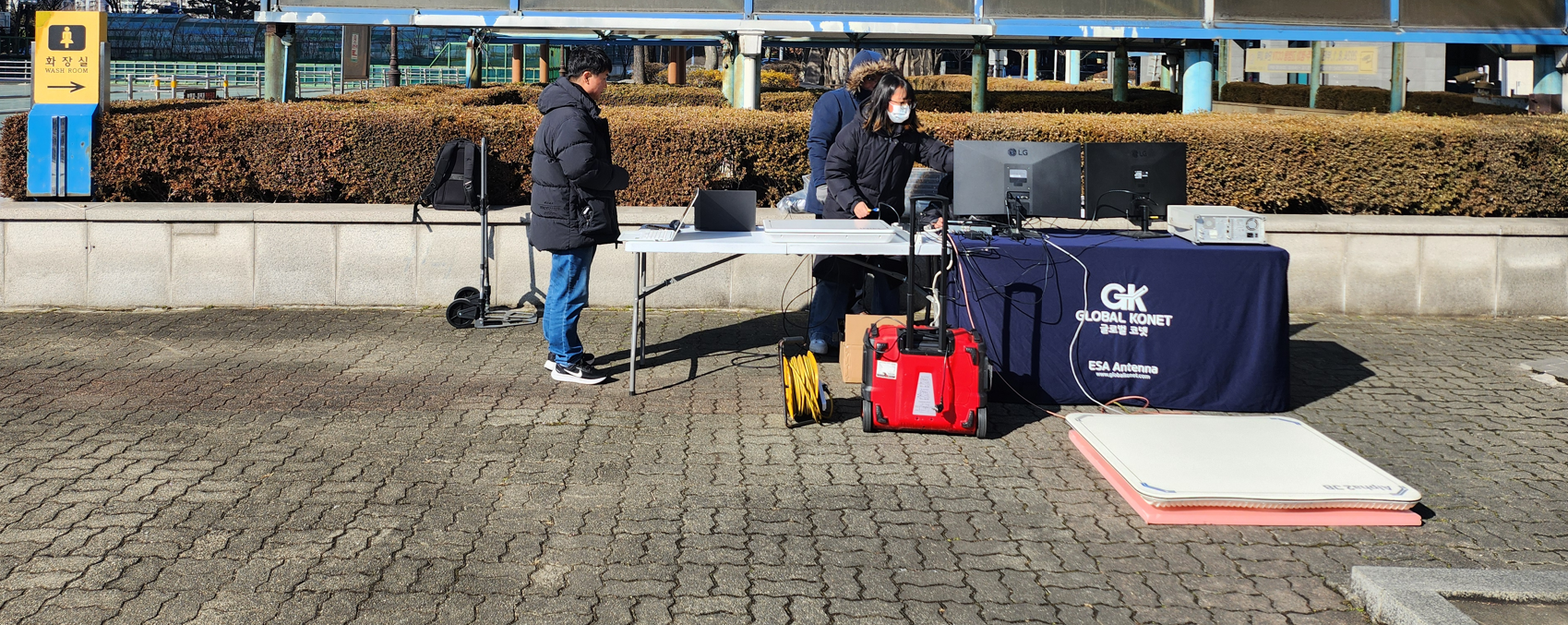

MiNi ESA Antenna Field Test
iDirect IQ200 and GK ESA Integration Procedure
Antenna Spec
• Model Name : Alpha2 Jumbo (GU440) / GU440M(Military)
• Antenna Type : Active Phased Electronically Steered Array Antenna
• Frequency : TX: 13.7 - 14.5GHz, RX: 10.7 - 12.75GHz
• Scanning Range : Azimuth: 0º ~ 360º Elevation: 30º ~ 90º
• Size (W x D x H) : 980mm x 940mm x 77mm
• Weight : ≤ 32.8kg
Ant Transmit/Receive Performance
• EIRP (typical) : Linear : ≥ 49.5dBW@90º@14.1GHz
• G/T (typical) : ≥ 15dB/K@90º@11.7GHz@80K
• Polarization : Linear H/V
• Cross Polarization : ≥30dB
• Satellite Tracking : DVB-S2/ DVB-S2X Carrier Detection
• Tracking Mode : SOTM, SOTP, Manual Mode
• Communication Mode : Full Duplex
• Pol Switching Time : <0.5ms
• Beam Switching Time : ≤0.3ms
• Modem : Built-in iDirect, Comtech UHP modem(Option)

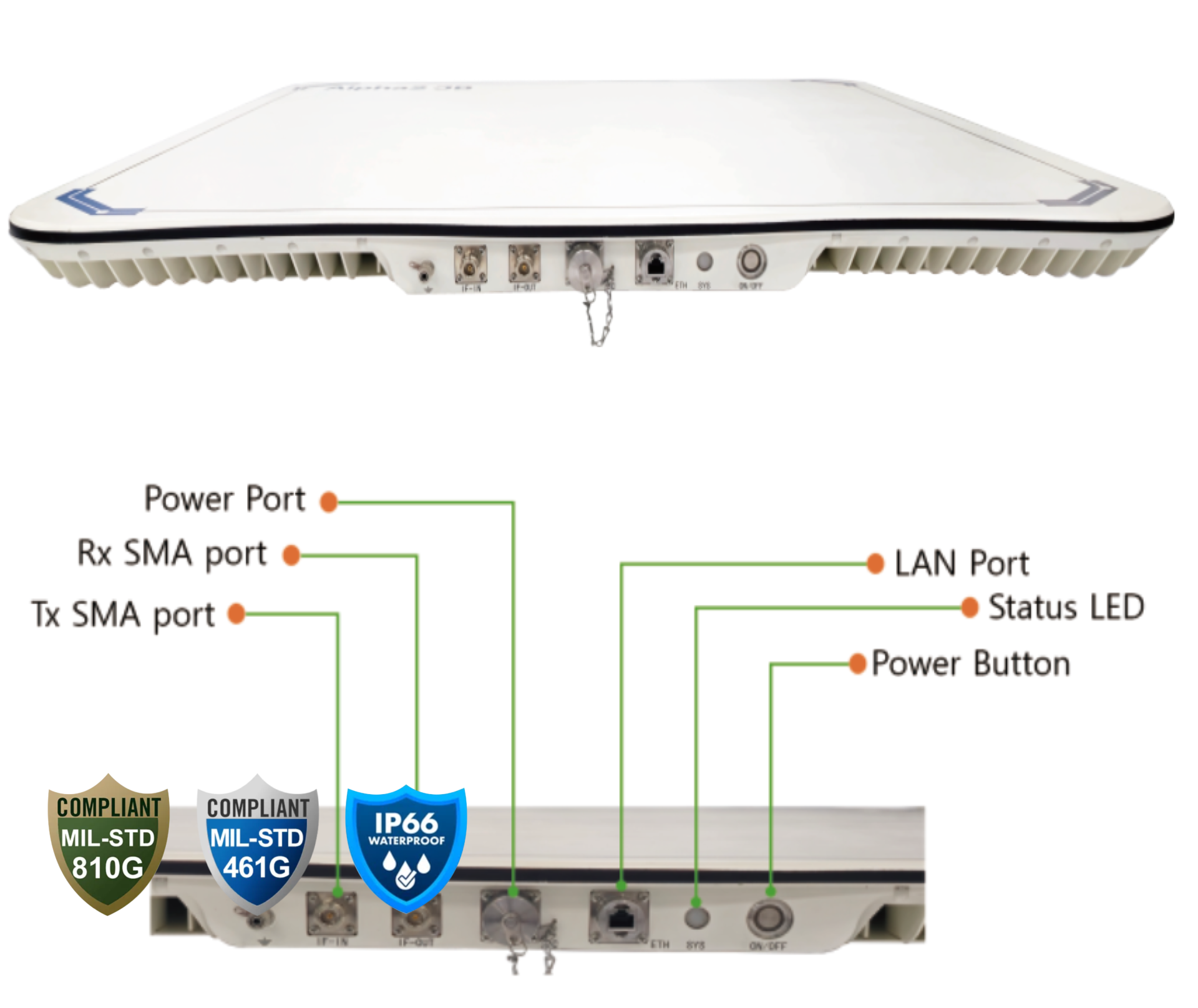

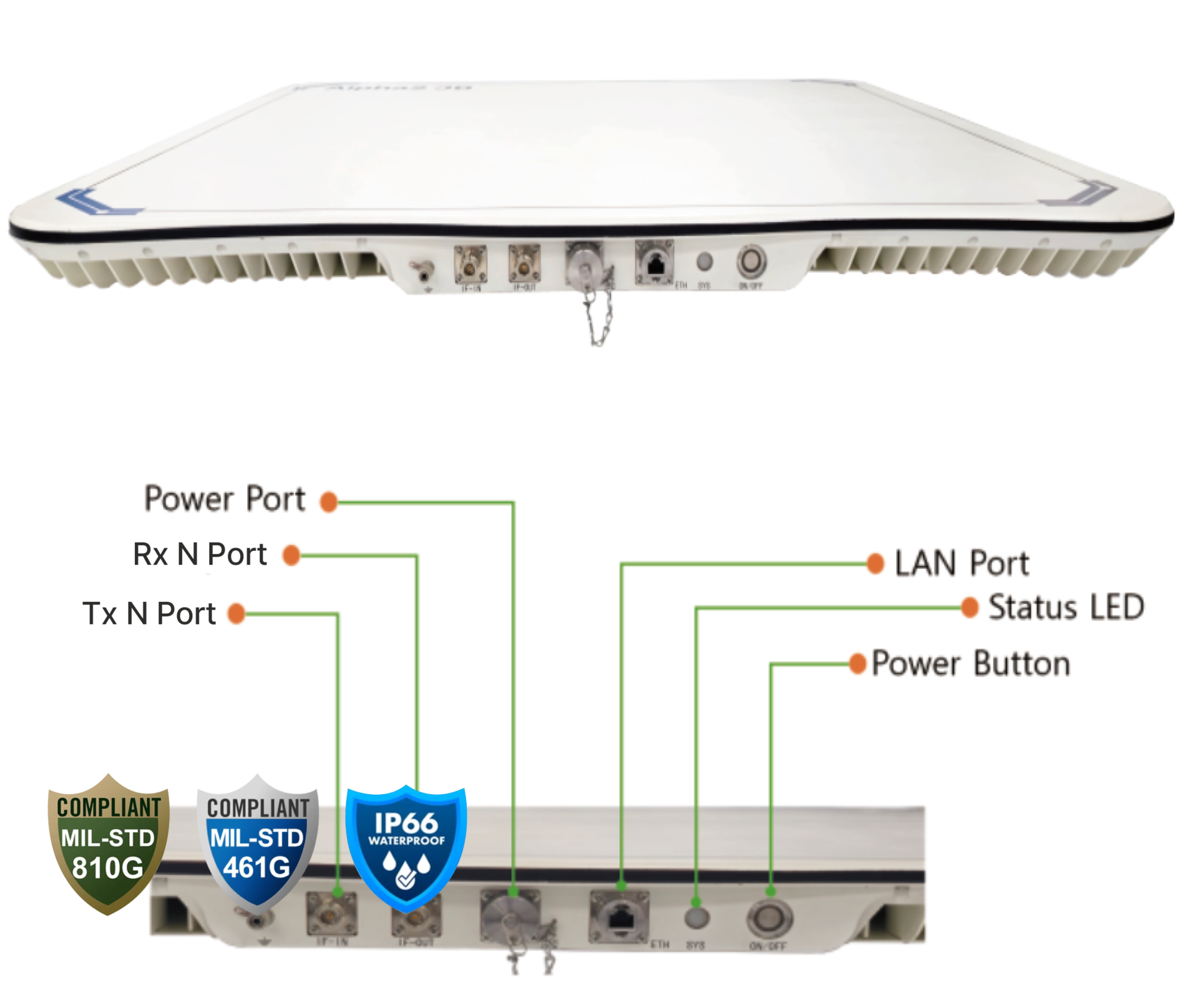

Interface Features

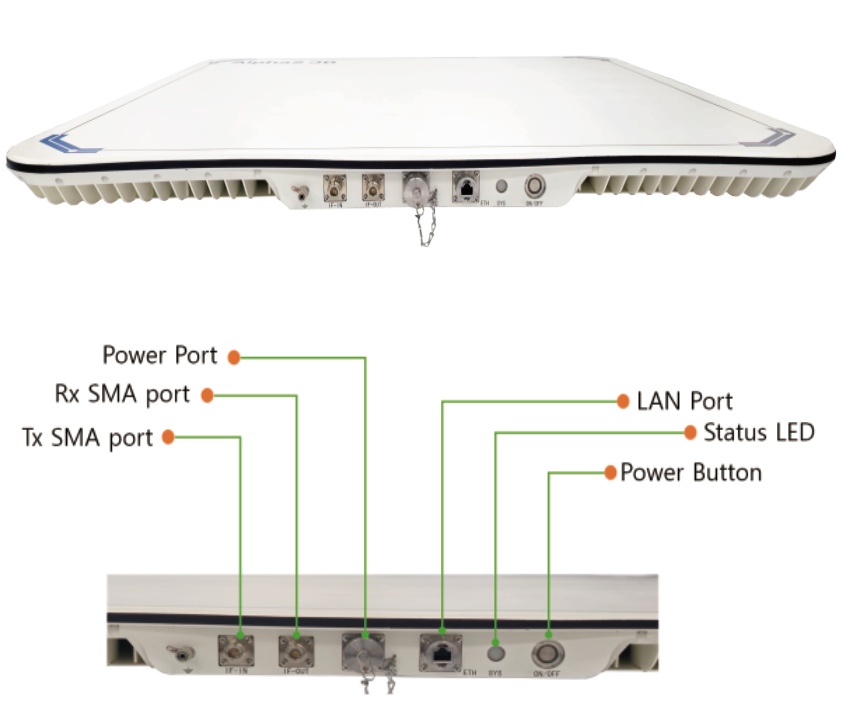

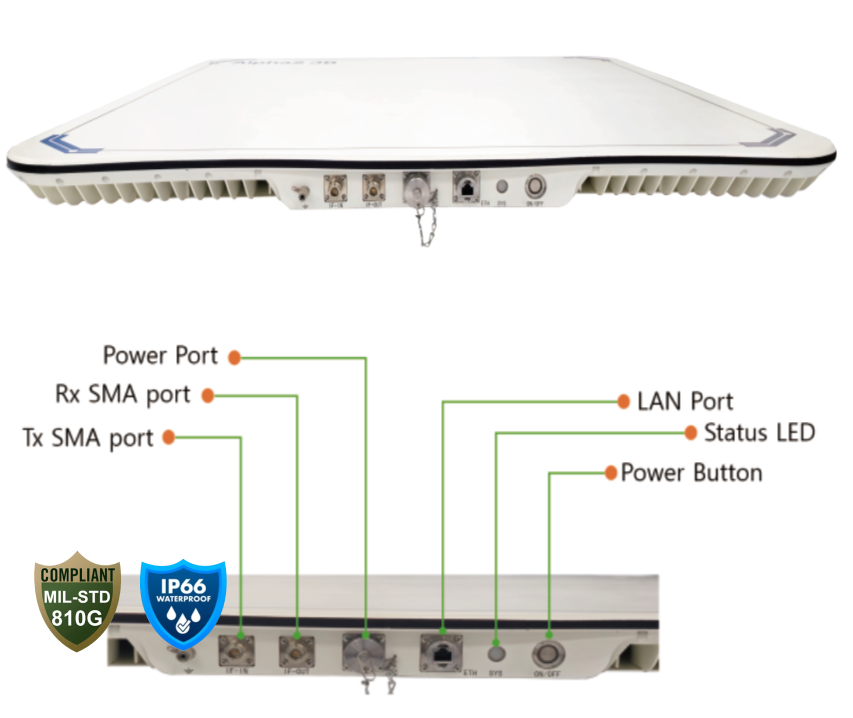

• Interface Ports : Power BTN, STATUS LED, DC input, NET x 1
• Contol interface : Ethernet RJ45, WiFi (option)
Power Supply Requirement
• Rated Voltage : 28V(24V~31V)
• Power Consumption : ≤750Watt(MAX)
Ant environmental performance
• Operating Temp : -40ºC ~ +55ºC
• Water-proof : IP66
• Military Standard : MIL-STD-810G(GU440M)
• Local Oscillator Frequency : TX: 12.8/13.05GHz
RX: 9.75/10.6/11.3GHz
• 10MHz Reference : TX Port requires 10MHz.
• Manufacturer : GLOBAL KONET Co., Ltd.
