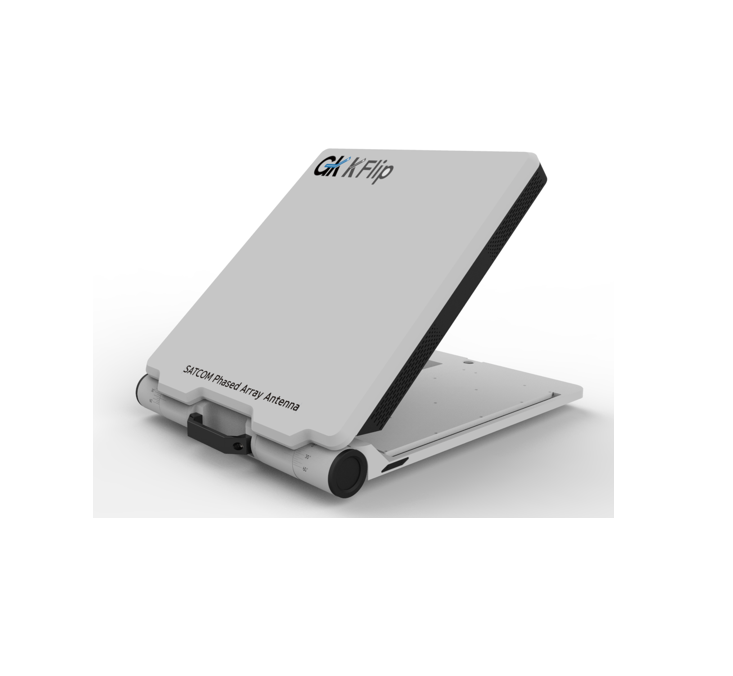

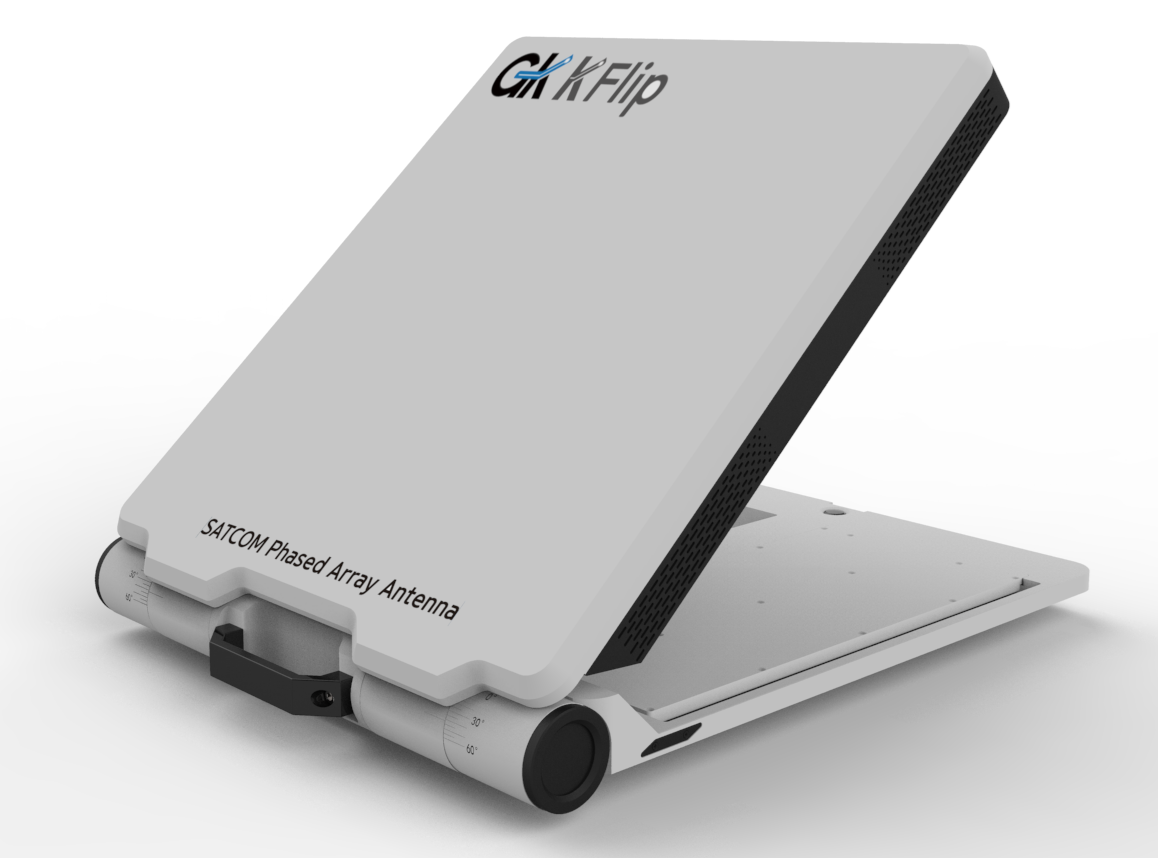

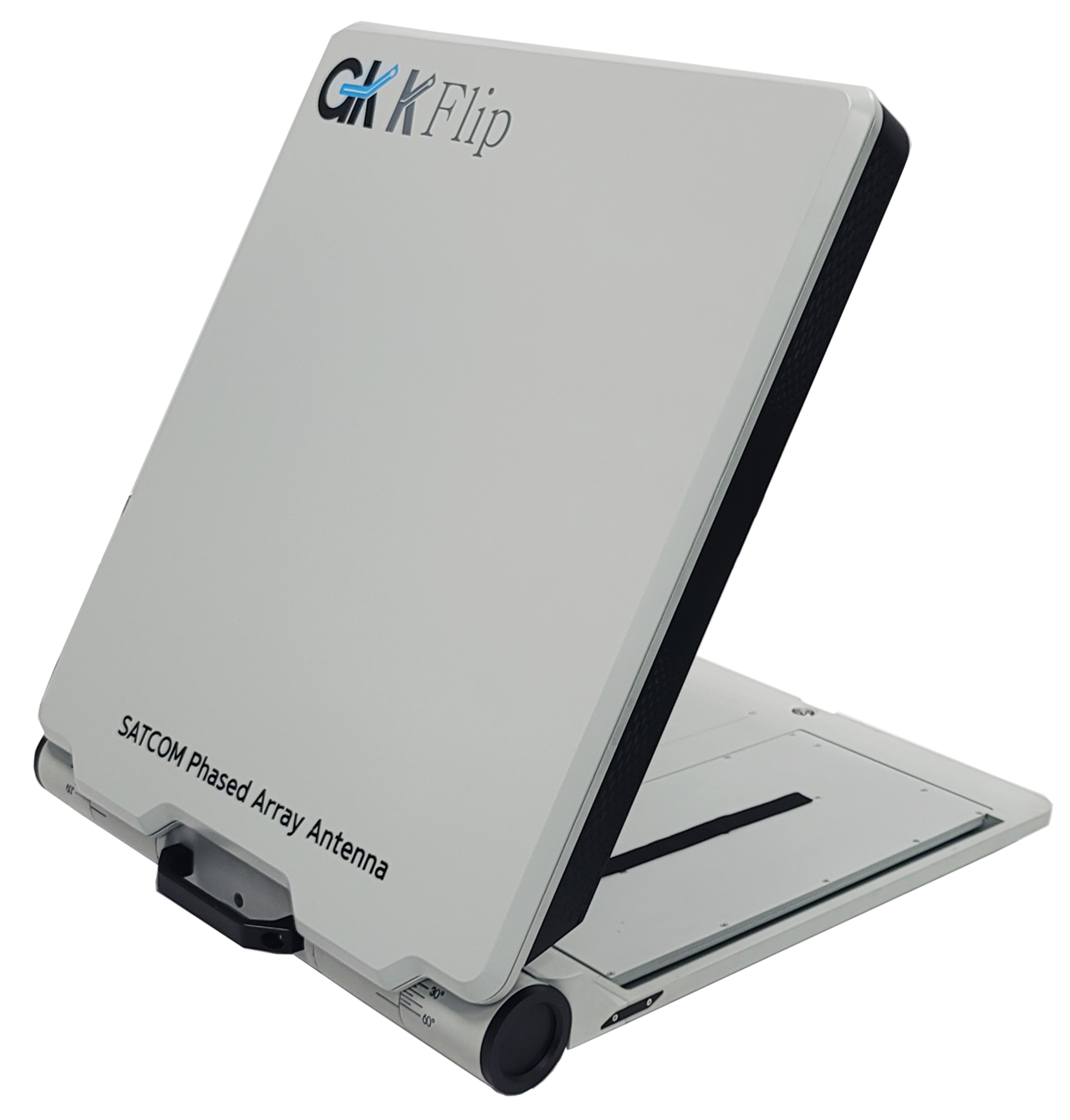

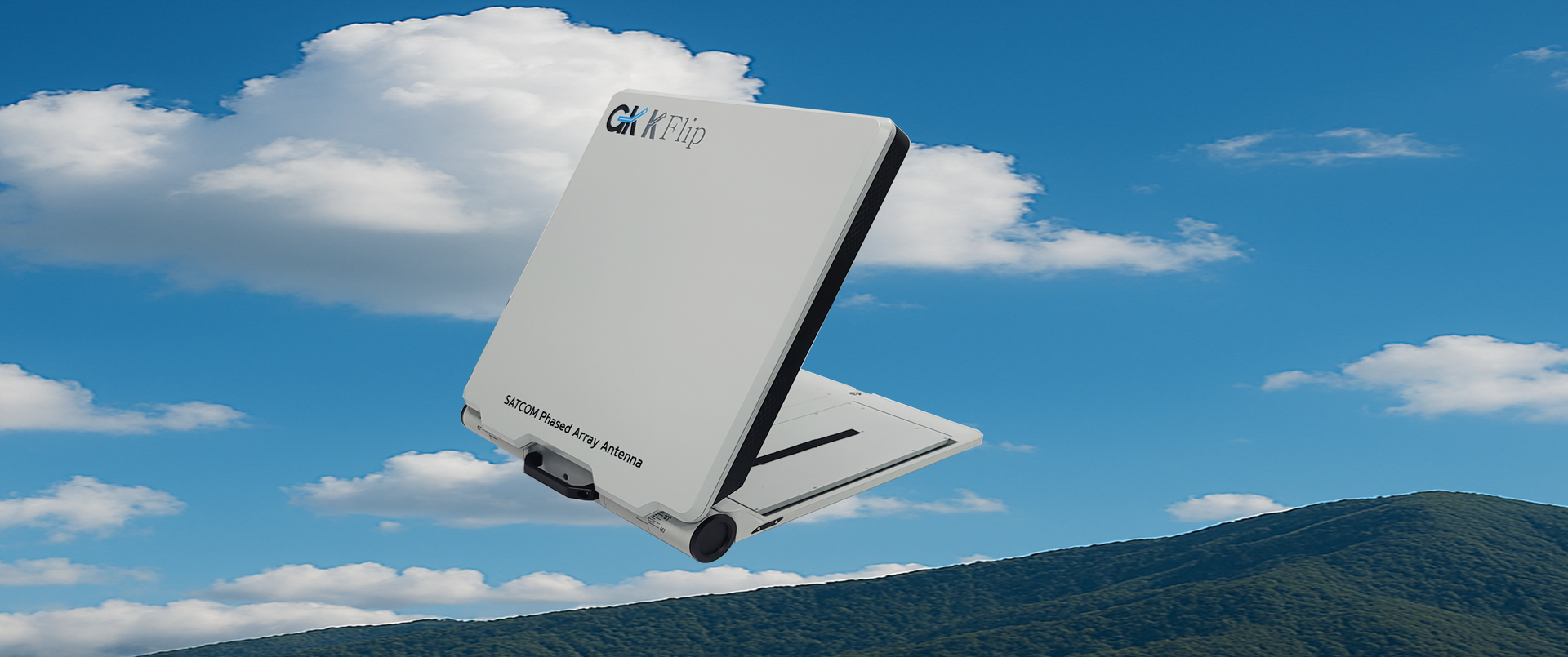

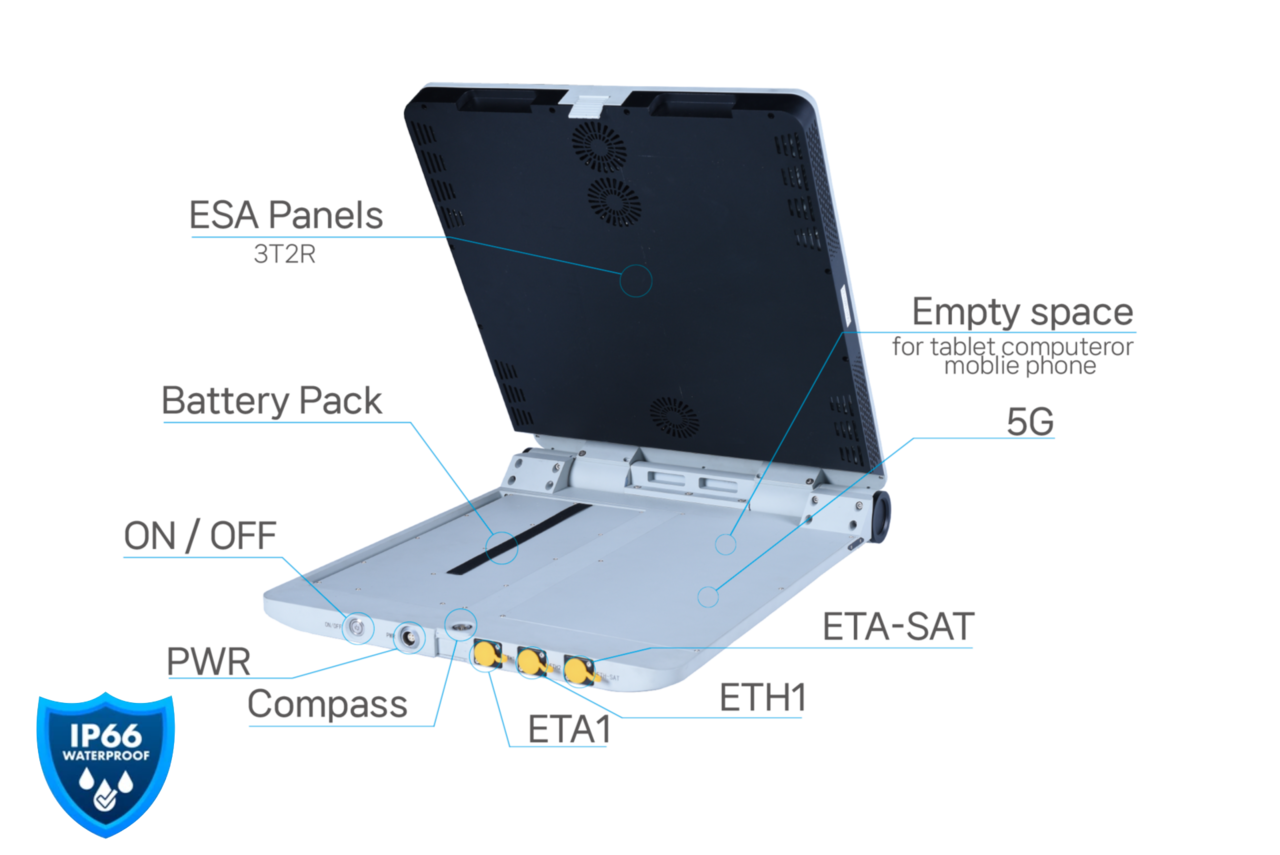

KONET Nova ESA Antenna
Ka-band portable man-pack phase array antenna
Versatile Mobility for Any Mission

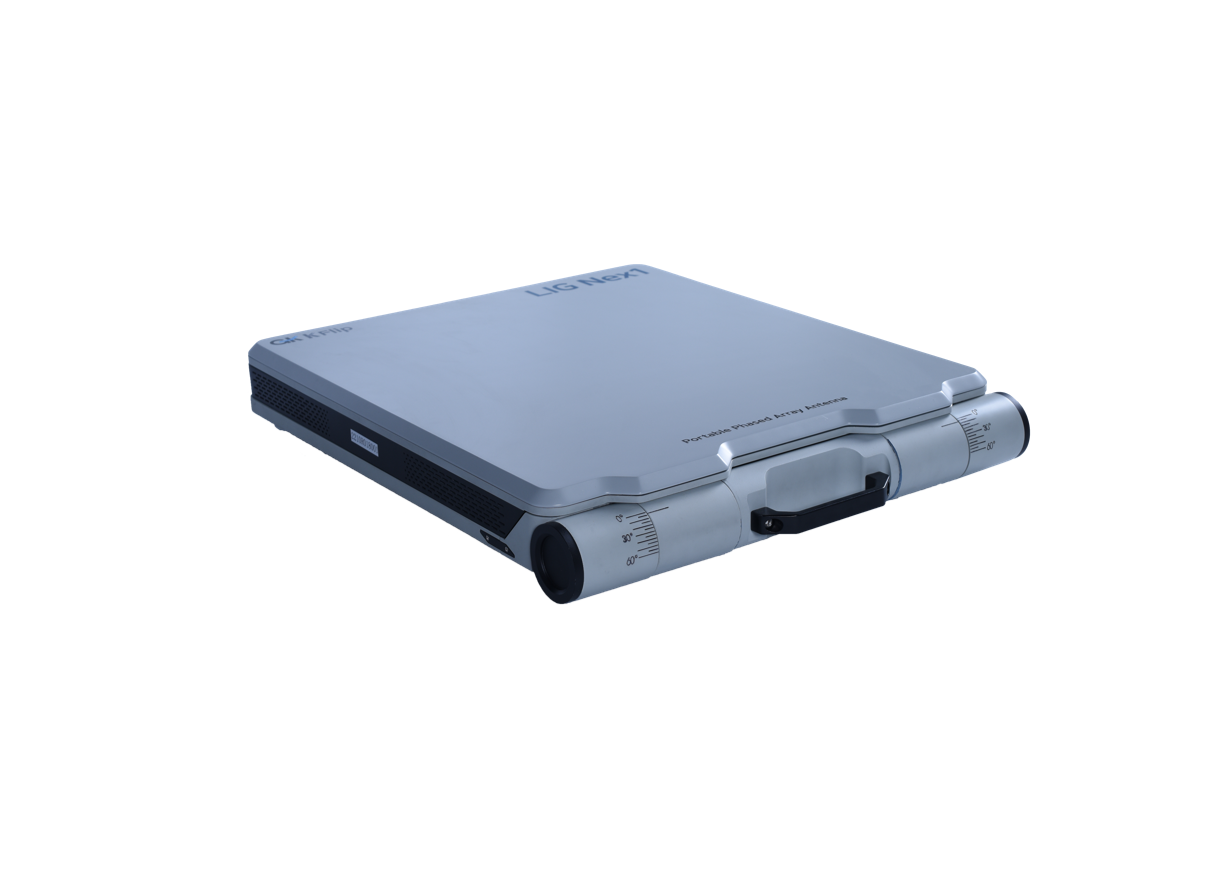

Fast installation on vehicles and vessels for seamless on-the-move operations. Can be carried as a Manpack to deliver connectivity in mountains, deserts, and remote terrain. A single portable terminal providing reliable satellite communication anywhere.
One BOX Terminal Solution
A modem board built-in and IMU, GPS can be integrated the antenna. The modem communicate through OpenAMIP, Fully automated service operation.
Military Products
This equipment is certified to MIL-STD-810G and carries an IP66 waterproof rating. Its operating temperature range is −40 to +60 °C, but prolonged exposure to high heat may cause battery degradation.
Battery built-in
This battery pack consists of an NCM (Li-NiCoMnO₂) battery. The device can operate on AC power when the battery is unavailable, and the battery pack is easily replaceable.
Versatile Mobility for Any Mission
Fast installation on vehicles and vessels for seamless on-the-move operations. Can be carried as a Manpack to deliver connectivity in mountains, deserts, and remote terrain. A single portable terminal providing reliable satellite communication anywhere.
One BOX Terminal Solution
A modem board built-in and IMU, GPS can be integrated the antenna. The modem communicate through OpenAMIP, Fully automated service operation.
Military Products
This equipment is certified to MIL-STD-810G and carries an IP66 waterproof rating. Its operating temperature range is −40 to +60 °C, but prolonged exposure to high heat may cause battery degradation.
Battery built-in
This battery pack consists of an NCM (Li-NiCoMnO₂) battery. The device can operate on AC power when the battery is unavailable, and the battery pack is easily replaceable.
RELATED RESOURCES
KONET PRODUCTS
VIDEOS

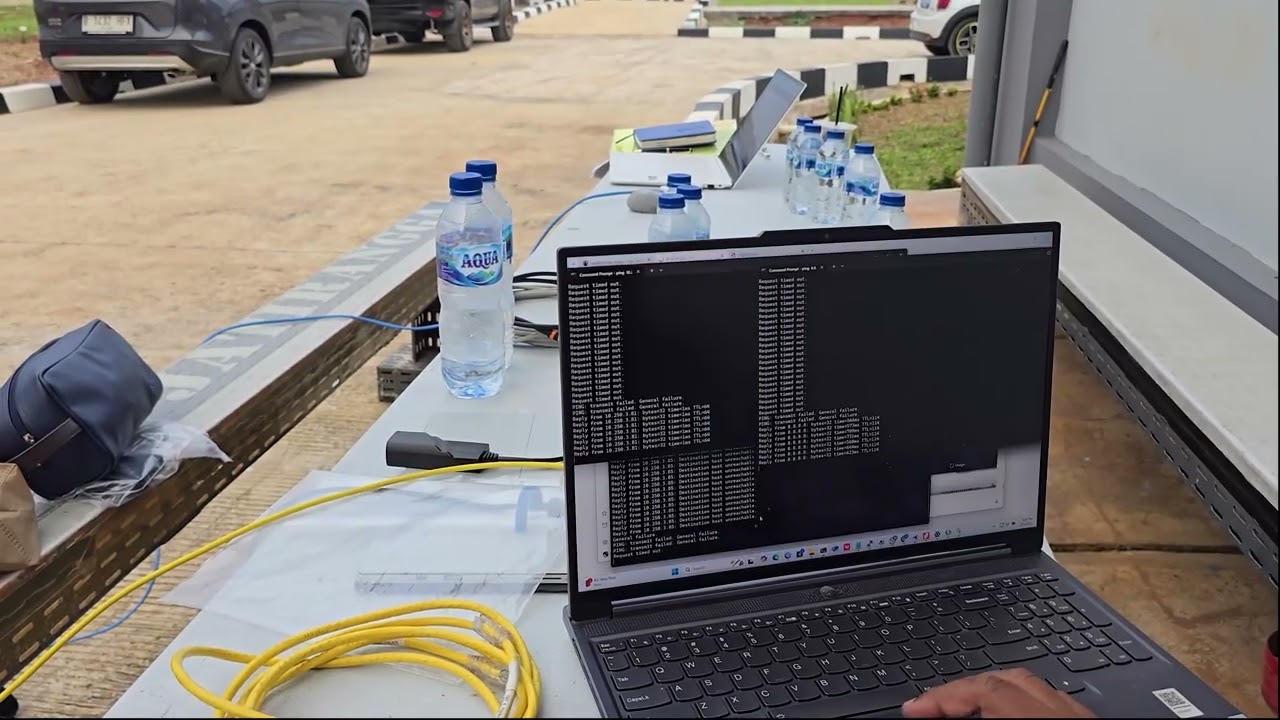

MiNi ESA Antenna Field Test
Global Konet MiNi flat-panel ESA antenna drone simulation test
GK ESA Antenna high performance on Yacht & Vehicle
Coast Guard Live YouTube Satellite Streaming During High-Speed U-Turn - COTM
Coast Guard live YouTube via Alpha2 during U-turn
Antenna Spec
• Model Name : K-Flip (GA460) / GA460M (Military)
• Antenna Type : Active Phased Electronically Steered Array Antenna
• Frequency : TX: 27.5–31 GHz, RX: 17.5–21.2 GHz
• Scanning Range : Azimuth: 0º–360º
Elevation: 30º–90º
• Local Oscillator Frequency :
TX: 26.05 / 27.05 / 28.05 / 29.05 GHz
RX: 16.25 / 17.25 / 18.25 / 19.25 GHz
• 10 MHz Reference : Rx/Tx port requires 10 MHz.
• Size (W x D x H) : 650 mm × 510 mm × 95 mm
• Weight : 21 kg (Built-in battery)
Ant Transmit/Receive Performance
• EIRP (Typical) : Circular : ≥44.2 dBW @90º @29 GHz
• G/T (Typical) : ≥ 10.1 dB/K @ 90° @ 19 GHz @ 60K
• Polarization : Circular L/R POL
• Cross Polarization : ≤ -30dB
• First Side Lobe : ≤ -15dB
• Satellite Tracking : DVB-S2
DVB-S2X Carrier Detection
• Tracking Mode : OTM Mode, OTM OpenAMIP , Manual Mode
• Modem(OpenAMIP) : Built-in iDirect iQ200, Gilat, Comtech, THISS (Can be customized)
• Communication Mode : Full Duplex

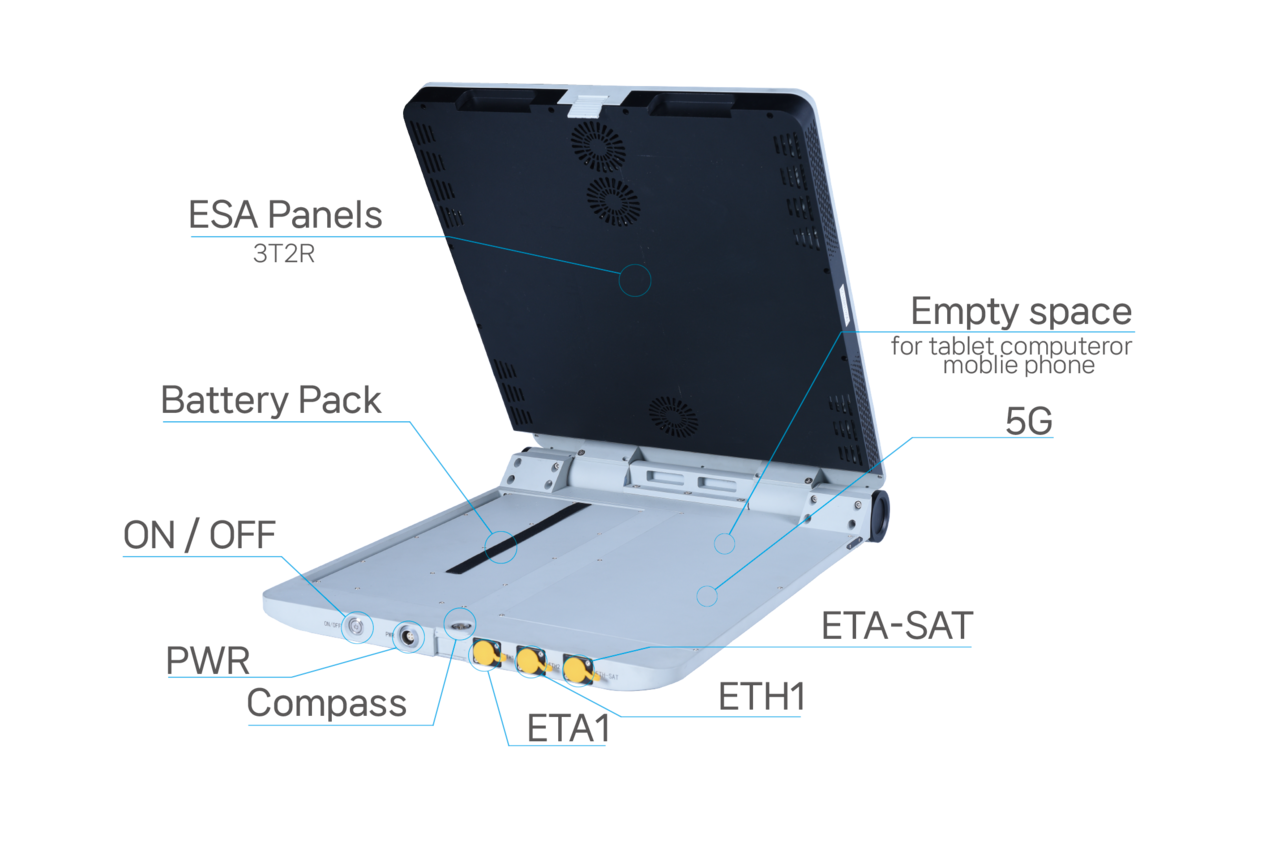

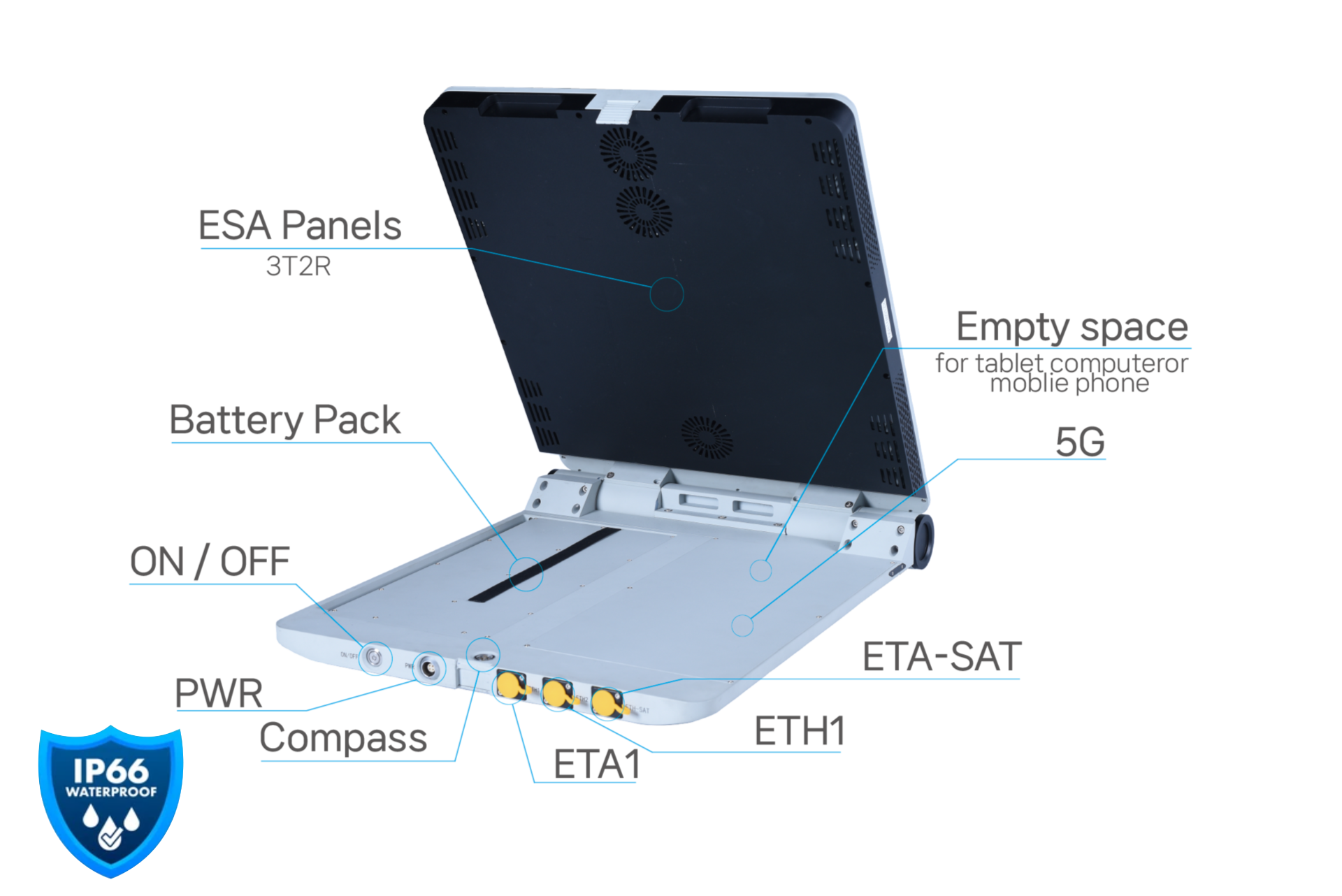

Interface Features
• Interface Ports : Power (1), LAN Ports (2), RF (SMA) ports (2)
• ACU Interface : Ethernet RJ45, WiFi (Option)
• Built-in modem : YES
Power Supply Requirement
• Rated Voltage : 24 V (19–31 V)
• Power Consumption : ≤ 450 Watt (Peak)
• Battery : Li-NiCoMnO₂ Battery(NCM)
Ant environmental performance
• Pol Switching Time : ≤ 0.3ms
• Tracking Speed : 110°/sec
• Tracking Accuracy : 0.2°
• Operating Temp : -40 ºC – +60 ºC
• Water-proof : IP66
• Military Standard : MIL-STD-810G (GA460M)
RELATED RESOURCES
RELATED
PRODUCTS
Alpha Antenna
Alpha2 Jumbo Antenna
Alpha2 Antenna
MiNi Antenna
Nabi Antenna
Nova Antenna
Omega2 Antenna
Aerospace Antenna
GU24 Terminal
GA24 Terminal
QFPA50 Antenna
VIDEO
MiNi ESA Antenna Field Test
Global Konet MiNi flat-panel ESA antenna drone simulation test

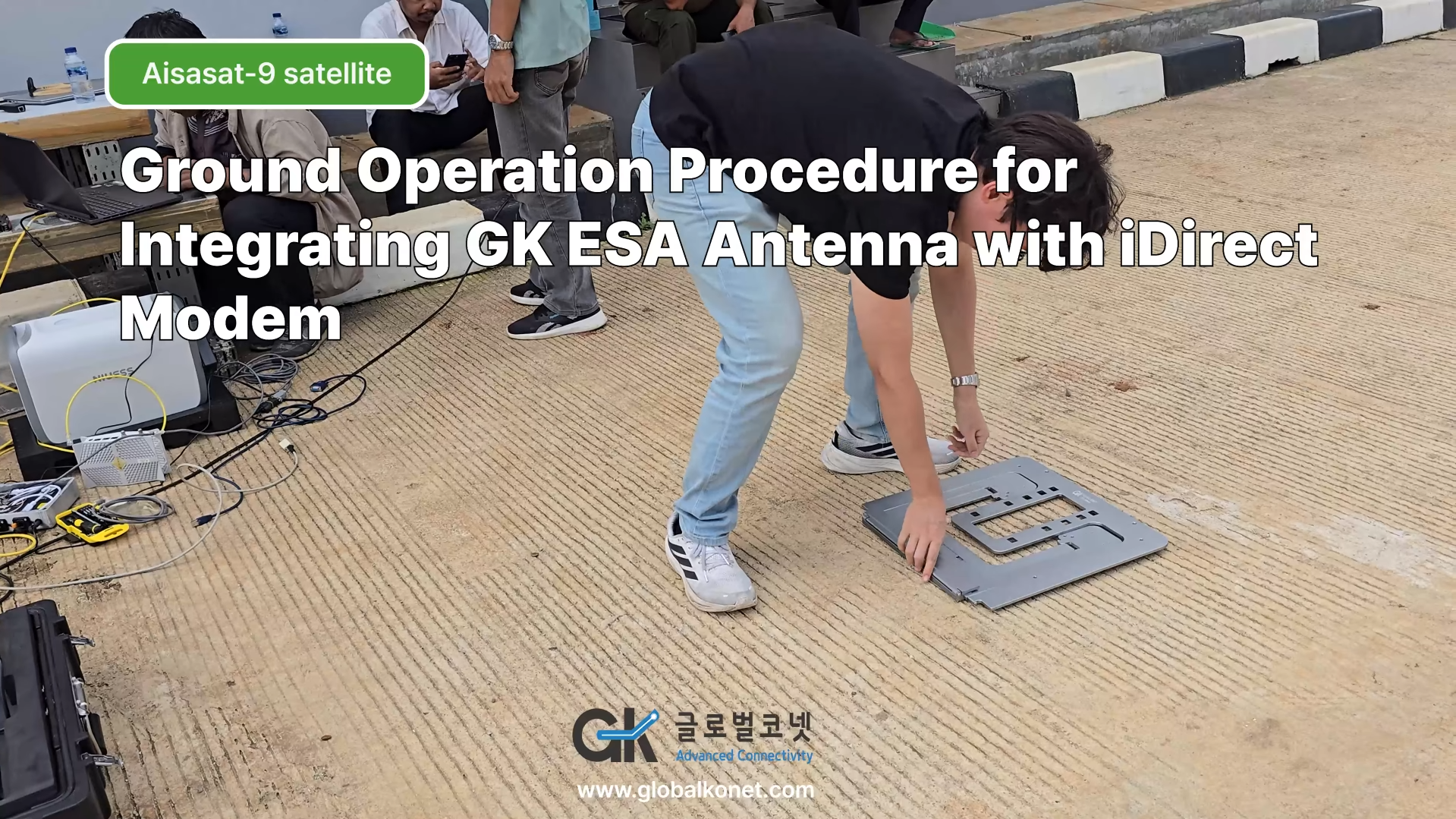

iDirect IQ200 and GK ESA Integration Procedure
