Phase TV is a faster, more reliable TVRO antenna.
In addition, it is easy to carry with its small weight and compact size, and has great advantages for installation and movement. It guarantees easy, fast, and high-quality TV broadcasting anywhere in vehicle, train, and ship transportation.
Small size, small weight
Phase Tv can provide fast tracking time and stable service on the go, along with the convenience of moving with small size and less weight.
High-quality satellite broadcasting
without interruption even in remote areas
With the development of communication networks, modern people can watch the media they want anywhere. Our products specialize in providing high-quality satellite broadcasting that is uninterrupted in vehicles, ships, and remote areas.
Customizable offering of
a wide range of features
Our products can provide a variety of services customized to customers, including LTE, iridium, and GPS functions.
Phase TV is a faster, more reliable TVRO antenna.
In addition, it is easy to carry with its small weight and compact size, and has great advantages for installation and movement. It guarantees easy, fast, and high-quality TV broadcasting anywhere in vehicle, train, and ship transportation.
Small size, small weight
Phase Tv can provide fast tracking time and stable service on the go, along with the convenience of moving with small size and less weight.
High-quality satellite broadcasting
without interruption even in remote areas
With the development of communication networks, modern people can watch the media they want anywhere. Our products specialize in providing high-quality satellite broadcasting that is uninterrupted in vehicles, ships, and remote areas.
Customizable offering of
a wide range of features
Our products can provide a variety of services customized to customers, including LTE, iridium, and GPS functions.
RELATED RESOURCES
PRODUCT SHEETS
VIDEOS

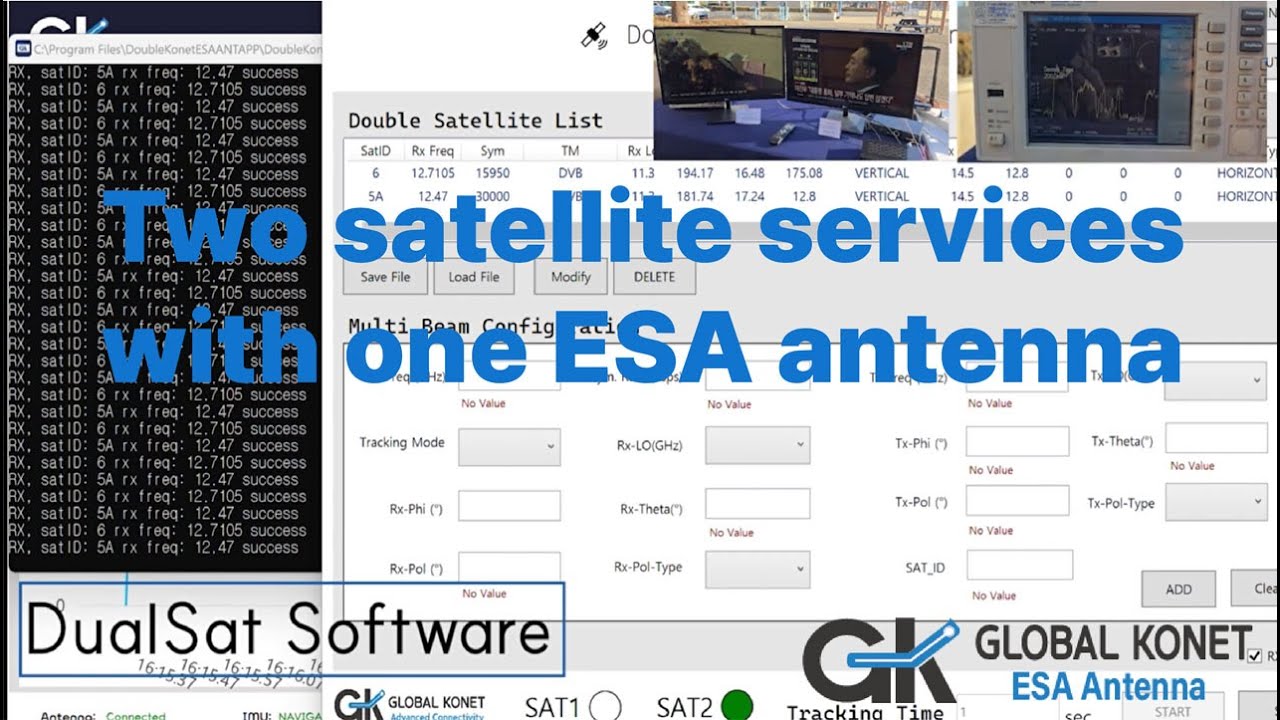

ESA Antenna OTM demo
2023 Washington Satellite Show in USA
2023 Singapore ICT Exhibition
Antenna Frequency Spec (एंटीना आवृत्ति विनिर्देश)
• Model : Phase TV
• Satellite Band : GEO/MEO/LEO Extend Ku Band
• frequency Range : 10.70 ~ 12.70GHz
• Output frequency(L-band) : 0.95 ~ 2.15GHz
Ant Transmit/Receive Performance (ऐन्टेना प्रेषण/प्राप्ति प्रदर्शन)
• G/T : ≥7.5dB/K @0º
• Capture time in starting process : ≤3min
• Capture time in working process : ≤30sec
• Time for recover locking again : ≤5min, <8sec>5min, <30sec
Ant Electronic Beam Tracking (एंटीना इलेक्ट्रॉनिक बीम ट्रैकिंग)
• Scanning Range : Azimuth : 0° ~ 360° , off-axis 0° ~ 60°
• Polarization : Linear
• X-pol : ≥30dB@0º
• Tracking Speed : 100°/sec
• Tracking Accuracy : ≤0.2°
Ant environmental performance (एंटीना पर्यावरण प्रदर्शन)
• Rated Voltage : 12V
• Weight : ≤5kg
• Operation Temperature : -40℃ ~ +60℃
• Dimensions : 430mm X 300mm X 30mm(without connector)
360˚ Around View
RELATED RESOURCES
PRODUCT
SHEETS
VIDEO
KONET Mpack2
KONET Mpack2
Related Solutions
Antenna Frequency Spec (एंटीना आवृत्ति विनिर्देश)
Ant Transmit/Receive Performance (ऐन्टेना प्रेषण/प्राप्ति
• Model : Phase TV
• Satellite Band : GEO/MEO/LEO Extend Ku Band
• Frequency Range : 10.7 ~ 12.70GHz
• Output frequency(L-band) : 0.95 ~ 2.15GHz
• G/T : ≥7.5dB/K @0º
• Capture time in starting process : ≤3min
• Capture time in working process : ≤30sec
• Time for recover locking again : ≤5min, <8sec>5min, <30sec
Ant Electronic Beam Tracking (एंटीना इलेक्ट्रॉनिक बीम ट्रैकिंग)
Ant environmental performance (एंटीना पर्यावरण प्रदर्शन)
• Scanning Range : Azimuth : 0° ~ 360°, off-axis 0° ~ 60°
• Polarization : Linear
• X-pol : ≥30dB@0º
• Tracking Speed : 100°/sec
• Tracking Accuracy : ≤0.2°
• Rated Voltage : 12V
• Weight : ≤5kg
• Operation Temperature : -40℃~ + 60℃
• Dimensions : 430mm X 300mm X 30mm (without connector)
