KONET Nova ESA Antenna
Ka-band electron beam steering ESA antenna, Man Pack service
KONET Nova ESA Antenna
Ka-band electron beam steering ESA antenna, Man Pack service

KONET Nova ESA Antenna

Ka-band portable man-pack phase array antenna

Nova ESA antenna is a KA-band portable antenna that is compact and provides stable service.


The electronic beam steering satellite antenna function has an LTE interworking function, so LTE communication networks can be used during normal times and communication networks can be linked through satellite communication in mountains or remote areas.

It has a built-in battery inside, so it can provide satellite services for a long time without power supply in an external environment.

Ensure connectivity in disaster situations


Our products can shine in extreme situations. It guarantees connection in any situation, such as disasters and battles, as well as mountain and sea.

Differentiated antennas

with customized services

Weight under 22kg (all options added) Low cost and easy customer service antenna through independent development can maximize your satisfaction.


High utilization, depending on the situation

A device for LTE connection is built-in, so satellite connection and LTE communication can be selected according to the situation.

The built-in internal battery pack also ensures that there is no communication problem even if there is no electricity.

We will begin sales in July 2025. If you provide us with your requirements, we will be able to incorporate them.


Konet Nova ESA antenna is a KA-band portable antenna that is compact and provides stable service.


The electronic beam steering satellite antenna function has an LTE interworking function, so LTE communication networks can be used during normal times and communication networks can be linked through satellite communication in mountains or remote areas.

It has a built-in battery inside, so it can provide satellite services for a long time without power supply in an external environment.

Ensure connectivity in disaster situations


Our products can shine in extreme situations. It guarantees connection in any situation, such as disasters and battles, as well as mountain and sea.

Differentiated antennas

with customized services


Weight under 22kg (all options added) Low cost and easy customer service antenna through independent development can maximize your satisfaction.

High utilization, depending on the situation


A device for LTE connection is built-in, so satellite connection and LTE communication can be selected according to the situation.

The built-in internal battery pack also ensures that there is no communication problem even if there is no electricity.

RELATED RESOURCES

KONET PRODUCTS

VIDEOS

ESA Antenna OTM demo

2023 Washington Satellite Show in USA

2023 Singapore ICT Exhibition

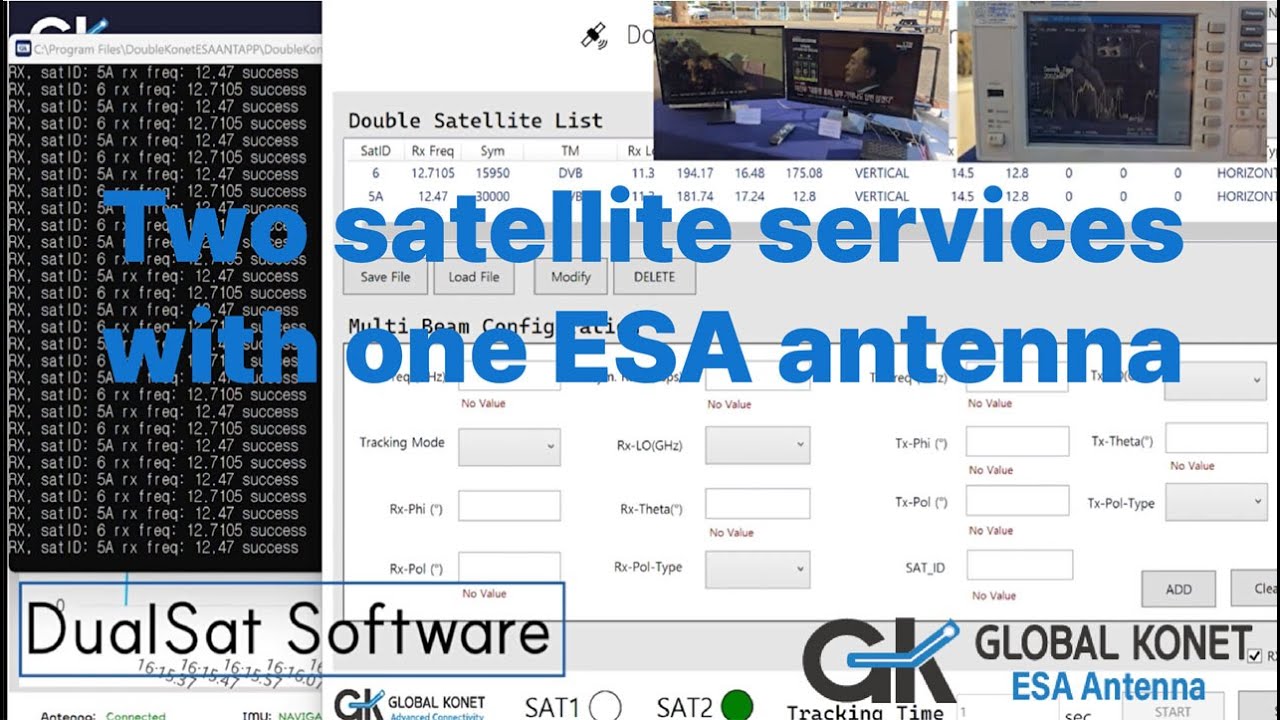

Dualsat Live demo

2024 Washington Satellite Show

2024

Antenna Frequency Spec

•  Model : Konet Nova (GA330)

•  Satellite Band : GEO/MEO/LEO Ka Band

•  Frequency Range : TX: 27.20 ~ 31.00GHz

                                      RX: 17.50 ~21.20GHz

•  LO : TX: 28/29GHz

           RX: 16.25/17.25//18.25/19.25/20.25GHz

Ant Transmit/Receive Performance

•  EIRP : ≥ 49dBW @0°@29.25GHz

•  G/T : ≥ 10dB/K @0°@19.45GHz

•  Manual : Stop Beam Service

•  맨 팩(배낭형) : Light mode service

Ant Electronic Beam Tracking

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 0° ~ 90°

•  Polarization : Circular LHCP/RHCP Pol (Switchable)

•  Cross Polarization : ≤ 110dB/K@90°

•  Tracking Speed : 100°/sec

•  Tracking Accuracy : ≤ 0.2°

Ant environmental performance

•  Initial dynamic satellite acquisition : ≤ 3min

•  MAX Power : 12V@ ≤ 450W

•  Weight : ≤ 21kg(46.2lbs)

•  Dimension : 650 x 510 x 95mm

                          (25.59 x 20.08 x 3.74Inch)

•  Operation Temperature : -40℃ ~ +55℃

•  IP Level : IP66

RELATED RESOURCES

RELATED

PRODUCTS

Alpha Antenna

Alpha2 Jumbo Antenna

Alpha2  Antenna

MiNi  Antenna

Nabi Antenna

Nova Antenna

Omega2 Antenna

Aerospace Antenna

GU24 Terminal

GA24 Terminal

QFPA50 Antenna

VIDEO

KONET Mpack2

KONET Mpack2

Related Solutions

Portable

Antenna Frequency Spec

Ant Transmit/Receive Performance

•  Model : Konet Nova (GA332)

•  Satellite Band : GEO/MEO/LEO Ka Band

•  Frequency Range : TX: 27.50 ~ 31.00GHz

                                      RX: 17.70 ~21.20GHz

•  LO : TX: 28/29GHz

            RX: 16.25/17.25/18.25/19.25/20.25GHz

•  EIRP : ≥ 52dBW@0º29.25GHz

•  G/T : ≥ 10dB/K @0º19.45GHz

•  Man Pack : Portable Light mode service

•  Vehicle Service: OTM(Open AMIP) Support

•  Marine Service : OTM(Open AMIP) Support

•  Sat Modem : Built-in modem(IQ200, UHP, Gilat) or external

•  GPS : External GPS usage option

Ant Electronic Beam Tracking

Ant environmental performance

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 0° ~ 90°

•  Polarization : Circular LHCP/RHCP Pol (Switchable)
•  Cross Polarization : axis ratio ≤ 110@90°

•  Tracking Speed : 100°/sec

•  Tracking Accuracy : ≤ 0.2°


•  Initial dynamic satellite acquisition : ≤ 3min

•  MAX Power : 24V(10-14V) @≤ 450W

•  Weight : ≤ 17.5kg(38.58lbs)

•  Dimension : 976× 510 ×95 mm(38.54 x 20.08 x 3.74 Inch)

•  Operation Temperature : -40℃ ~ + 55℃
•  IP Level : IP66
