IOT GA24 Antenna
Ka-band small beam power phased array antenna
IOT GA24 Antenna
Ka-band small beam power phased array antenna

IOT GA24 Antenna

Ka-band small beam power phased array antenna

Internet of Things (IOT) satellite communication solution

tailored to the era of the 4th industrial revolution

GA24 is a KA-band IOT model that provides satellite communication solutions for IoT in time for the era of the 4th industrial revolution.
Various forms of model composition are possible using the IOT model.


The Importance of IOT to

Increase Industrial Efficiency

The importance of IOT is emerging not only in simple residential environments but also in industrial environments. Why don't we use our company's antenna to increase real-time industrial efficiency with smooth communication on the industrial IOT?


Easy customization

with modular design

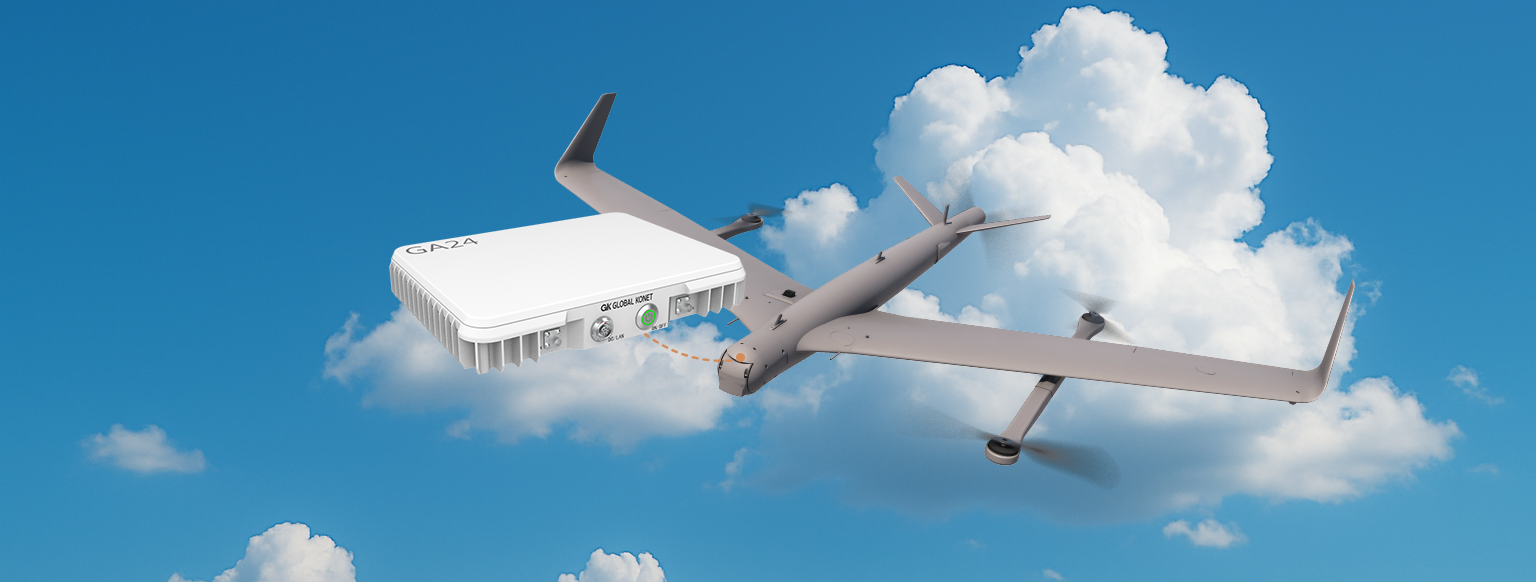

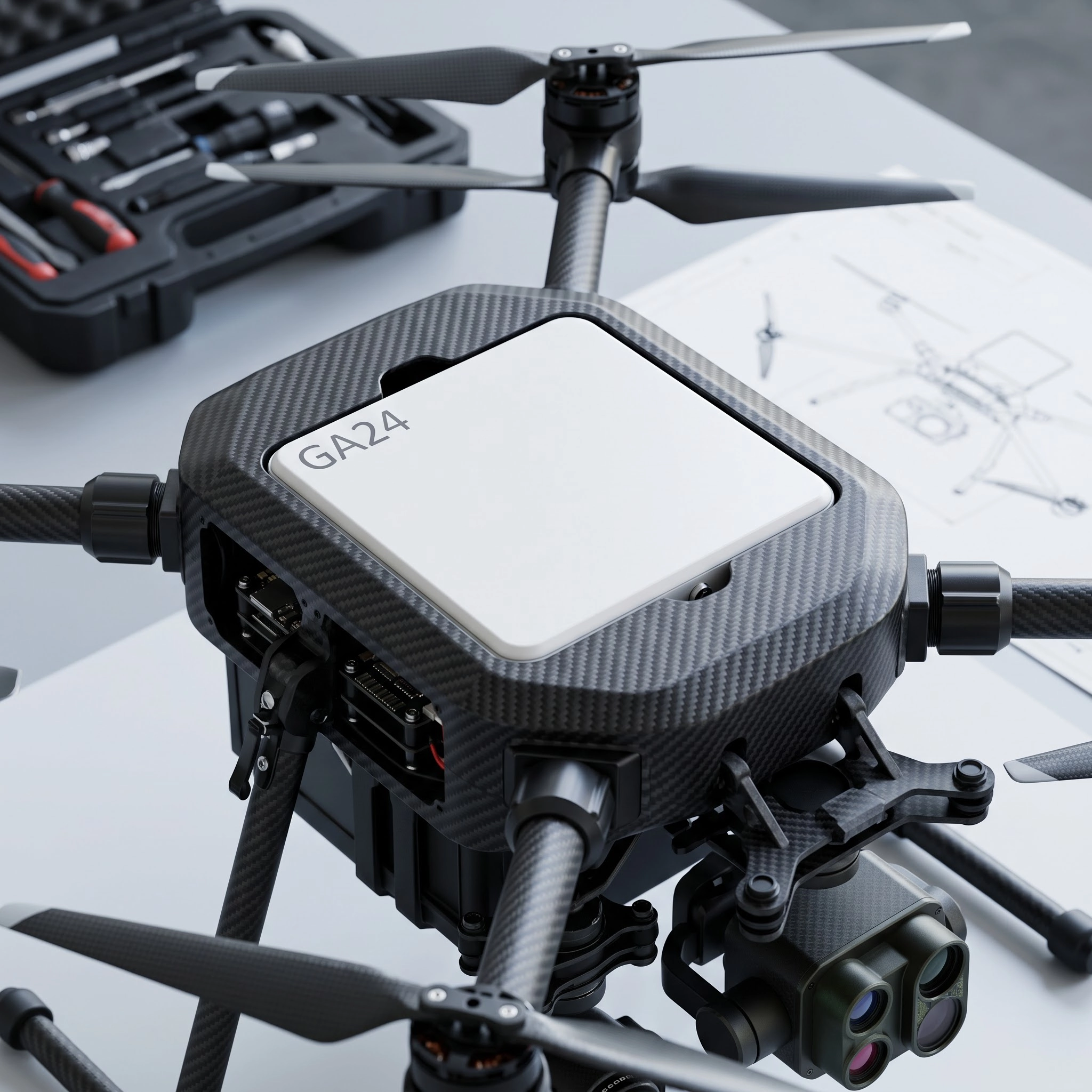

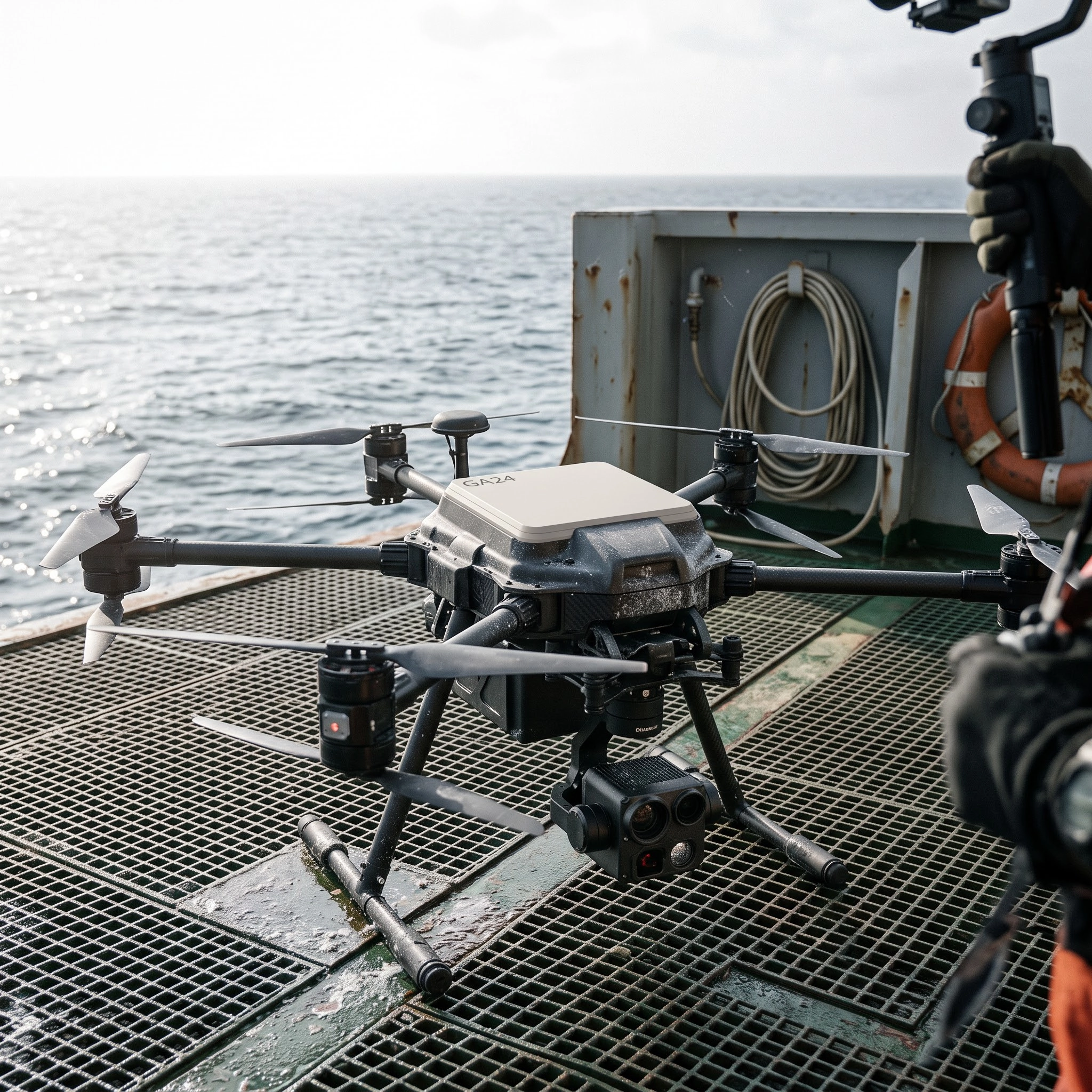

Manufacturing through a modular design makes it very easy to customize. This allows other products, including drones, to use their antenna solutions.

Internet of Things (IOT) satellite communication solution

tailored to the era of the 4th industrial revolution


GA24 is a KA-band IOT model that provides satellite communication solutions for IoT in time for the era of the 4th industrial revolution.

Various forms of model composition are possible using the IOT model.

The Importance of IOT to

Increase Industrial Efficiency


The importance of IOT is emerging not only in simple residential environments but also in industrial environments. Why don't we use our company's antenna to increase real-time industrial efficiency with smooth communication on the industrial IOT?

Easy customization

with modular design


Manufacturing through a modular design makes it very easy to customize. This allows other products, including drones, to use their antenna solutions.

RELATED RESOURCES

PRODUCT SHEETS


VIDEOS


ESA Antenna OTM demo

2023 Washington Satellite Show in USA

2023 Singapore ICT Exhibition

Basic information

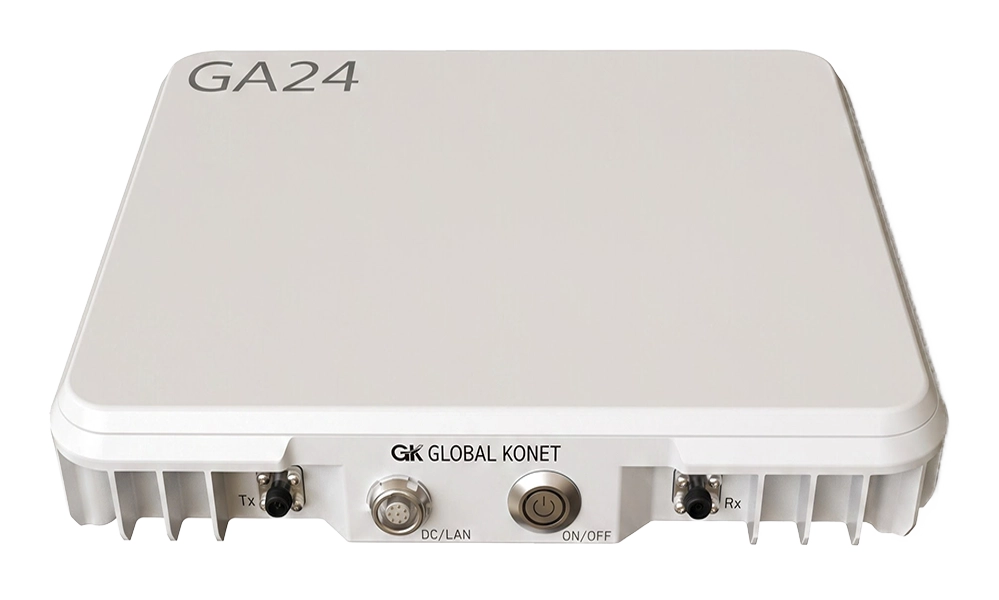

•  Model : GA24

•  Frequency Range : Ka Band

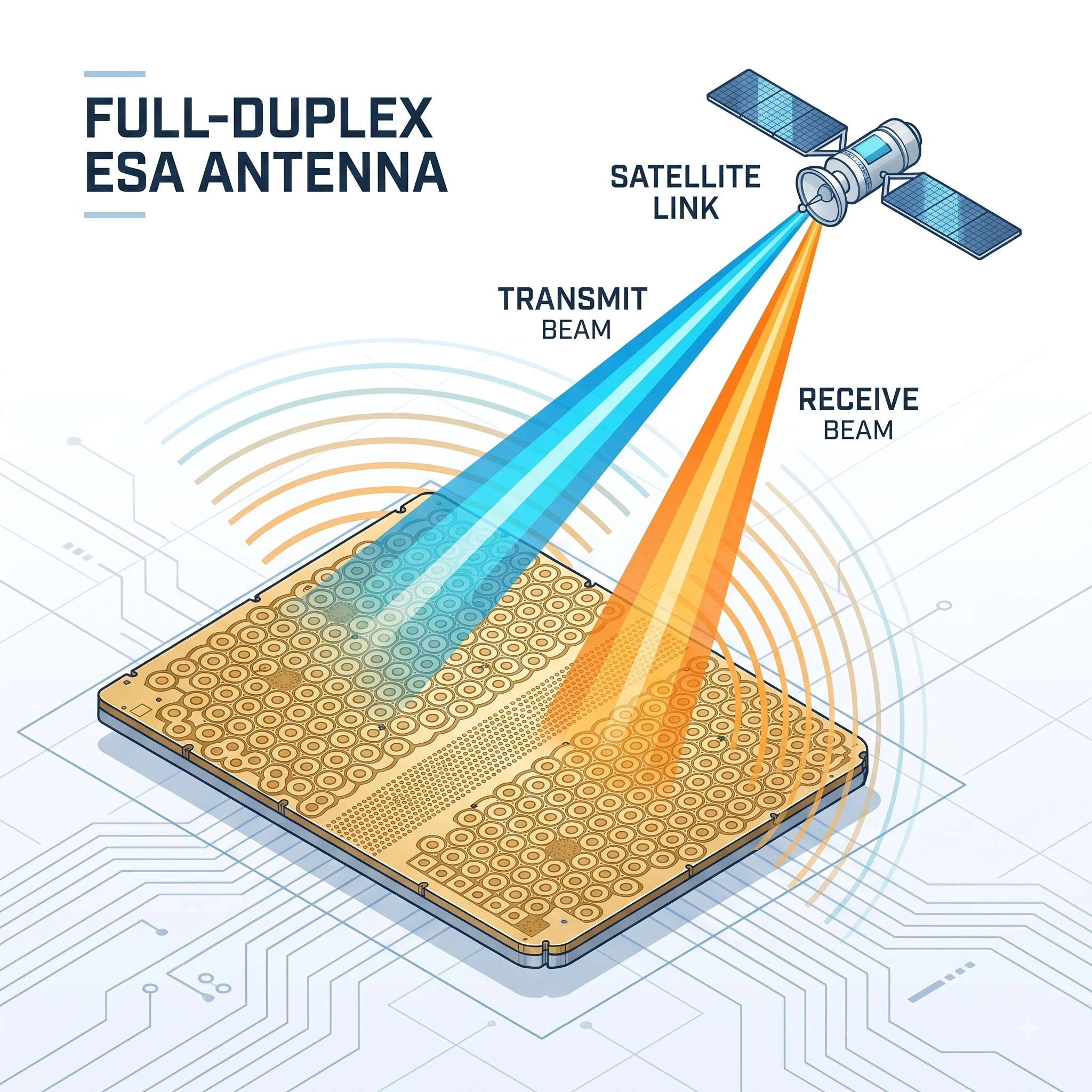

•  Antenna Type : Two-dimensional active phased array antenna

•  Operation Range : TX: 13.70 ~ 14.50GHz

                                     RX: 10.70 ~ 12.75GHz

Basic performance

•  G/T : ≥-1.5dB/K@90°@19.5GHz@60K

•  EIRP : ≥ 29dBw@90°@29.5GHz

•  Vehicle : Open AMIP Support

•  Marine : Open AMIP Support

Scanning information

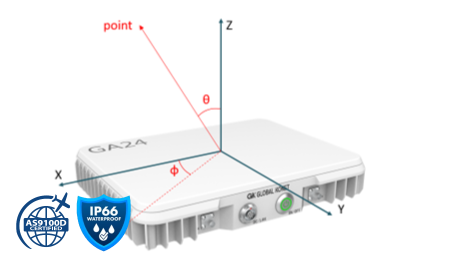

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 20° ~ 90°

•  Polarization : LHCP/RHCP

•  Pol Switching Time : <0.5ms

•  Beam Switching Time : ≤0.3ms

Operating performance

•  Rated Voltage : 12V

•  Product Size(W x D x H) : 330 x 245 x 40(mm)

•  Weight : ≤2.5kg

•  Operation Temperature : -40℃ ~ +55℃

•  Waterproof Rating : IP66

RELATED RESOURCES

RELATED

PRODUCTS


VIDEO

KONET Mpack2

KONET Mpack2


Related Solutions

Basic information

Basic performance

•  Model : GA24

•  Frequency Range : Ka Band

•  Antenna Type : Two-dimensional active phased array antenna

•  Operation Range : Tx: 27.50 ~ 31.0GHz

                                     Rx: 17.70 ~ 21.20GHz


•  G/T : ≥-1.5dB/K@90°@19.5GHz@60K

•  EIRP : ≥ 29dBw@90°@29.5GHz

•  Vehicle  : Open AMIP Support

•  Marine  : Open AMIP Support



Scanning information

Operating performance

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 20° ~ 90°

•  Polarization : LHCP/RHCP

•  Pol Switching Time : <0.5ms

•  Beam Switching Time : ≤0.3ms




•  Rated Voltage : 12V

•  Product Size(W x D x H)  : 330 x 245 x 40(mm)

•  Weight : ≤2.5kg

•  Operation Temperature : -40℃ ~ +55℃

•  Waterproof Rating : IP66
