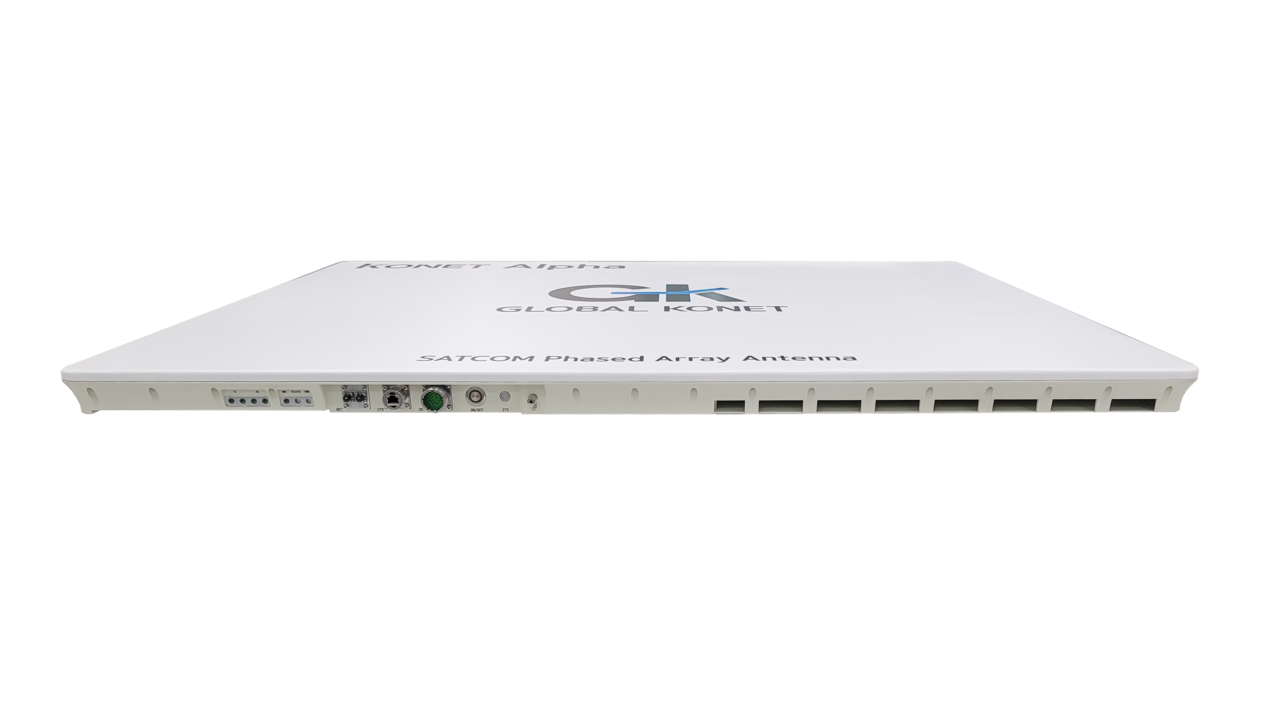

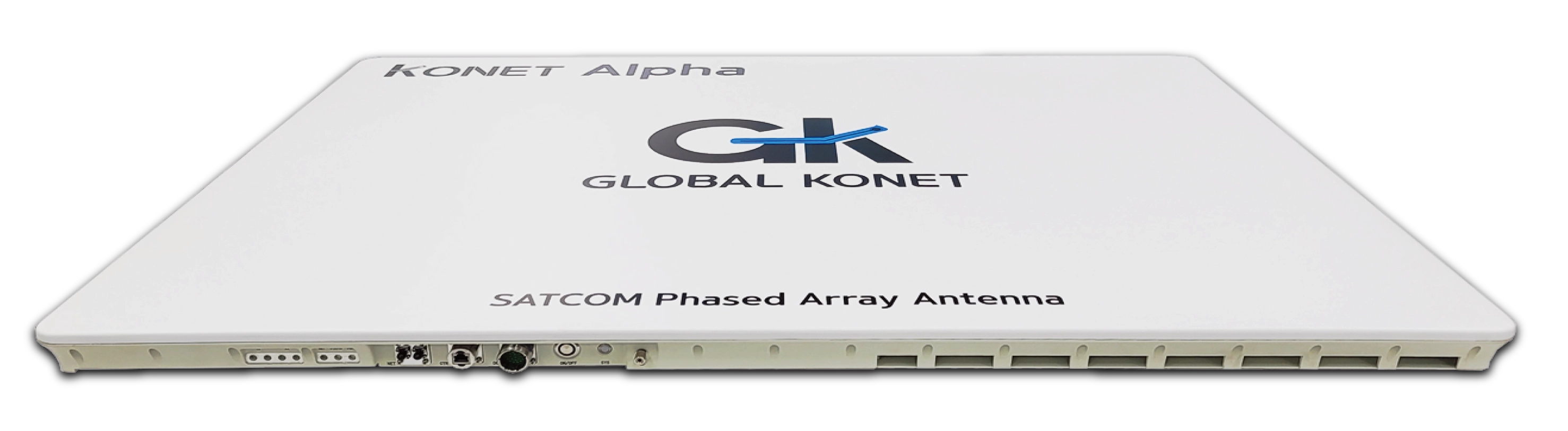

Alpha Antenna
Ku-band high-tech OTM phased array antenna
Alpha Antenna
Ku-band high-tech OTM phased array antenna

Alpha Antenna

Ku-band high-tech OTM phased array antenna

Alpha ESA is our best-performing antenna in existence.


Due to the low antenna gain of electronic beam steering, Alpha has demonstrated that it is also serviceable in geostationary satellites (GEO).

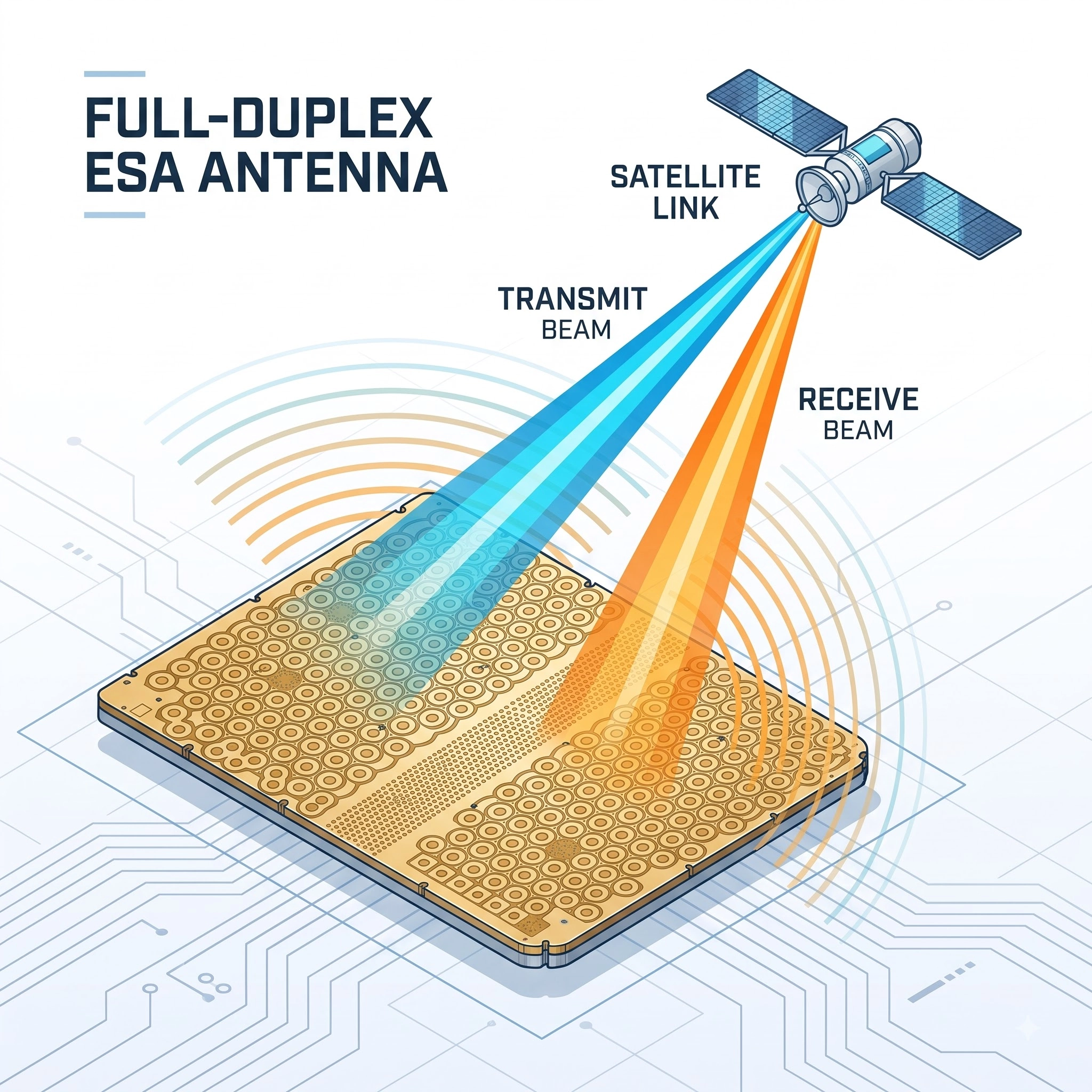

 Fast satellite connectivity over 100° per second

Faster connectivity and reliable communication

It supports faster connection and stable communication with fast satellite connection of more than 100° per second through electron beam scanning and easy beam tilting control through control software.

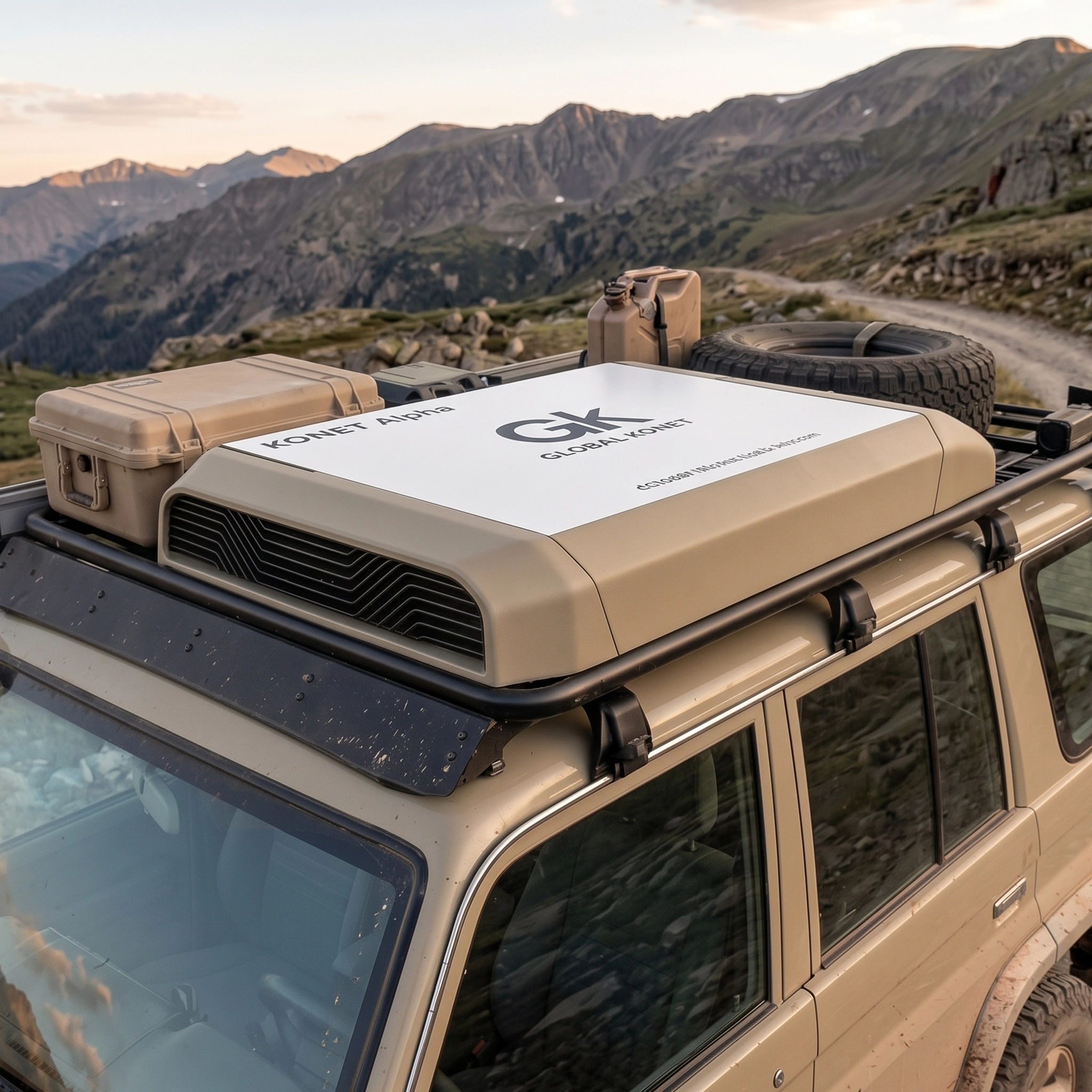

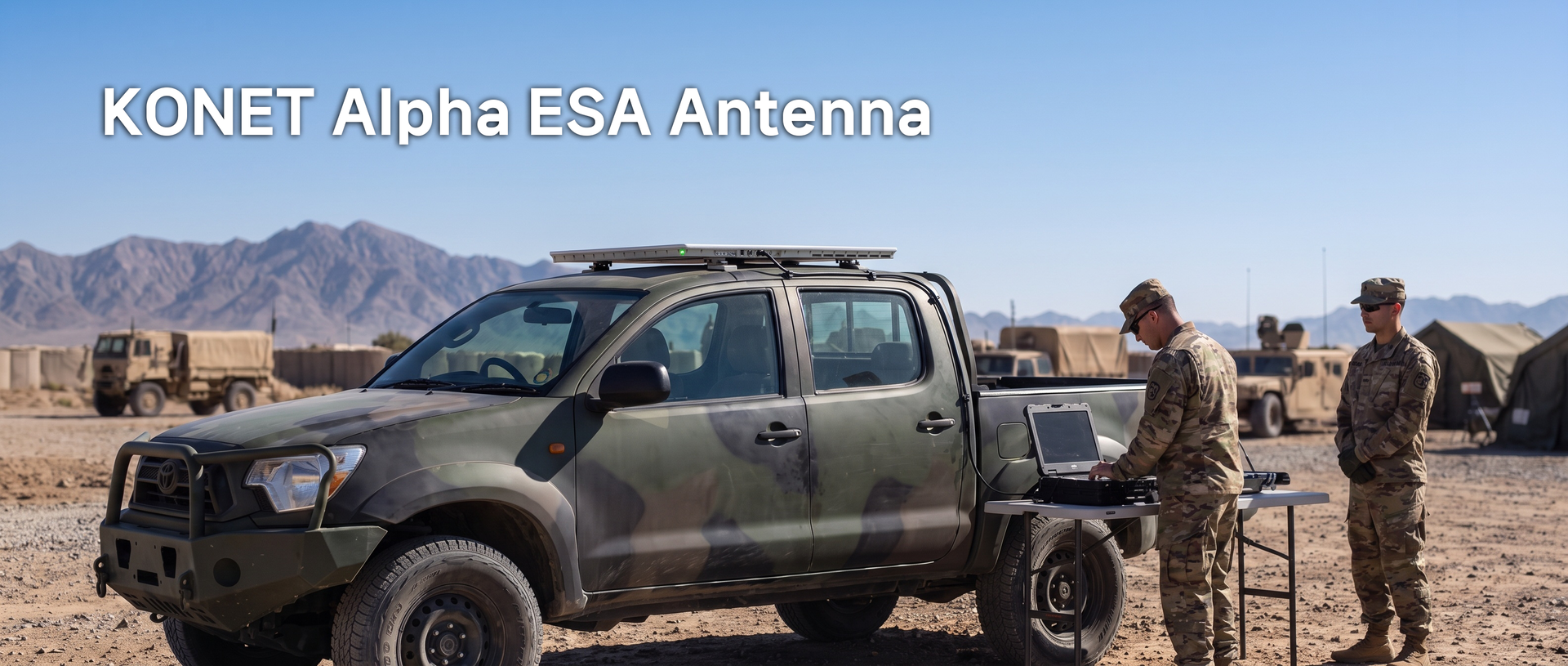

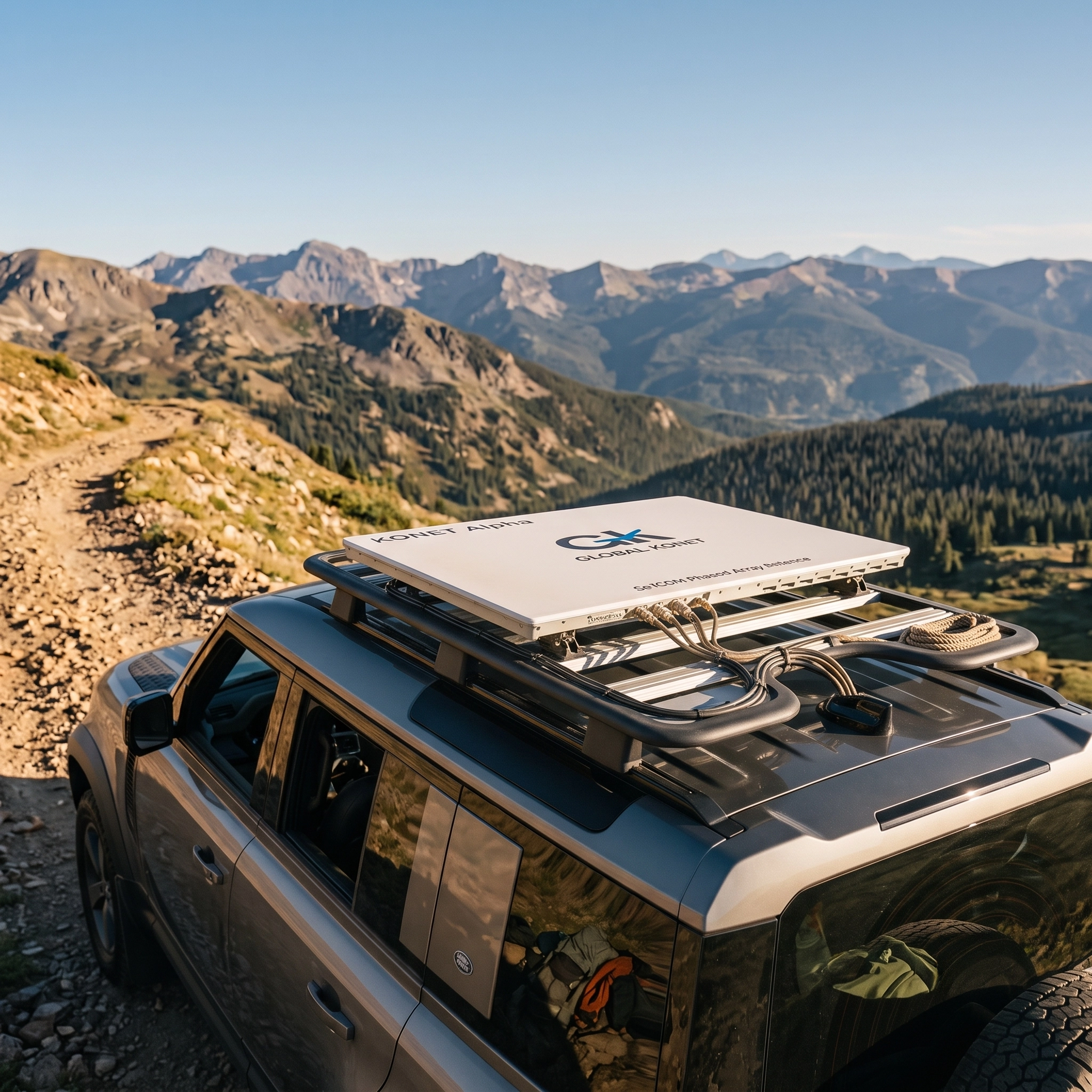

You can communicate on the go

Excellent communication network connection

With the development of 5G communication networks, customers want to provide communication networks anytime, anywhere. The OTM function boasts an excellent communication network connection that can communicate on the move from vehicles, ships, and aircraft.


Mechanical Failure

Secure service delivery

It supports more stable communication with faster satellite tracking and satellite switching of more than 100° per second through electron beam scanning suitable for low-orbit LEO communication. RF equipment such as mechanical motors and BUC can be removed, reducing mechanical failure pointers to provide safe service for a long time.

Alpha ESA is our best-performing antenna in existence.


Due to the low antenna gain of electronic beam steering, Alpha has demonstrated that it is also serviceable in geostationary satellites (GEO).

Fast satellite connectivity over 100° per second

Faster connectivity and reliable communication


It supports faster connection and stable communication with fast satellite connection of more than 100° per second through electron beam scanning and easy beam tilting control through control software.

You can communicate on the go

Excellent communication network connection


With the development of 5G communication networks, customers want to provide communication networks anytime, anywhere. The OTM function boasts an excellent communication network connection that can communicate on the move from vehicles, ships, and aircraft.

Mechanical Failure

Secure service delivery


It supports more stable communication with faster satellite tracking and satellite switching of more than 100° per second through electron beam scanning suitable for low-orbit LEO communication. RF equipment such as mechanical motors and BUC can be removed, reducing mechanical failure pointers to provide safe service for a long time.

RELATED RESOURCES

RELATED PRODUCTS


VIDEOS


ESA Antenna OTM demo

2023 Washington Satellite Show in USA

2023 Singapore ICT Exhibition

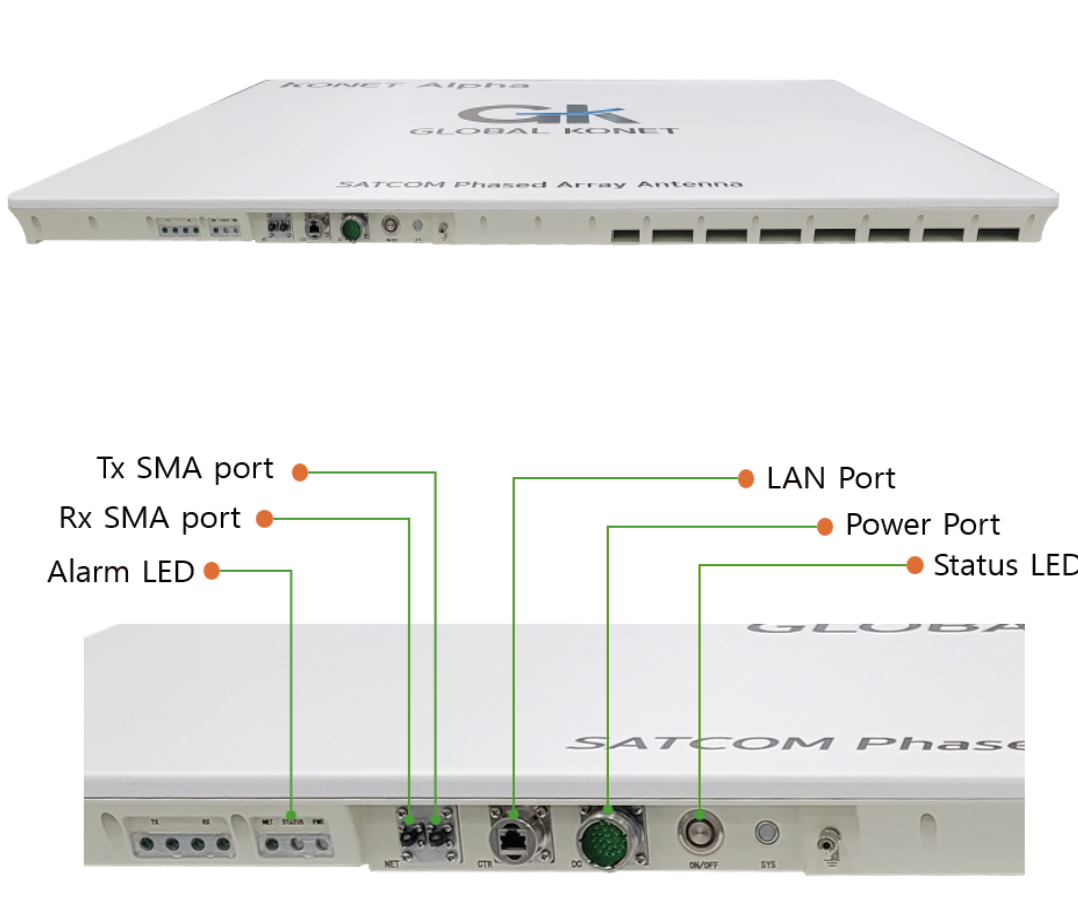

Basic information

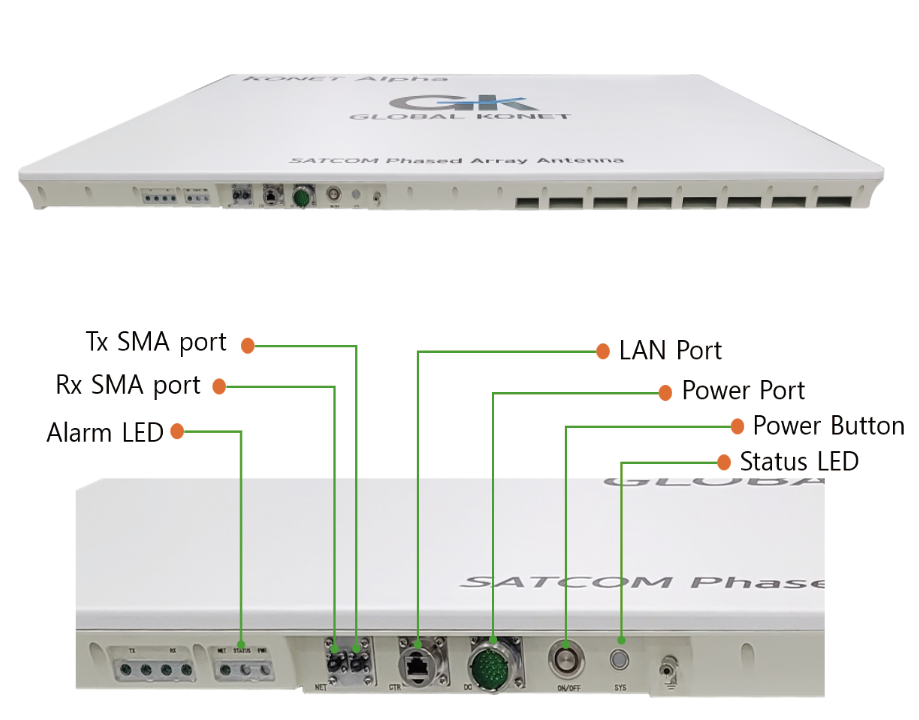

•  Model : Alpha (GU540)

•  Frequency Range  : Extend Ku Band

•  Operation Range  : TX: 13.70 ~ 14.50GHz

                                      RX: 10.70 ~ 12.75GHz

Basic performance

 EIRP (typical) : Linear Pol: ≥55dBW@0º@14.1GHz

                              Circular Pol: ≥52dBW@0º@14.1GHz

•  G/T(typical) : ≥14.5dB/K@0º@11.7GHz@80K
•  Circular Pol : ≥52dBW@0º@ 14.1GHz

•  Vehicle : Open AMIP Support

•  Marine : Open AMIP Support

Scanning information

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 20° ~ 90°

•  Polarization : Linear H/V or LHCP/RHCP Pol

•  Cross Polarization : ≤30dB

•  Pol Swithching Time : <0.5ms

•  Beam Switching Time : ≤0.3ms

Operating performance

•  Initial dynamic satellite acquisition :  ≤3 min

•  Rated Voltage : 28V(19V ~ 32V)

•  Weight : ≤43kg

•  Operation Temperature : -40℃ ~ +55℃

RELATED RESOURCES

RELATED PRODUCTS


VIDEO

KONET Mpack2

KONET Mpack2


Related Solutions

Basic information

Basic performance

•  Model : Alpha (GU540)

•  Frequency Range : Extend Ku Band

•  Operation Range : TX: 13.70 ~ 14.50GHz

                                     RX: 10.70 ~ 12.75GHz

•  EIRP (typical) : Linear Pol: ≥55dBW@0º@14.1GHz

                              Circular Pol: ≥52dBW@0º@14.1GHz

•  G/T(typical) : ≥14.5dB/K @0º@11.7GHz@80K

•  Circular Pol : ≥52dBW @0º@14.1GHz

•  Vehicle : Open AMIP Support

•  Marine : Open AMIP Support

Scanning Information

Operating performance

•  Scanning Range : Azimuth : 0° ~ 360° , Elevation 20° ~ 90°

•  Polarization : Linear H/V or LHCP/RHCP Pol

•  Cross Polarization : ≤30dB

•  Pol Swithching Time : <0.5ms

•  Beam Switching Time : ≤0.3ms

•  Initial dynamic satellite acquisition : ≤3 min

•  Rated Voltage : 28V(19 ~ 31V)

•  Weight : ≤43kg

•  Operation Temperature : -40°C ~ +55°C
